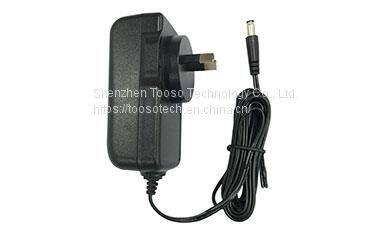

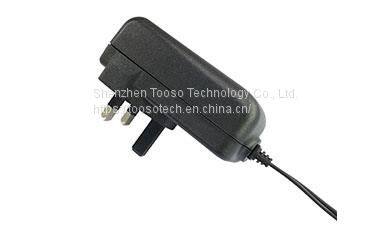

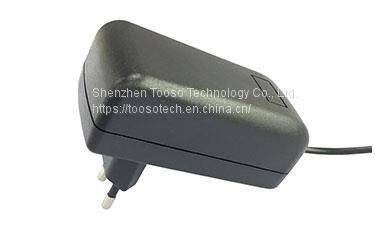

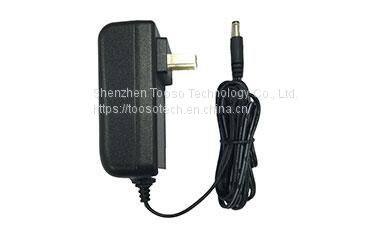

24W Plug-in Wall Switching Power Adapter
US$ 6 - 8
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
24W
Place of Origin:
China
Model Number:
AK24WG
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
10 days
Related Products
-
24W Wall Plug-in Desktop Switching Power AdapterUS$ 6 - 8MOQ: 200 Pieces -
24W Plug-in Wall Conversion Switching Power AdapterUS$ 6 - 8MOQ: 200 Pieces
-
36W Plug-in Wall Conversion Switching Power AdapterUS$ 7 - 8MOQ: 200 Pieces
-
36W Wall Plug-in Desktop Switching Power AdapterUS$ 7 - 8MOQ: 200 Pieces
-
36W Plug-in Wall Switching Power AdapterUS$ 7 - 8MOQ: 200 Pieces
Brand Name
24W
Place of Origin
China
Model Number
AK24WG
Connection
Plug In
Output Type
DC
Product number: AK24WG
Category: General
Shell type: wall plug-in type
Protection: overcurrent protection, overvoltage protection, short circuit protection
Meet the standards: EN60065,EN60950,EN61558
Applications:
Telecommunications equipment
Industrial equipment
Consumer electronic equipment
Office equipment
Model Spceifications | ||||
|---|---|---|---|---|
Model No. |
Output Voltage |
Output Current |
Volt Tolerance |
Power |
AK24WG |
4.1V~10.0V | 10~3600mA | 5% | 18.0W max |
| 10.1V~18.0V | 10~2400mA | 5% | 24.0W max | |
| 18.1V~26.0V | 10~1300mA | 5% | 24.0W max | |
| 26.1V~36.0V | 10~950mA | 5% | 24.0W max | |
| Input: | ||||
| Input Voltage Range: | 90~264Vac | |||
| Frequency: | 47~63Hz | |||
| Input Current: | 600mA | |||
| Leakage Current: | ≤3.5mA | |||
| Output: | ||||
| Load Regulation: | ≤5% | |||
| Ripple: | 1% Vp-p Max. for Output Voltage@ Full Load | |||
| Hold-up Time | ≥5mS @ Full Load | |||
| Turn On Delay Time | 3S Max @ 100Vac, full load | |||
| Rise Time | ≤200ms Max.@ 220Vac, full load | |||
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection | |||
| Safety Approvals: | ||||
| UL cUL CE GS CCC FCC SAA NoM-NYCE PSE VCCI KC EAC BSMI INMETRO S-MARK BIS PSB CB | ||||
| Efficiency | DoE LevelⅥ | |||
| Safety Standard | EN60065, EN60950, EN61558 | |||
| MTBF | 300,000 Calculated Hours at 25ºC , by Telcordia SR-332 | |||
| Environmental: | ||||
| Operating Temp: | 0℃to +40℃ | |||
| Operating Humidity: | 10 to +90℃RH | |||
| Storage Temp: | -40℃to +70℃ | |||
| Storage Humidity: | 10 to +90℃RH | |||
| Mechanical: | ||||
| AC Input Plug: | CCC,US,PSE,BS,CE,SAA | |||
| DC Output Plug: | Universal output plug system | |||
| Package: | ||||
| CTN: 120pcs per ctn | ||||
| N.W: | ||||
| G.W: | ||||
| Application Scope: | ||||
| Telecommunication Devices | ||||
| Industrial Equipments | ||||
| Consumer Electronic Devices | ||||
| Office Facilities | ||||
| Dimension: | ||||
| L*W*H: mm | ||||
| Weight:0.120kg | ||||

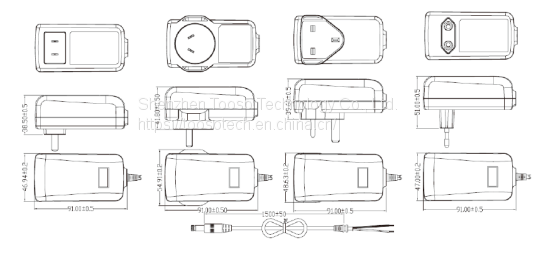

| Outline Drawing： | ||||
| ||||
