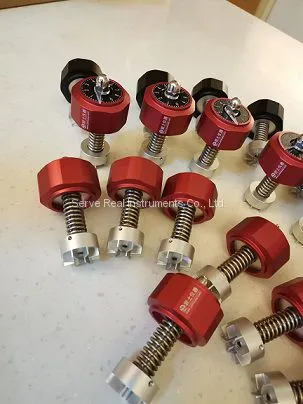

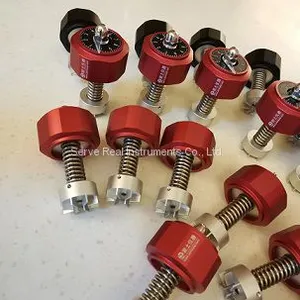

Pocket Vane Shear Test Set ASTM D8121/8121M In-situ Soil Test Instrument
US$ 300 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Serve Real
Place of Origin:
China
Model Number:
TSJ-1M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
Portable Vane Shear Test Set In-situ Soil Test EquipmentUS$ 1500 - 2000MOQ: 1 Set -
Automatic Soil Consolidation Test EquipmentUS$ 10000 - 30000MOQ: 1 Set
-
High Quality 3-gang Consolidation Test MachineUS$ 1000 - 1500MOQ: 1 Set
-
CBR Testing Machine BS 1377-4, ASTM D1883US$ 2000 - 3000MOQ: 1 Set
-
Mechnical Soil Compactor, Soil Compaction MachineUS$ 1300 - 2000MOQ: 1 Set
Brand Name
Serve Real
Place of Origin
China
Model Number
TSJ-1M
Power
Other, Manual
Usage
Other, Soil shear strength test
Model: TSJ-1M
Standards: ASTM D8121/8121M
Composition

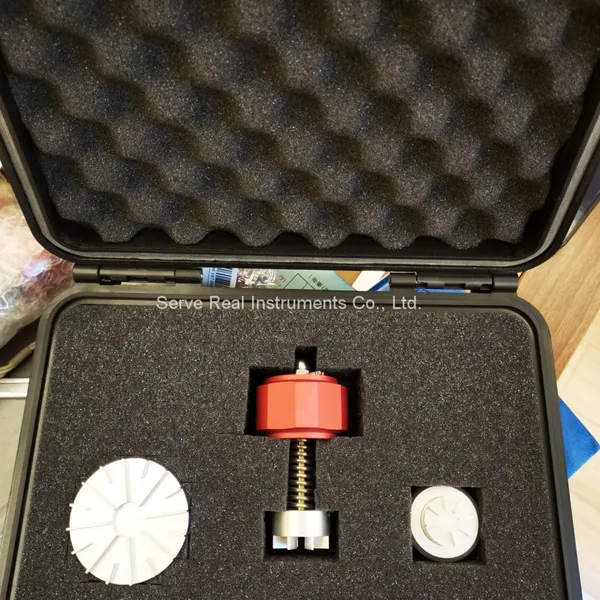

The whole set of instrument consists of 1 spring torsion meter, 3 cross heads of different sizes and 1 allen wrench. Using three different heads, the test range is 0~0.2, 0~1, 0~2.5kg/cm2, the dial scale is divided into 50 scales, and the test accuracy is better than 5%.
Features
1. More Portable with whole set weight around 0.8kg
2. Precision integrated cross board head for longer tooling life
3. All metal structure, durable and cost-effective
4. Separate packing boxes, easy to carry and better protection
Specifications
Code | Dia. /mm | Measure range /kg/cm2 | Multiplier |
A | 25.5 | 0~1 | 1 |
B | 19 | 0~2.5 | 2.5 |
C | 48 | 0~0.2 | 0.2 |
