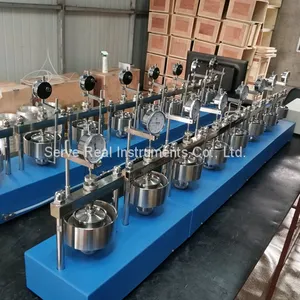

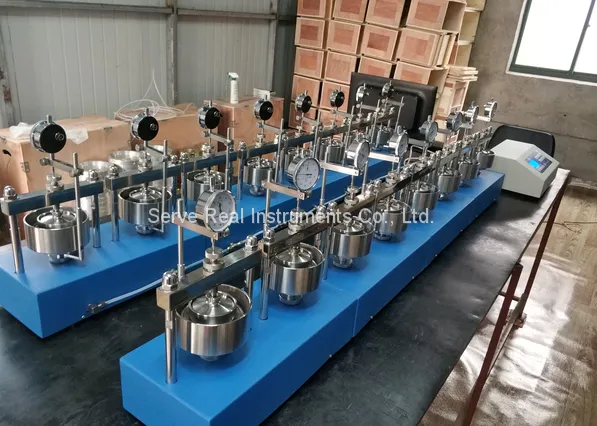

The consolidation test machine is used to test the compressive strength of soil under vary load and
confined condition, the system is constructed of consolidation tester,
pneumatic controller, multi-channel communication converter, data acquisition set.
Specifications
Output pressure: Middle pressure 0-4.8KN(0-1600Kpa); high pressure 0-9.6KN(0-3200Kpa)
Deviation: 0-100Kpa, ≤±1Kpa; 100-3200Kpa; relative deviation≤±1.0%
Sensitivity: Middle pressure ≤1Kpa; high pressure: ≤0.5Kpa
Sample area: 30cm2(dia.61.8mm),50cm2(dia.79.8mm)
Pneumatic pressure control range: 0-9Mpa
Zero point free adjustment, loading time ≦1s
Power supply: AC 220V±10%, 50hz
Test stations: 2,4,6,8,10.......32
Features
Containers, beam, vertical post, screw all made of SUS material, compact size, light in weight, fast joint connection, easy assemble and disassemble, unique dual piston design, can guarantee the sensitivity and accuracy of output force.
Pneumatic controller:
The pressure stabilized system uses large flow high quality proportional pressure regulator, quick reaction, good linearity, no mechanical movement, high reliability, long tooling life.
Automatic reset, automatic balance the weight of container and soil sample.
