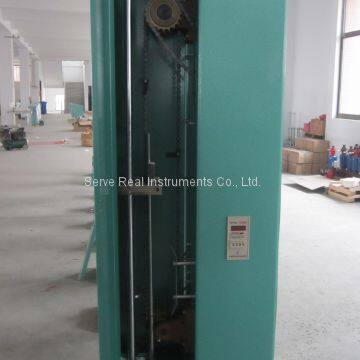

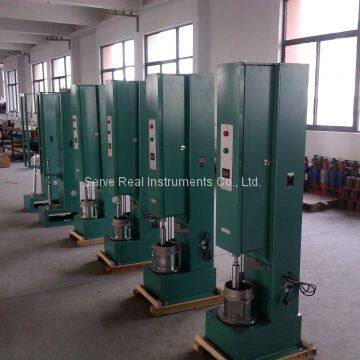

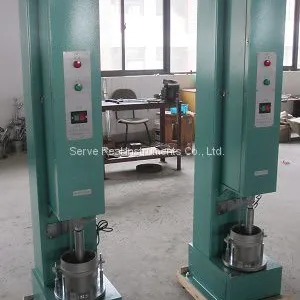

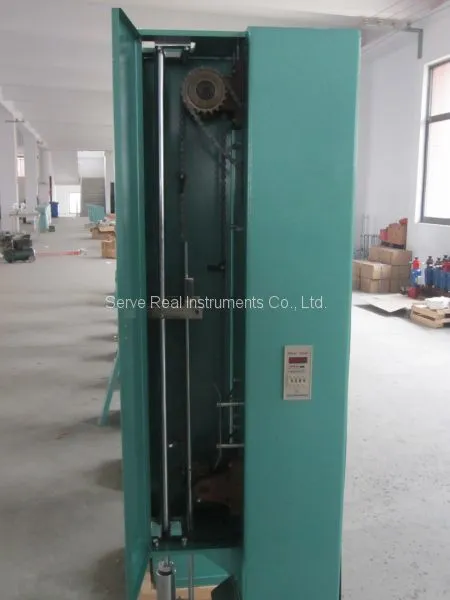

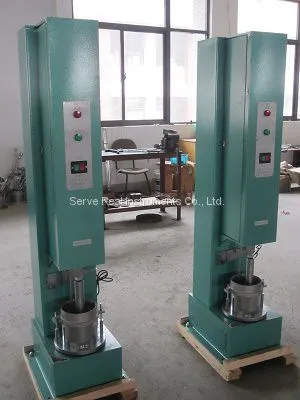

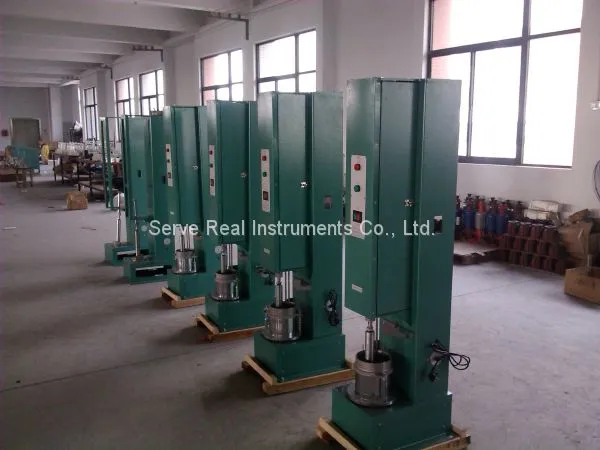

This soil compaction equipment is used to make CBR and rebound modulus specimen in laboratory, digital display counter, key parts are made in mold punching process, highly improves the stability. Features automatic control of compaction process. Easy operation, uniform compaction, good specimen forming.
Specifications
Spec. | Standard 1 | Standard 2 |
Heavy compaction test | Rammer weight 4.5kg, fall height 457mm, compaction mold size Φ152x116mm, collar size 152x50mm
| Rammer weight 4.5kg, fall height 450mm, compaction mold size 152x170mm, collar size 152x50mm |
Light compaction test | Rammer weight 2.5kg, fall height 305mm, compaction mold size Φ102x116mm, 152x50mm, collar size 102x50mm | Rammer weight 2.5kg, fall height 300mm, compaction mold size Φ100x127mm, collar size 100x50mm |
Rammer diameter | Φ51mm | Φ50mm |
Compaction times | 30times/min 30times/min | |
Power supply | AC 220V, 50HZ | |
Accessories list
Item | TDJS-1A (Standard 1) | TDJS-1B (Standard 2) | ||
Spec. | Qty | Spec. | Qty | |
4.5Kg rammer | Φ51mm fan-shaped | 1pc | Φ50mm | 1pc |
Φ50mm fan-shaped | 1pc | |||
2.5Kg rammer | Φ51mm | 1pc | Φ50mm | 1pc |

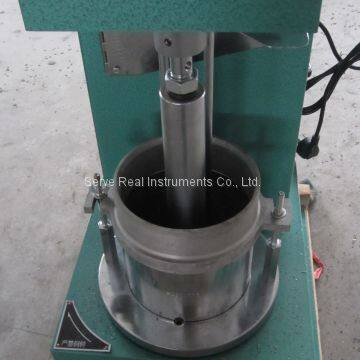

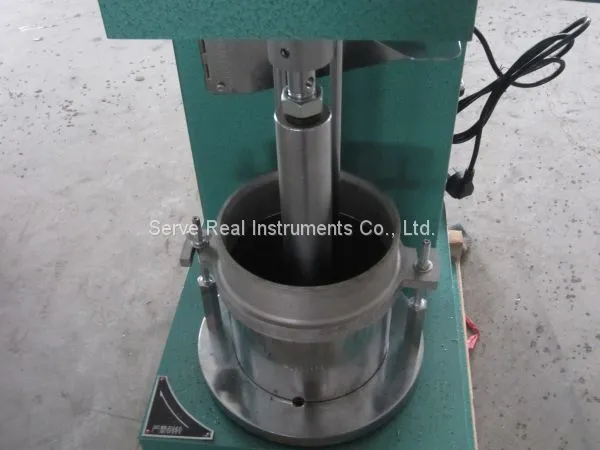

Compaction mold | Φ152x116mm | 1pc | Φ152x170mm | 1pc |
Φ102x116mm | 1pc | Φ100x127mm | 1pc | |
Collar | Φ152 x 50mm | 1pc | Φ152 x 50mm | 1pc |
Φ102 x 50mm | 1pc | Φ100 x 50mm | 1pc | |
Pad | / | / | Φ150 x 50mm | 1pc |
Column pull rod | 1set | Long & short 1ea | ||
Lining ring | 1pc | 1pc | ||
Chain hook | 3pcs | 3pcs | ||
Shovel, spanner | 1ea | 1ea | ||
