Portable Vane Shear Test Set In-situ Soil Test Equipment
US$ 1500 - 2000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Serve Real
Place of Origin:
China
Model Number:
TSJ-1B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
Automatic Soil Consolidation Test EquipmentUS$ 10000 - 30000MOQ: 1 Set -
High Quality 3-gang Consolidation Test MachineUS$ 1000 - 1500MOQ: 1 Set
-
CBR Testing Machine BS 1377-4, ASTM D1883US$ 2000 - 3000MOQ: 1 Set
-
Mechnical Soil Compactor, Soil Compaction MachineUS$ 1300 - 2000MOQ: 1 Set
-
Sand Cone Density Set, Sand Replacement Density ApparatusUS$ 50 - 100MOQ: 1 Set
Brand Name
Serve Real
Place of Origin
China
Model Number
TSJ-1B
Power
Other, Manual
Usage
Other, Soil shear strength test
Model: TSJ-1B
The portable vane shear tester is used to directly test the undrained shear strength of clay and remolded soil at the engineering site. It is a geotechnical in-situ testing instrument.

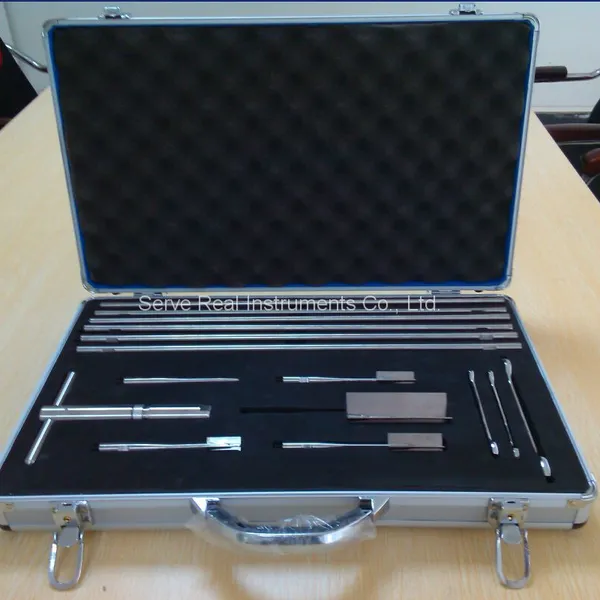

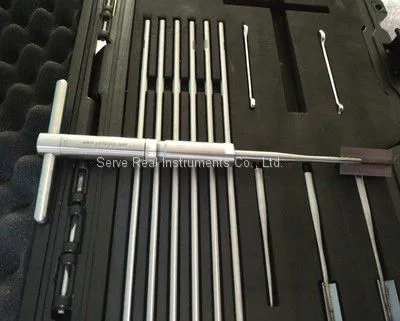

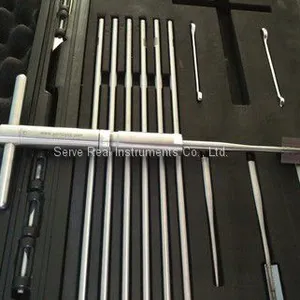

The whole set of instrument consists of 1 spring torsion meter, 6 extension rods, 3 cross heads of different sizes, 1 head rod and 3 wrenches. The maximum test depth is 3m, the maximum test range is 0-260kPa, and the test accuracy is better than 10%.
Specifications
No. |
Dimensions /mm |
Measure range /kPa |
Index |
A |
20 x 40 |
0 to 130 |
1 |
B |
16 x 32 |
0 to 260 |
2 |
C |
25.4 x 50.8 |
0 to 65 |
0.5 |
Optional |
50.8 x 101.6 |
0 to 8.125 |
0.0625 |
