Description

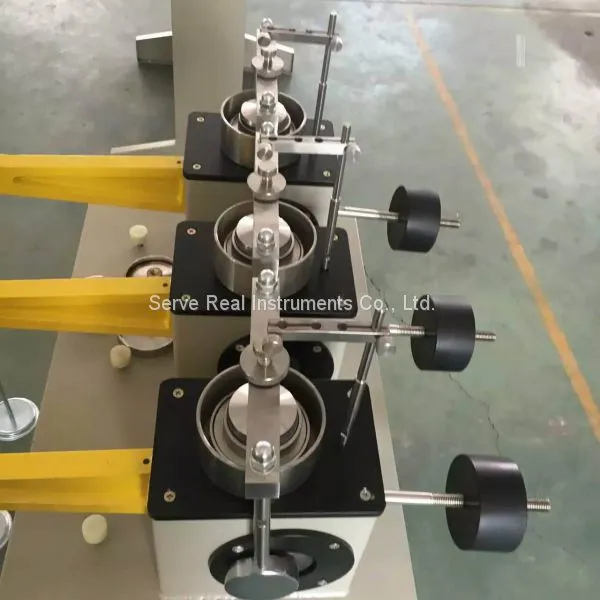

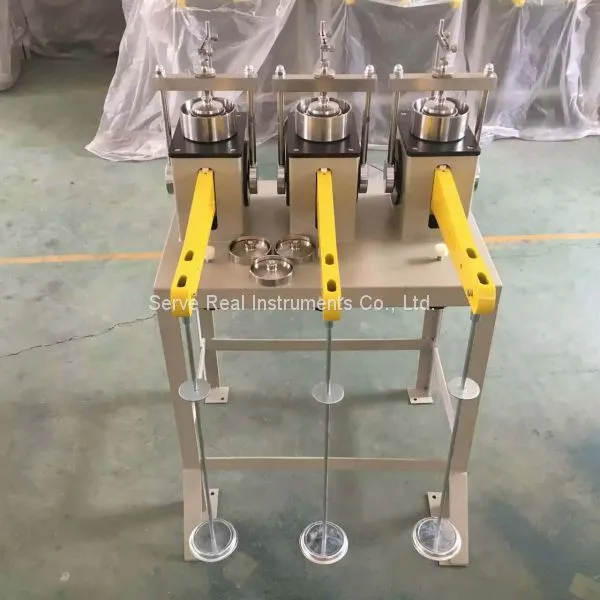

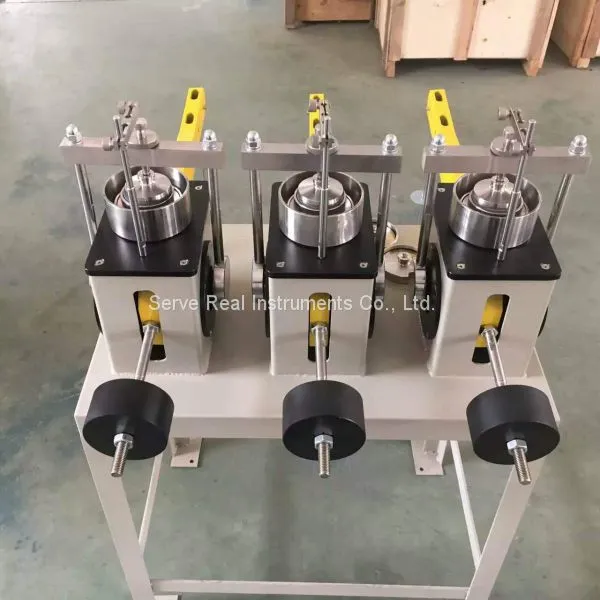

The three gang consolidation apparatus is a specialized equipment for soil consolidation test. It can test three samples at a same time, the triple gang consolidation apparatus can apply three different pressure to test 30cm2 and 50cm2 two type specimen.
Technical specifications
1. Applying pressure:
Low pressure: 12.5kPa/800kPa/30cm2, 12.5kPa/400kPa/50cm2
Middle pressure: 12.5kPa/1600kPa/30cm2, 12.5kPa/800kPa/50cm2
High pressure: 4000kPa/30cm2, 2000kPa/50cm2
2. Loading lever ratio: 12:1(low/middle pressure, 20:1, 24:1(high pressure)
3. Specimen area: 30cm2, 50cm2
4. Instrument structure: steel structure
Auxiliary equipments for soil consolidation test
1. Cutting ring
2. Porous stone
3. Dial gauge 0.01mm accuracy or equivalent displacement sensor
4. Electric scale, stop watch, drying oven, saw blade, scraper, aluminum container
