KRD30 series constant acceleration test machine is used to evaluate whether the structural adaptability and performance of components, equipment, and other electrical and electronic products are good when subjected to a constant acceleration environment (excluding gravity), and to obtain the units' electrical parameters.
The KRD30 series covers multiple models, with a maximum load range from 3×6 kg to 0.02×N kg, an acceleration range of 1–80,000 g, and acceleration accuracy of ≤3%. This series of equipment also features reliable protective measures, including open-circuit, over-limit, and overspeed protection. It supports both automatic and manual control modes, ensuring a safe and stable testing process.
Advanced control system: Full-automatic computer remote real-time control interface. The operator only needs to input simple values to start the equipment and complete the acceleration test accurately.

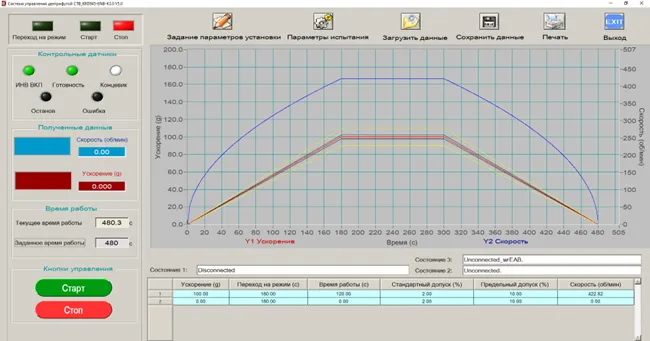

User-friendly display interface: the control interface can display the test curve, tolerance and test time in real time.
Powerful multi-acceleration continuous test system: It can realize multi-level acceleration continuous test according to the different requirements of the test sample.
Reliable protection measures: open circuit, over-limit and over-speed protection can be realized.
Multiple control methods: In the case of automatic control failure or no need of automatic control, the device can still use manual control to complete the test.
Convenient and quick result output system: After the test, the test report is automatically generated and printed out.
Technical Specifications
|
Parameters |
KRD30－3 |
KRD30－5 |
KRD30－10 |
KRD30－20 |
KRD30－2M |
KRD30－3M |
KRD30－4M |
KRD30－8M |
Max. Load (kg) ×Position |
3×6 |
5×4 |
10×2 |
20×2 |
0.05×N |
0.04×N |
0.03×N |
0.02×N |
Acceleration (g) |
1～500 |
1～100 |
200～20k |
200～30k |
200～40k |
200～80k |
||
|
Max. Height for Specimen (mm) |
200 |
300 |
/ |
|||||
Installation Radius (mm) |
200 |
500 |
130 |
|||||
Test Direction |
±X, ±Y ±Z |
|||||||
Launch/Stop Time (Min) |
≤3 |
≤5 |
||||||
Continues Worktime (Min) |
60 |
5 |
||||||
Acceleration Accuracy (%) |
≤3 |
|||||||
Overall Dimension (mm) |
1100×1100×1200 |
1850×1520×950 |
1000×1000×1100 |
|||||
Slip Ring |
Optional according to user requirements |
/ |
||||||
Weight (kg) |
1000 |
1500 |
1000 |
|||||
Power Supply |
3-phase AC380V±10% |
|||||||
Control Mode |
Fully closed-loop digital network (remote) automatic control + manual control |
|||||||
Installation Condition |
Foundation-free, the cement floor shall be leveled and the working distance of 800~1000mm shall be reserved around the equipment |
|||||||
|
Working Environment |
Temperature range 0～40℃, Humidity≤80% (non-condensing) |
|||||||
Standards |
MIL-STD-810F IEC60068-2-7 MIL-STD-202 MIL-STD-750 MIL-STD-883 |
|||||||
2. In addition to providing electrical signals, the slip ring can also optionally add transmission functions such as oil, gas, special signals, Ethernet, and RF signals.
Standards
For the environmental test standards involved in this product, the corresponding methods for Constant Acceleration testing are as follows:
MIL-STD-810H: Method 513 – Acceleration
MIL-STD-202: Method 212 – Constant Acceleration
MIL-STD-750: Method 2006 – Constant Acceleration
MIL-STD-883: Method 2001 – Constant Acceleration
IEC 60068-2-7: Test Ga – Constant Acceleration
Test Results
KRD30-03 500g
KRD30-20 100g
KRD30-3M 30000g
