9000 Lph CE Qualified Hydraulic Oil Filter Machine for Coolant Oil and Hydraulic Oil Recycling
Application
Water affects the basic components of the oil, promoting oxidation, viscosity increase and foaming. Water also affects the additive package by water washing and hydrolysis, resulting in the depletion of acids and additives. Water promotes rust and corrosion, and increases wear due to aeration, which results in film strength failure, hydrogen foaming and embrittlement, and steam cavitation. Finally, water is a generator of other contaminants in the oil, such as waxes, suspensions, carbon and oxide insolubles, and even microorganisms. 9000 Lph CE Qualified Hydraulic Oil Filter Machine for Coolant Oil and Hydraulic Oil Recycling is designed to degassing water contant, and remove gas, particles and other impurities in the waste turbine oil, so that the oil can recover the properties of the new oil to compelet oil recycling process.
Features:
1. Breaking emulsification thoroughly with high- molecule polymeric material.
2. Dewatering very effectively with once and for two steps dehydrating method. It can thoroughly clear away the liquid water, free water and 80% dissolved water.
3. With distinctive removing impurities technique filtering through double FH trapezoidal network and absorbing by high polymer material, this machine can make the equal or surpass 200 and make the cleanness lower grade 6(NAS1638).
4. With the trapezoidal, spiral, automatic back flushing system.
5. With the advanced dielectric condensation devices.
6. On-line oil purification can be carried out with turbine or water turbine automatically without any person.
7.Deep and high-precision FH rectangular filter system can effectively remove iron filings, dust and impurities in the oil.
8.Self-developed H, P, M polymer material filtration technology.
9.Adopt high quality original components and connecting sealing materials to meet the requirements of high viscosity lubricating oil filtration with high temperature, and expand the type and range of oil that can be purified by oil filter.

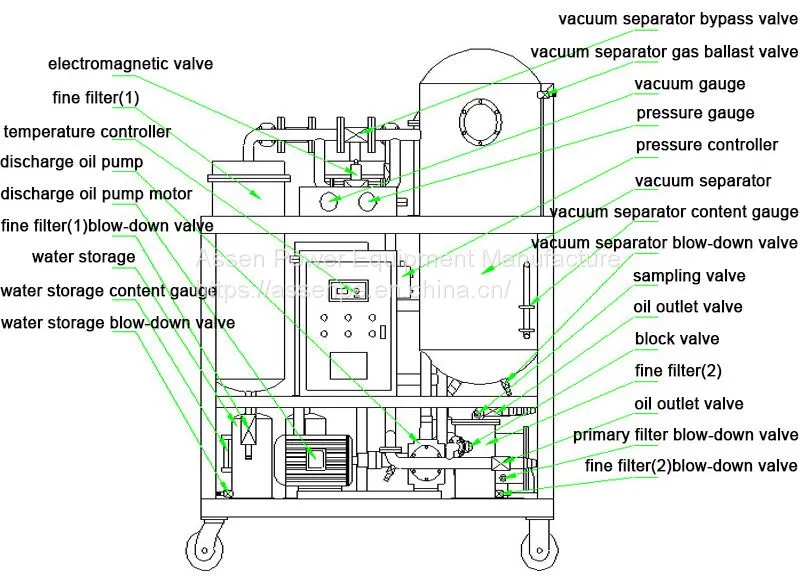

Structures of 9000 Lph CE Qualified Hydraulic Oil Filter Machine for Coolant Oil and Hydraulic Oil Recycling
9000 Lph CE Qualified Hydraulic Oil Filter Machine for Coolant Oil and Hydraulic Oil Recycling's Technical Parameters
Item |
Unit |
TY-10 |
TY-20 |
TY-30 |
TY-50 |
TY-100 |
TY-150 |
TY-200 |
TY-300 |
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
Vacuum Degree |
MPa |
-0.06 ～ -0.095 |
||||||||
Working Pressure |
MPa |
≤0.3 |
||||||||
Temperature Range |
℃ |
40 ～ 70 |
||||||||
Heating Power |
kW |
12 |
15 |
18 |
24 |
45 |
60 |
72 |
84 |
|
Total Power |
kW |
14 |
17 |
20 |
27 |
48 |
66 |
81 |
97 |
|
Inlet/outlet Caliber |
mm |
25 |
25 |
25 |
32 |
42 |
50 |
50 |
60 |
|
Weight |
kg |
400 |
450 |
500 |
600 |
700 |
900 |
1050 |
1550 |
|
Dimension |
Length |
mm |
1280 |
1350 |
1350 |
1400 |
1500 |
1500 |
1600 |
1800 |
Width |
mm |
750 |
900 |
950 |
950 |
1000 |
1200 |
1350 |
1400 |
|
Height |
mm |
1450 |
1450 |
1500 |
1600 |
1650 |
1800 |
1800 |
1850 |
|
water content will less than 50ppm
gas content will less than 0.2%
kinematic viscosity (40°C):28.8-35.2 mm²/s
flash point ( open cup) > 190°C
acid value ≤ 0.2 mgKOH/g ( without antirust in your oil)
demulsibility≤60 min
filtration accuracy ≤ 5 micron
oil appearance: transparent
cleanness: ≤NAS grade 6
Chongqing Assen Power Equipment Co.,LTD, which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff, professional workers and High-quality sales and service teams
Our Product: Double Stage Transformer Oil Purification System, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Lubricating Oil Purification, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipment operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
ASSEN warrants the plant supplied under this specification against defects in material and workmanship under normal use and service for a period of twenty-six (26) months from the date of shipment or twenty-four (24) months after the start-up of the system. ASSEN's obligation under this warranty is limited to repairing or furnishing, a similar part to replace any part, which was proven to be defective within the warranty period.
1. We customize the machine to your requirements.
2. We have more than 20 years of export experience.
3. We offer our customers high-quality products at a competitive price.
4. We offer our customers excellent after-sales service.
5. We are not satisfied until our customers are satisfied.
