Programmable Peristaltic Pumps With RS485 Communication Protocol

Programmable Peristaltic Pumps With RS485 Communication Protocol thumbnail-1
Programmable Peristaltic Pumps With RS485 Communication Protocol photo-1
US$ 245 - 260 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CHUANGRUI
Place of Origin:
China
Model Number:
UCP304
Contact Supplier Request Quote Chat Now
Baoding Chuang Rui Precision Pump Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin /Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CHUANGRUI
Place of Origin China
Model Number UCP304
Application Other, ucp304
Fuel Gasoline
Power Electric
Usage Water
Theory Electromagnetic Pump
Standard or Nonstandard Standard
Structure Other, peristaltic pump
Pressure Low Pressure
Quick Details

  • Warranty:

  • 1 year

  • Customized support:

  • OEM, ODM, OBM

  • Brand Name:

  • CR

  • Model Number:

  • UCP304

  • Place of Origin:

  • Hebei, China

  • Application:

  • Water Distribution

  • Horsepower:

  • none

  • Power Source:

  • Electric

  • Pressure:

  • Low Pressure

  • Structure:

  • peristaltic pump

  • Cable Length:

  • none

  • Outlet Size:

  • Max 6.4mm

  • Voltage:

  • AC220V or AC110V

  • Power:

    • Certification:

    • ce, ISO9001

    • Product name:

    • peristaltic pump

    • Model:

    • UCP304

    • Pump head:

    • ZN25

    • Speed:

    • Max 600 rpm

    • Flow rate:

    • Max 1740ml/min

    • MOQ:

    • 1 Set
Supply Ability

  • Supply Ability

  • 3000 Piece/Pieces per Month

Packaging & Delivery

  • Packaging Details

  • 1. The package contains a peristaltic pump and its accessories.
    2. Carton and foam packaging can protect the safety of the product during transportation.
    3. If you have special packaging needs, please contact us in time.

  • Port

  • Tianjin,Shanghai,Guangzhou

  • Lead Time:

  • Quantity(Pieces) 1 - 3 >3
    Est. Time(days) 7 To be negotiated
Product Description

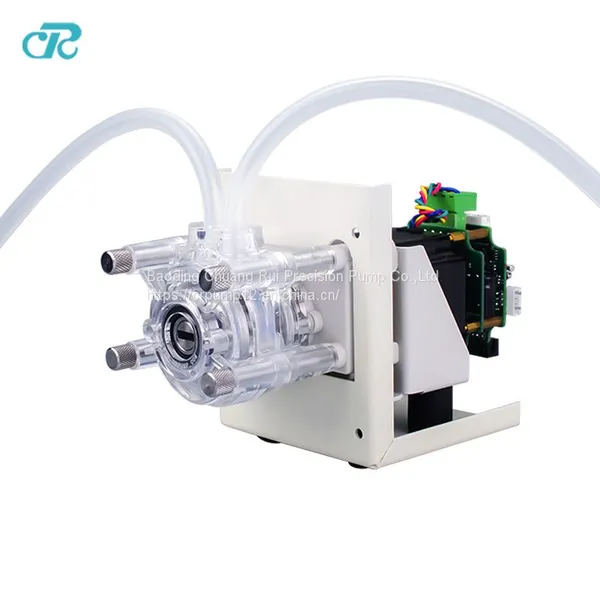

Stepper motor peristaltic pump
The UCP design started from the customer's requirements for small size, multi-function and high precision, and supports PLC control.
Stepping motors and conventional drivers are mostly used for packaging machinery. The speed of the pump can be controlled by pulse
to achieve precise filling. Chuangrui's unique control program can support analog control (0-5v 0-10v 4-20mA 0-10KHz) start-stop
control, direction control. It also supports RS485 communication protocol. The pump can be better embedded and combined with the customer's equipment.
Specifications
Model
UCP304/ZN25-24
Power supply
DC24V-48V or AC Adaptor optional
Speed range
0.1-350 rpm
Speed resolution
0.1 rpm
Flow range
0.17-1000ml/min
Control method
encoded switch or PLC
PLC Control
Support RS485 communication protocol /analog control (0-5v 0-10v 4-20mA) etc.
small stepper motor peristaltic pump


 Custom mounting brackets available.
- Ideal for fluid transfer application
- Pump head is compact and simple in design with same side tubing entry/exit.
- Perfect for space-limited applications.
- Pump heads are compact and easy to integrate into your Fluid applications.
- Call for more information on our pump services.




Product Tags: Peristaltic Pump , RS485 peristaltic pumps , communication protocol peristaltic pumps
