Stepper Motor Laundry Dosing Pump Peristaltic Pump

Baoding Chuang Rui Precision Pump Co.,Ltd
Stepper Motor Laundry Dosing Pump Peristaltic Pump thumbnail-1
Stepper Motor Laundry Dosing Pump Peristaltic Pump photo-1
US$ 90 - 200 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CHUANGRUI
Place of Origin:
China
Model Number:
UCP306
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin /Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CHUANGRUI
Place of Origin China
Model Number UCP306
Application Other, UCP306
Fuel Gasoline
Power Electric
Usage Water
Theory Electromagnetic Pump
Standard or Nonstandard Standard
Structure Other, peristaltic pump
Pressure Low Pressure
Quick Details

  • Warranty:

  • 1 year

  • Customized support:

  • OEM, ODM, OBM

  • Brand Name:

  • ChuangRui

  • Model Number:

  • UCP306/WP300

  • Place of Origin:

  • Hebei, China

  • Application:

  • Laundry Dosing Pump, stepper motor peristaltic pump for liquid

  • Horsepower:

  • None

  • Power Source:

  • Electric

  • Pressure:

  • Low Pressure

  • Structure:

  • stepper motor peristaltic pump

  • Cable Length:

  • none

  • Outlet Size:

  • Max 7.9mm

  • Voltage:

  • DC12V or DC24V

  • Certification:

  • ce, ISO9001

  • Pump model:

  • UCP306

  • Pump head:

  • WP300

  • Pump head material:

  • PC

  • Roller:

  • 3

  • Max speed:

  • 300

  • Flowrate:

  • 0~1000ml/min

  • Usage:

  • Laundry dosing transfer
Supply Ability

  • Supply Ability

  • 3000 Set/Sets per Month

Packaging & Delivery

  • Packaging Details

  • 1. The stepper motor peristaltic pump is carton with plastic foam.
    2. The peristaltic pump can also be packed strictly according to the customer's requirements.

  • Port

  • Tianjin,beijing,qingdao,guangzhou

  • Lead Time:

  • Quantity(Sets)1 - 3>3
    Est. Time(days)7To be negotiated
Product Description

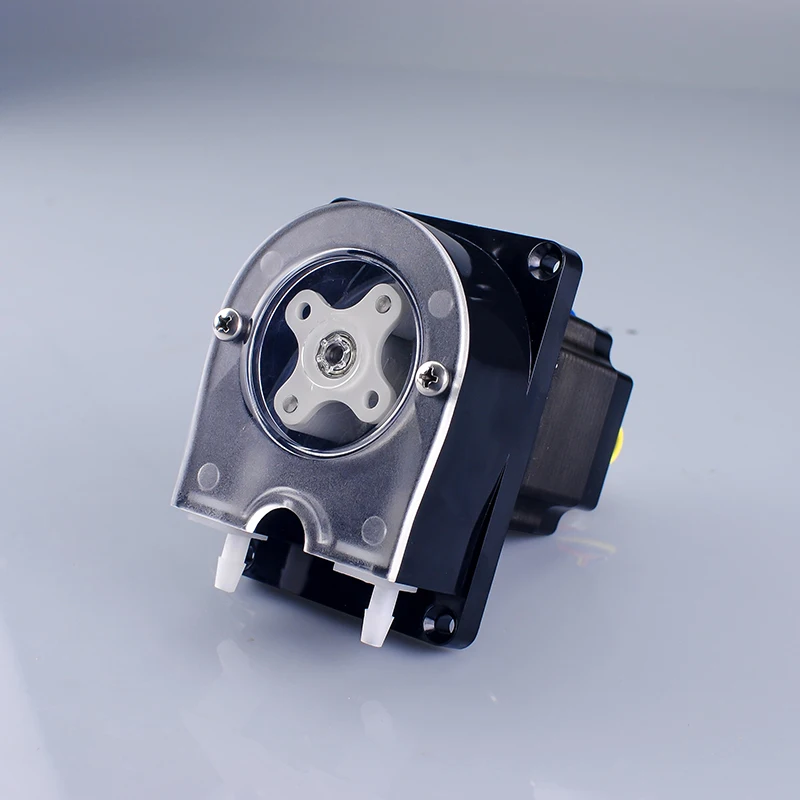

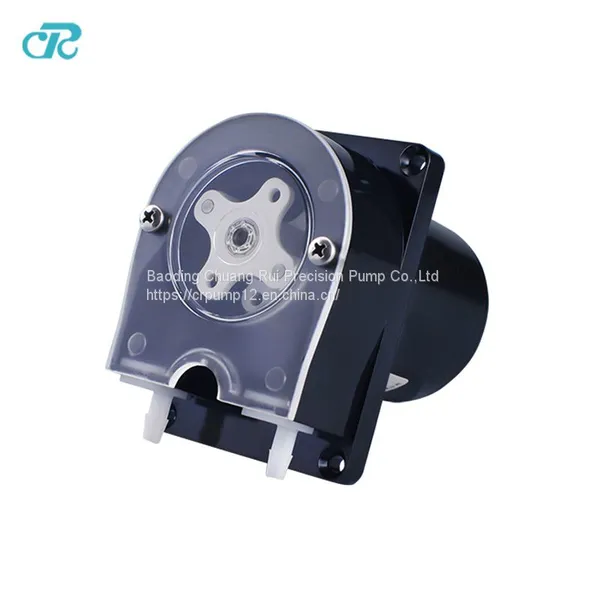

small stepper motor peristaltic pump


 Custom mounting brackets available.
- Ideal for fluid transfer application
- Pump head is compact and simple in design with same side tubing entry/exit.
- Perfect for space-limited applications.
- Pump heads are compact and easy to integrate into your Fluid applications.
- Call for more information on our pump services.


Specifications
Stepper motor peristaltic pump
Model : UCP306/wp300 Motor: Stepper motor NEMA23
Suggestion speed: 0.1-300 rpm.
Max flow with 18# tube: 1000ml/min This stepper motor pump with NEMA 23 motor can be controlled by the user's driver or controller. With 4 installation holes, which are easy to fix by screws. With compact structure, which suitable for small space installation.
Application :On-line testing equipment, sample injection pump, drain pump,additive pump
For the stepper motor , we have several different control driver .If you want more details ,pls contact our sales.
Order Model
Drive Model
Motor
Product configuration
Control Method
Max Speed
UCP306A
CRSCS42
NEMA23
NO
User control
300rpm
UCP306B
CRSCLNZFJ
NEMA23
CR driver+Control Swtich
User control
300rpm
UCP306C
CRSCLNZM
NEMA23
CR driver+Control Swtich
Switch Control
300rpm
UCP306D
CRSCLNZ5V
NEMA23
CR driver+Control Swtich+0-5V control Cable
0-5V /start stop/direction
300rpm
UCP306E
CRSCLNZ10V
NEMA23
CR driver+Control Swtich+0-10Vcontrol Cable
0-10V /start stop/direction
300rpm
UCP306F
CRSCLNZ20A
NEMA23
CR driver+Control Swtich+4-20mA control Cable
4-20mA /start stop/direction
300rpm
UCP306G
CRSCLNZ10K
NEMA23
CR driver+Control Swtich+0-10KHz control Cable
0-10Khz /start stop/direction
300rpm
UCP306H
CRSCLNZRS
NEMA23
CR driver+Control Swtich+RS485 control Cable
RS485 Communication protocol
300rpm
Tube model
ID(mm)
OD(mm)
Max speed (rpm)
Max flow(ml/min)
14#
1.6
4.8
300
50
25#
4.8
8
300
500
17#
6.4
9.6
300
750
18#
7.9
11.1
300
1000


Product Tags: Peristaltic Pump , Dosing Pump Peristaltic Pump , Stepper Laundry Peristaltic Pump
