Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > 12L User Pulse Control Driver Programmable Automotive Industry Flow Stepper Motor Peristaltic Pump

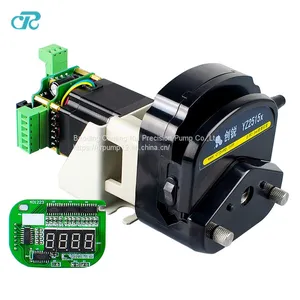

12L User Pulse Control Driver Programmable Automotive Industry Flow Stepper Motor Peristaltic Pump

12L User Pulse Control Driver Programmable Automotive Industry Flow Stepper Motor Peristaltic Pump thumbnail-1
12L User Pulse Control Driver Programmable Automotive Industry Flow Stepper Motor Peristaltic Pump photo-1
US$ 400 - 600 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CHUANGRUI
Place of Origin:
China
Model Number:
UCP300
Contact Supplier Request Quote Chat Now
Baoding Chuang Rui Precision Pump Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin /Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CHUANGRUI
Place of Origin China
Model Number UCP300
Application Other, ucp300
Fuel Gasoline
Power Electric
Usage Water
Theory Electromagnetic Pump
Standard or Nonstandard Standard
Structure Other, peristaltic pump
Pressure Low Pressure
Quick Details

  • Warranty:

  • 1 year

  • Customized support:

  • OEM, ODM, OBM

  • Brand Name:

  • Chuangrui

  • Model Number:

  • UCP300/YZ35-13

  • Place of Origin:

  • Hebei, China

  • Application:

  • Automotive Industry, Biofuel Industry, Mining industry, Industrial Peristaltic Pump

  • Horsepower:

  • Other

  • Power Source:

  • Electric

  • Pressure:

  • Low Pressure

  • Structure:

  • Peristaltic Pump

  • Cable Length:

  • other

  • Outlet Size:

  • Max 12mm

  • Voltage:

  • Other

  • Certification:

  • ce, TUV, ISO9001

  • Theory:

  • peristaltic pump

  • Model:

  • UCP300

  • Pump head:

  • YZ35-13

  • Flowrate:

  • 0.27-12000ml/min

  • Max speed:

  • 600rpm

  • Pump head material:

  • PPS

  • Roller material:

  • 304 stainless steel

  • IP rate:

  • IP31

  • Tube:

  • 73# 82#
Packaging & Delivery

  • Packaging Details

  • 1. The package contains a peristaltic pump and its accessories.
    2, foam and carton packaging can protect the safety of the peristaltic pump during transportation.
    3. If you have other packaging needs, please contact our sales staff in time.

  • Port

  • Tianjin,Shanghai,Guangzhou

  • Lead Time:

  • Quantity(Sets) 1 - 3 >3
    Est. Time(days) 7 To be negotiated
Product Description
Chuangrui liquid handling pump
The UCP300 stepper motor  peristaltic pump have superb features built-in and flexible design to meet specific customer needs.
Flexible rotor assembly, occlusion can be adjusted automatically, which give this OEM peristaltic pump powerful functions.
Order guide
stepper motor peristaltic dosing pump
The peristaltic pump suitable for wall thickness 3.3mm Silicon tube, Pharmed bpt etc. material
tube, flow range up to12000 ml/min. The shell of pump head is made of PPS material and the roller is made of 304 SSS material. The roller has high strength, better wear resistance, strong chemical corrosion resistance, and it can be disinfected at high temperature .
Order list for the small peristaltic pump UCP300.
Noted:
1.The defaulted model we will send is UCP300A
2.Defaulted channel number is 1 ,If you need multiple pls contact us
3, The defaulted pump head material is pps (black)
4, Support multiple channels customized, more info ,pls contact us.
Order Number
Model
Pump head
Motor
Driver
Control method
Tube model
Max Flow
(ml/min)
UCP300A
UCP300
YZ35-13
NEMA34
NO
User control
82#
12000
UCP300B
UCP300
YZ35
NEMA34
NO
User control
82#
12000
UCP300C
UCP300
YZ35-13
NEMA34
806 DRIVER
User control
82#
12000
UCP300D
UCP300
YZ35
NEMA34
806 DRIVER
User control
82#
12000
Tube specifications for the pump  YZ35-13 YZ35
Tube model
ID(mm)
OD(mm)
Max flow
(ml/min)
Standard material
Optional material
82#
12.7
19.3
12000
Silicon tube
pharmed BPT/Norprene A-60-F..etc.
73#
9.6
16.2
7400
Silicon tube
pharmed BPT/Norprene A-60-F..etc.


Product Tags: Peristaltic Pump , Flow Stepper motor Peristaltic Pump
