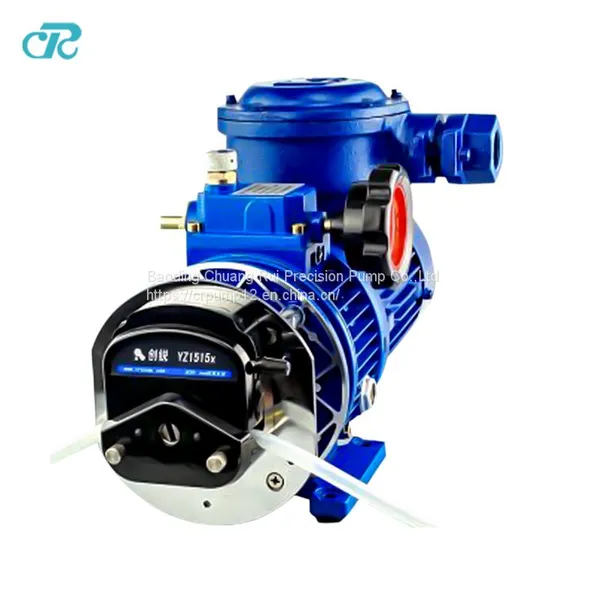

Electric Explosion-proof Peristaltic Pump

FOB Price

USD $700 - $1000 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Tianjin /Shanghai
Payment Terms:T/T L/C
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	CHUANGRUI	Place of Origin:	China	Model Number:	FB600
Application:	Other, FB600	Fuel:	Gasoline	Power:	Electric
Usage:	Water	Theory:	Electromagnetic Pump	Standard or Nonstandard:	Standard
Structure:	Other, water /oil	Pressure:	Low Pressure

Product Description

Quick Details

Warranty:
1 year, 1 Year

Customized support:
OEM, ODM, OBM

Brand Name:
CR

Model Number:
FB600

Place of Origin:
China

Application:
transfer liquid, explosion-proof peristaltic pump

Horsepower:
Other

Power Source:
Electric

Pressure:
other, Low Pressure

Structure:
peristaltic pump

Cable Length:
other

Outlet Size:
Max 13mm

Voltage:
AC380V

Certification:
ce

Product name:
Electric Explosion-proof Peristaltic Pump

Model:
FB600

Suitable pump head:
YZ1515x YZ2515x KZ25 YZ35 YZ35-13,optional

Speed Range:
130-600rpm

Max flow:
12000 ml/min

MOQ:
1 Set

Usage:
explosion-proof peristaltic pump

Supply Ability

Supply Ability
3000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details
Electric Explosion-proof Peristaltic Pump
1. The package contains a peristaltic pump and its accessories.
2, carton and foam packaging can well protect the safety of the peristaltic pump during transportation.
3. If you have special packaging requirements, please contact us in time.

Port
Tianjin,Sahnghai,Guangzhou

Lead Time:
Quantity(Pieces) 1 - 3 >3
Est. Time(days) 7 To be negotiated

Electric Explosion-proof Peristaltic Pump

Product Description

Electric Explosion Proof Peristaltic Pump.Can be installed large flow pump head with maximum flowrate of 12000ml/min (single channel).

A sharp explosion peristaltic pump can be mounted high flow pump head. Speed can be adjusted manually adjust the speed planetary CVT. Used in various environments, in particular, the requirement to use explosion-proof environments.

Explosion-proof pumps are also used to move gasoline, diesel fuel, oil, ground water, potable water, salt water, wastewater, sewage, sludge, slurry and ash slurry, gas and air, powders, and rendering wastes, a variety of liquids, liquids with solids, etc.

Parameter

Model	FB600
Suitable pump head	YZ1515x YZ2515x KZ25 YZ35 YZ35-13	Nominal voltage	AC380V
Speed Range	130-600rpm	Nominal frequency	50Hz
Max flow	12000 ml/min	nominal power	0.25Kw
Ex pump motor rating	EXDII-B-T4	Environment Temperature	0-40℃
IP Rate	IP55	Relatively Humidity	<80%

Function & Characteristics

Speed can be adjusted manually. Adjust the speed with a continuously variable transmission.

304 stainless steel housing applicable to a variety of environments especially for the requirements of explosion-proof environment.

The pump delivers flow rates from 74 to 12 L/min.

Two channels flowrates can be 1.4L~24L/min.

Driven by AC380V motor(of) the FB600 has higher torque and can drive double pump heads.

FB600 is ideal for industrial application to meet your needs of higher pressure and quick fluid transfer.

Steady flow rate lower noise and easy to operate.

Explosion Proof Pumps prevent internal or external explosions through enclosing parts which can ignite either the transfer media or the surrounding atmosphere.

Some explosion-proof pumps are designed to move abrasive materials acids adhesives chemicals concrete and grout coolants hazardous materials liquid metal lubricants etc.

Other devices are rated for combustible corrosive high viscosity high temperature media etc.

Explosion-proof pumps are also used to move gasoline diesel fuel oil ground water potable water salt water wastewater sewage sludge slurry and ash slurry gas and air powders solids and rendering wastes a variety of liquids liquids with solids etc.
