Customized 24V OEM Dosing Peristaltic Hose Pump For Milk Vending Machine

Baoding Chuang Rui Precision Pump Co.,Ltd
Customized 24V OEM Dosing Peristaltic Hose Pump For Milk Vending Machine thumbnail-1
Customized 24V OEM Dosing Peristaltic Hose Pump For Milk Vending Machine photo-1
US$ 145 - 165 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CHUANGRUI
Place of Origin:
China
Model Number:
OEM210
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin /Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CHUANGRUI
Place of Origin China
Model Number OEM210
Application Other, OEM210
Fuel Gasoline
Power Electric
Usage Other, water/oil
Theory Electromagnetic Pump
Standard or Nonstandard Standard
Structure Other, peristaltic pump
Pressure Low Pressure
Quick Details

  • Warranty:

  • 1 year

  • Customized support:

  • OEM, ODM, OBM

  • Brand Name:

  • Chuangrui

  • Model Number:

  • OEM210/WP500

  • Place of Origin:

  • Hebei, China

  • Application:

  • vending machine, milk transfer for vending machine

  • Horsepower:

  • Other

  • Power Source:

  • Electric

  • Pressure:

  • Low Pressure

  • Cable Length:

  • other

  • Outlet Size:

  • Max 9.6mm

  • Voltage:

  • DC24V

  • Certification:

  • ce, TUV

  • Model:

  • OEM210

  • Pump head:

  • WP500

  • Motor:

  • DC24V dc12v

  • Tube:

  • 73#

  • Max flow:

  • 5 L/min

  • warranty:

  • 1 year
Packaging & Delivery

  • Selling Units:

  • Single item

  • Single package size:

  • 29X19X19 cm

  • Single gross weight:

  • 3.000 kg

  • Package Type:

  • 1.The nail polish bottle filling high precision dosing peristaltic pump is carton with plastic foam.  2.Carton with plastic foam, make sure the filling peristaltic pump is safe during shipping.

  • Lead Time:

  • Quantity(Units)1 - 10>10
    Est. Time(days)14To be negotiated
Product Description

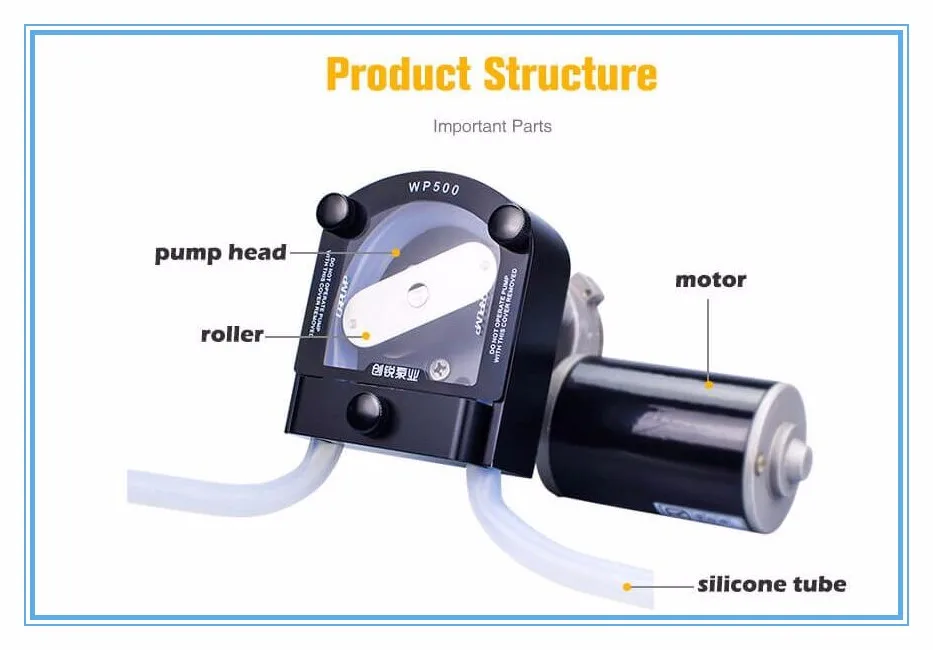

Compact Customized Small peristaltic pump
L-shaped installation, compact structure, convenient installation
Motor: With DC worm gear motor . The Peristaltic pump motor's gears are heat-treated after grinding.with wear resistance,long life,low noise .etc. Adhere to only metal gears ,gears are made of metal material ,smooth transmission and high torque
transmission Pump head: The pump head is made of aluminum Electrophoretic spray paint, with smooth coating film, good water resistance and chemical resistance The top cover is acrylic material Support customization into the customer's LOGO
Pump tubing:  Model : 73# ID 9.6 mm OD 16.2 mm
Detailed Images
The structure adopts two rotors, with 3.3-wall-thick vulcanized silicone tube or Norprene A-60-F hose, which can produce a flow of
3.4L/min with DC 24V motor.
5L /min with DC12V motor.
The standard tube is silicoon. If you need other material pls contact our sales.
Order number
Model
Pump Head
Speed(rpm)
Motor
Flowrate
210112265
 OEM210-1
WP500
265
DC24V
3400ml/min
210212300
OEM210-2
wp500
300
DC12
5000ml/min
