Chuangrui 24V Industrial OEM 24V Industrial Transfer Pump 12L/min

Chuangrui 24V Industrial OEM 24V Industrial Transfer Pump 12L/min thumbnail-1
Chuangrui 24V Industrial OEM 24V Industrial Transfer Pump 12L/min photo-1
US$ 400 - 450 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CHUANGRUI
Place of Origin:
China
Model Number:
OEM200
Contact Supplier Request Quote Chat Now
Baoding Chuang Rui Precision Pump Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin /Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CHUANGRUI
Place of Origin China
Model Number OEM200
Application Other, OEM200
Fuel Gasoline
Power Electric
Usage Water
Theory Electromagnetic Pump
Standard or Nonstandard Standard
Structure Other, peristaltic pump
Pressure Low Pressure
Quick Details

  • Warranty:

  • 1 year, 1 Year

  • Customized support:

  • OEM, ODM, OBM

  • Brand Name:

  • Chuangrui

  • Model Number:

  • OEM200/YZ35-13

  • Place of Origin:

  • Hebei, China

  • Application:

  • Food and Beverage Industry, Machining, Pharmaceutical industry, Water Treatment Solutions, liquid transfer

  • Horsepower:

  • None

  • Power Source:

  • Electric

  • Pressure:

  • Low Pressure

  • Structure:

  • Gear motor Pump

  • Cable Length:

  • none

  • Outlet Size:

  • Max 13mm

  • Voltage:

  • DC12V or DC24V

  • Power:

  • 120w

  • Certification:

  • ce, ISO9001

  • Theory:

  • peristaltic pump

  • Model:

  • OEM200

  • Pump head:

  • YZ35-13

  • Max Flowrate:

  • 12000ml/min

  • Max speed:

  • 600rpm

  • Pump head material:

  • PPS

  • Tube:

  • 73# 82#

  • MOQ:

  • 1 Set
Packaging & Delivery

  • Selling Units:

  • Single item

  • Single package size:

  • 41X29X26 cm

  • Single gross weight:

  • 8.000 kg

  • Package Type:

  • Chuangrui 24V Industrial OEM Peristaltic Pump Transfer Pump 1. The package contains a peristaltic pump and its accessories. 2, foam and carton packaging can protect the safety of the peristaltic pump during transportation. 3. If you have other packaging needs, please contact our sales staff in time.

  • Lead Time:

  • Quantity(Sets) 1 - 3 >3
    Est. Time(days) 7 To be negotiated
Product Description

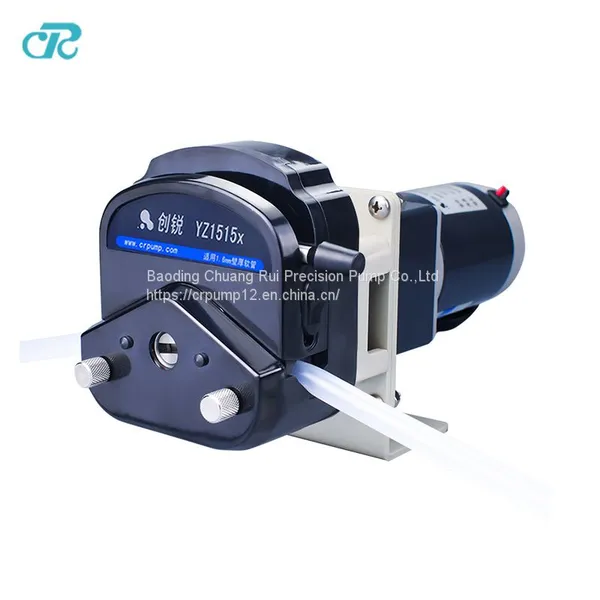

Chuangrui liquid handling pump
The OEM 200  peristaltic pump have superb features built-in and flexible design to meet specific customer needs.
Flexible rotor assembly, occlusion can be adjusted automatically, which give this OEM peristaltic pump powerful functions.
Order guide
DC 12V pump DC 24V pump compact DC peristaltic dosing pump
The peristaltic pump suitable for wall thickness 3.3mm Silicon tube, Pharmed bpt etc. material
tube, flow range up to12000 ml/min. The shell of pump head is made of PPS material and the roller is made of 304 SSS material. The roller has high strength, better wear resistance, strong chemical corrosion resistance, and it can be disinfected at high temperature .
Order list for the small peristaltic pump OEM200.
Noted:
1.The defaulted model we will send is 20016A with DC24V motor and flow is 12000ml/min
2.Defaulted channel number is 1 ,If you need multiple pls contact us
3, The speed controller is not defaulted, if you need pls contact our sales.
4, The defaulted pump head material is pps (black)
5, Support multiple channels customized, more info ,pls contact us.
Order Number
Model
Pump head
Motor Voltage
Motor Power
Motor Speed
Tube model
Flow
Speed control
20016A
OEM200-1
YZ35-13
DC24V
120W
600rpm
82#
12000ml/min
NO
20016B
OEM200-1
YZ35
DC24V
120W
600rpm
82#
12000ml/min
NO
20026A
OEM200-2
YZ35-13
DC12V
120W
600rpm
82#
12000ml/min
NO
20026B
OEM200-2
YZ35
DC12V
120W
600rpm
82#
12000ml/min
NO
20044A
OEM200-4
AYZ35-13
AC220V
120W
400 rpm
82#
8000ml/min
YES
20044B
OEM200-4
YZ35
AC220V
120W
400 rpm
82#
8000 ml/min
YES
Tube specifications
Tube model
ID(mm)
OD(mm)
Standard material
Optional material
82#
12.7
19.3
Silicon tube
pharmed BPT/Norprene A-60-F..etc.
73#
9.6
16.2
Silicon tube
pharmed BPT/Norprene A-60-F..etc.
Pump head with PPS material (Black)
Typical application : Chemical industry/ packing machine/printing /fine chemical, laboratory, food canning, chemical reagent filling, Dispense juice, chocolate,
etc.- Refrigeration / Condensate Removal- Analytical / Fluid Transfer, Wastes- Commercial Exercise Eqpt. / Lubrication- Grease Trap Control /etc..
Pump head with Aluminum alloy
Typical application : Packing machine/Medical/ Lab/ Analytical Instruments ,Commercial Dish washing / Chemical Dispensing- Vending Machine / Post Mix Syrups- Beverage Dispensing /Timed Dispense of Enzymes- Fluid Sampling / Water Sampling, DC Powered- Water Conditioning / Chlorination/PH control..etc.
Application For additive feeding
Application For waste water application


Product Tags: Peristaltic Pump , 12L/minPeristaltic Pump , 24V Industrial 24V Industrial
