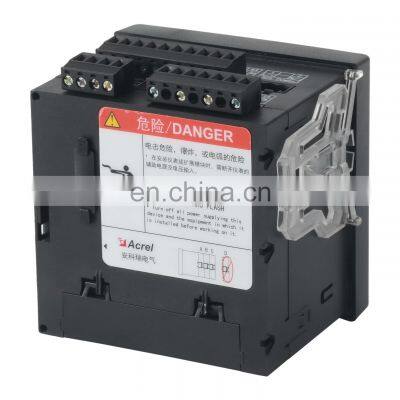

AC Ethernet/RS485 Multifunction Energy Meter 3-phase Full Electricity Parameter Acrel APM830 TF Flashcard/Micro SD
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Full Power Measurement Modular Design AC Energy Multi-functional Power Meter APM800NegotiableMOQ: 1 -
Three Phase Multifunction Ethernet Communication Electric Power Analyser Monitor MeterNegotiableMOQ: 1
-
Smart Three-phase Electric Network Power Meter APM800NegotiableMOQ: 1
-
ACREL APM800 Three Phase Smart Power Quality Energy Analyser Meter High Accuracy Class 0.5S With RS485 ModbusNegotiableMOQ: 1
-
ACREL APM801 Accuracy 0.2S Three-phase Smart Multifunction Power Meter Quality and Energy Analyzer With RS485NegotiableMOQ: 1
Solutions & Applications

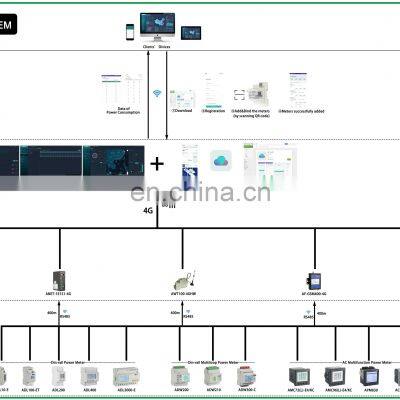

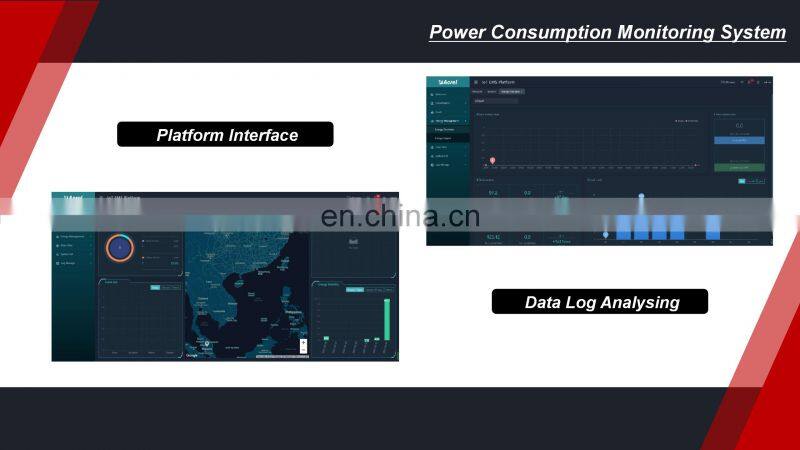

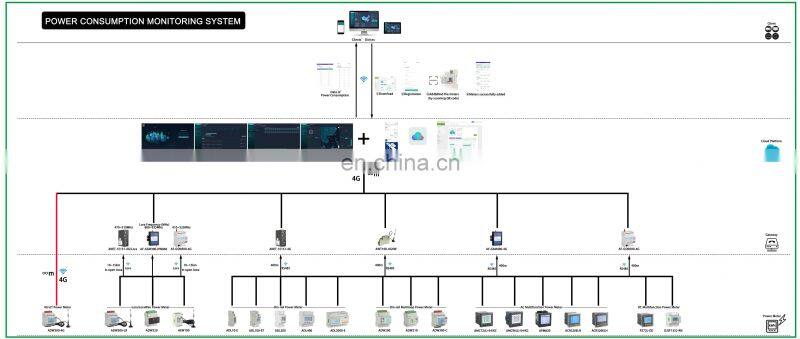

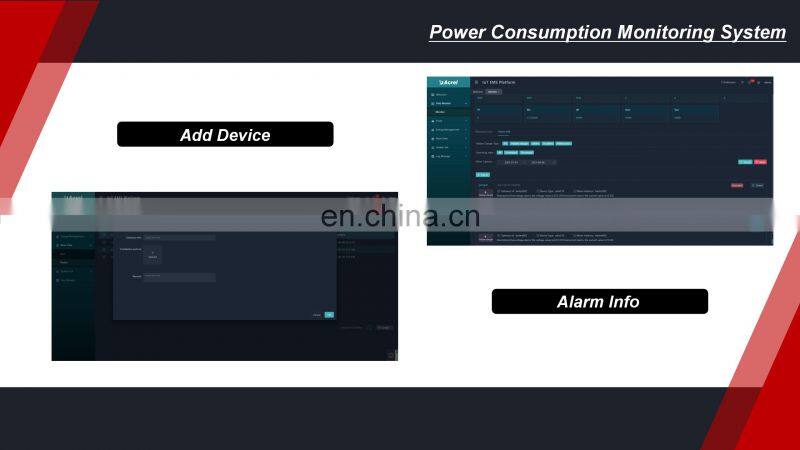

Power Consumption Monitoring System (Contact me for Clear View！)
IoT EMS Platform

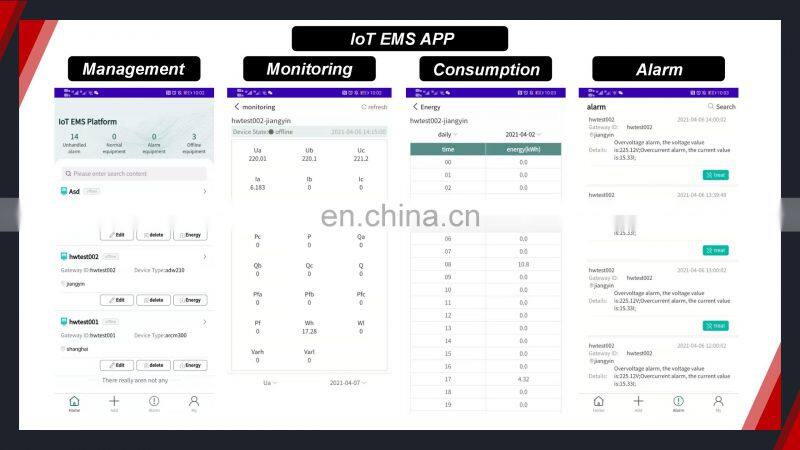

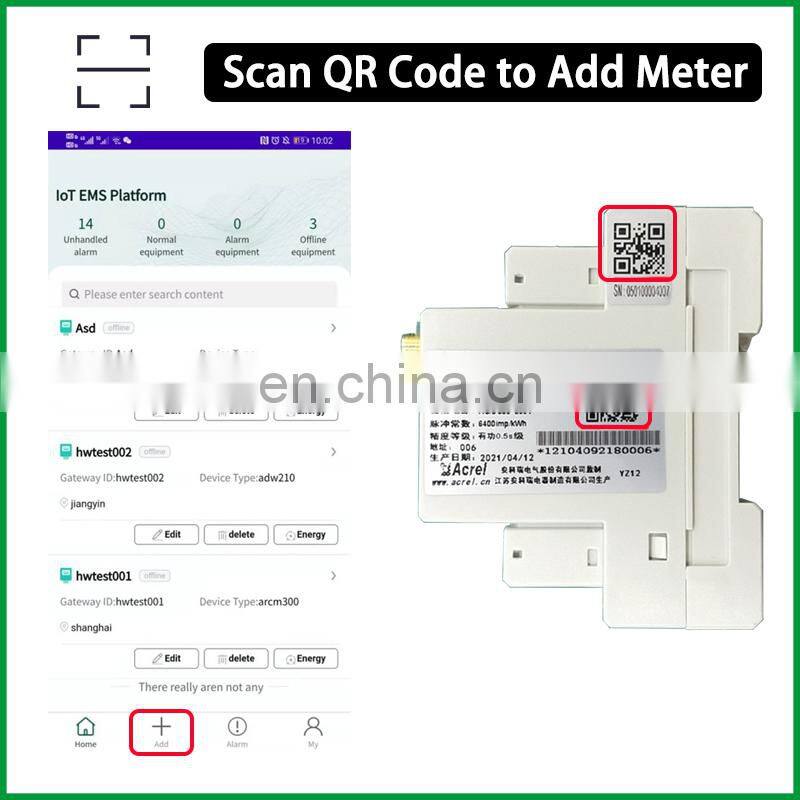

IoT EMS APP
Products Description

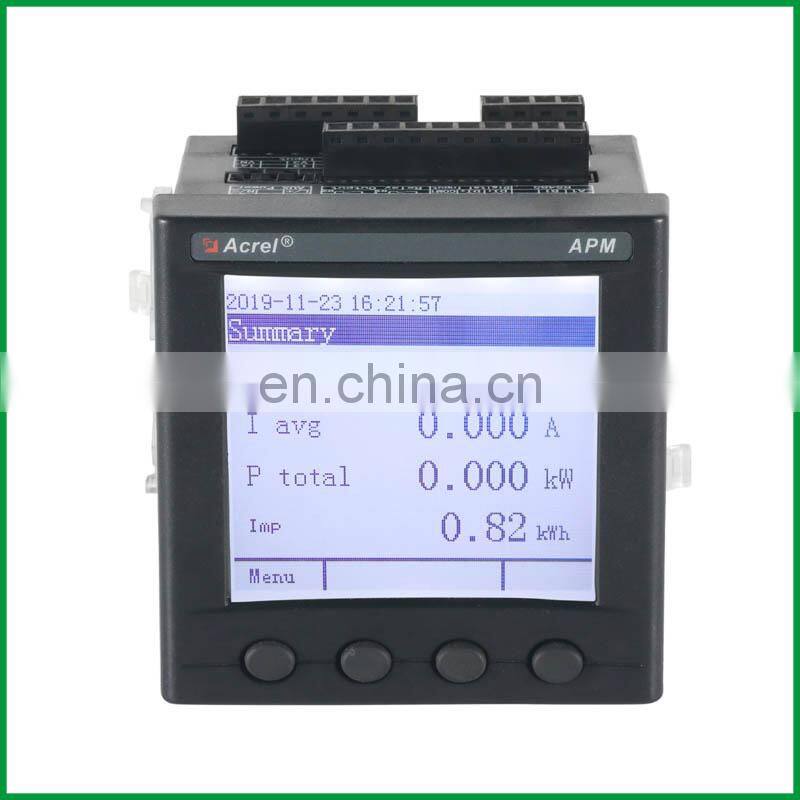

APM830 AC Multifunction Power Meter
APM 830( power meters) are designed according to IEC international standards .APM 830 meters have full power measurement, energy statistics, analysis of power quality Recording function, event recording function (including voltage rise and fall interruption, impulse current, etc.) and network communications and other functions, are mainly used for comprehensive monitoring of the quality of power supply network.This series of meters use a modular design, with a rich function of the external DI / DO module, AI / AO module, event recording module with T-Flash (TF) card, network communication module, can achieve full power measurement of electrical circuit and monitoring of switch status, Dual RS485 with Ethernet interface can realize data copying of RS485 master station, eliminating the need for data switching exchange. PROFIBUS-DP interface can realize high-speed data transmission and networking function.

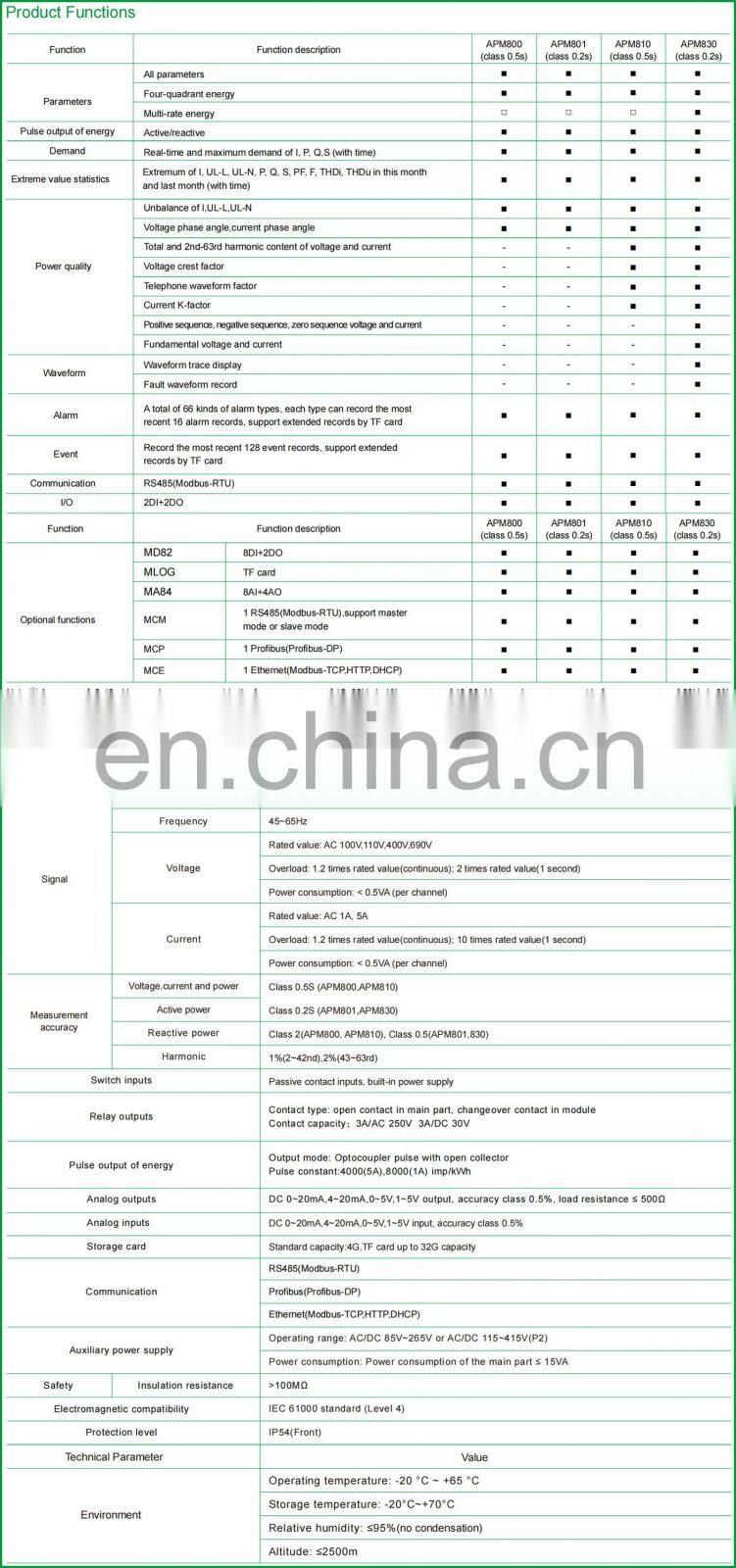

Function & Parameter
Dimension & Installation
Company Profile
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
Payment & Delivery
1.Payment: T/T 100% in advance, credit card, western union, in cash and etc. T/T 30% as deposit and the balance before shipment or against copy of B/L is acceptable with enough MOQ.
2.Delivery Arriving Time: in 3-7 working days after payment received.
3.Ways of Delivery: By sea, air, train or international courier like Fedex, TNT, DHL and UPS.
