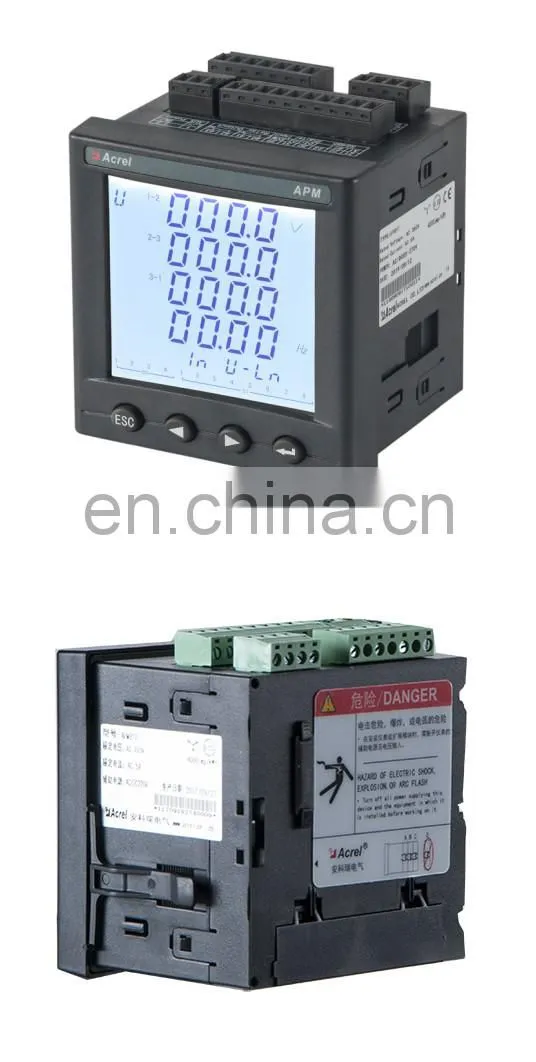

Full Power Measurement Modular Design AC Energy Multi-functional Power Meter APM800
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Three Phase Multifunction Ethernet Communication Electric Power Analyser Monitor MeterNegotiableMOQ: 1 -
Smart Three-phase Electric Network Power Meter APM800NegotiableMOQ: 1
-
ACREL APM800 Three Phase Smart Power Quality Energy Analyser Meter High Accuracy Class 0.5S With RS485 ModbusNegotiableMOQ: 1
-
ACREL APM801 Accuracy 0.2S Three-phase Smart Multifunction Power Meter Quality and Energy Analyzer With RS485NegotiableMOQ: 1
-
APM800 Rs485 Interface Supports Modbus Accuracy Class 0.5S/0.2S True RMS Measurements 3-Phase Electric AC Power Meter With LCDUS$ 235 - 254MOQ: 1 Piece
APM800 Multifunction Meter
Product Description
General
APM series power meters of ACREL are power meters that are designed according to IEC standards and synchronized with international advanced technology. APM series meters have full power measurement,energy statistics,analysis of power quality and network communications and other funcions,are mainly used for comprehensive monitoring of the
quality of power supply network.
Accuracy
Voltage,current and power:class 0.5sActive powe:class 0.5s
Reactive power: class 2
Frequency: 45-65Hz
Power Supply
AC/DC 85V~265V or AC/DC 115~415V
Pulse output
Output mode: Optocoupler pulse with open collector;
Pulse constant:4000(5A),8000(1A) imp/kWh;
Input consumption
Voltage:Power consumption:<0.5VA;
Current:Power consumption:< 0.5VA;
Power supply:power consumption≤15VA
Installation: Embedded installing
Dimension(L*W*H)
Faceplate(L×W):96*96mm
Cutout(L×W):92*92mm
Switch relay: DC 30V/3A AC 220V/3A
Dimension(L*W*H)
Faceplate(L×W):96*96mm
Cutout(L×W):92*92mm
Switch relay: DC 30V/3A AC 220V/3A
Starting current:0.1%
Quotation
Type |
Main function |
FOB Shanghai (USD) |
Option function |
||
APM800 |
Measure all electronic parameter(0.5S), neutral current unbalance,mean,extremum,2DI+2DO,RS485(Modbus-RTU)
|
248.5
|
/F:multi tariff energies $6.3
/MD82: 8DI+2DO $42
/MLOG:SD Card $42
/MA84:8AI+4AO $63
/MCM:the second RS485 $42
/MCE:Ethernet $105
/MCP:Profibus $126
|
||
APM801 |
Measure all electronic parameter(0.2S), neutral current unbalance,mean,extremum,2DI+2DO,RS485(Modbus-RTU)
|
269.5
|
|||
APM810 |
Measure all electronic parameter(0.5S), neutral current unbalance,mean,extremum,2DI+2DO,2-63rd harmonic, RS485(Modbus-RTU)
|
269.5
|
|||
APM830 |
Measure all electronic parameter(0.2S), neutral current unbalance,mean,extremum,2DI+2DO,RS485(Modbus-RTU),Recording wave
|
518
|
|||
Specification

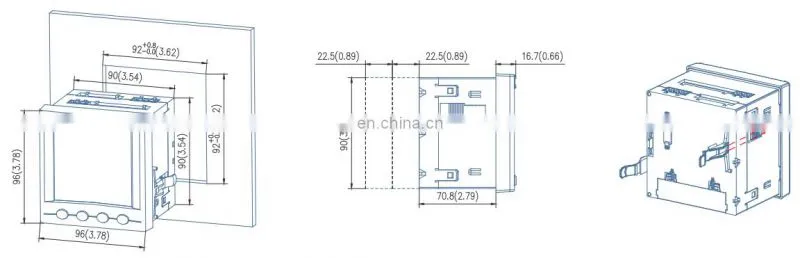

Dimension
Meter and panel opening size(unit: mm(in))
Multiple meter installation (unit: mm(in))

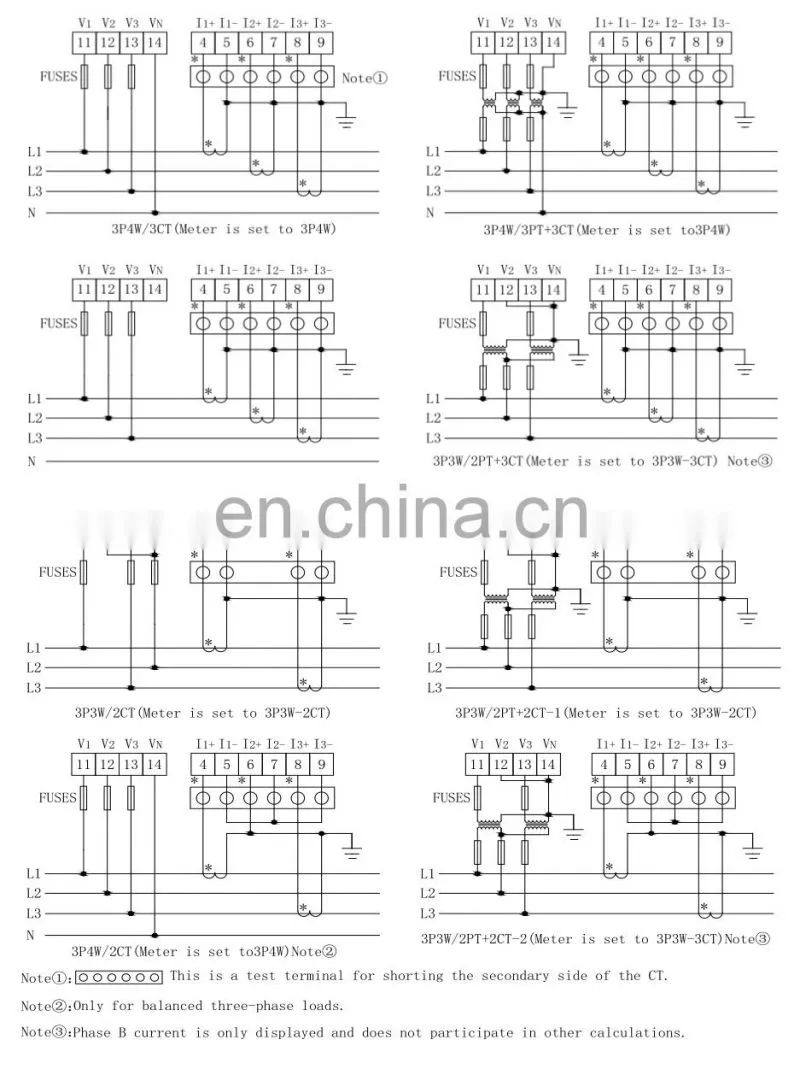

Wiring

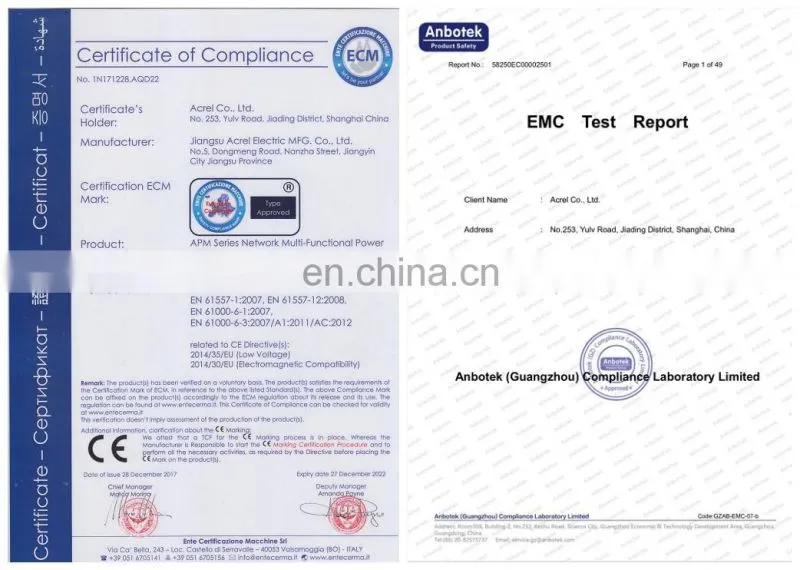

Certificate
Packing & Delivery
Company Profie
