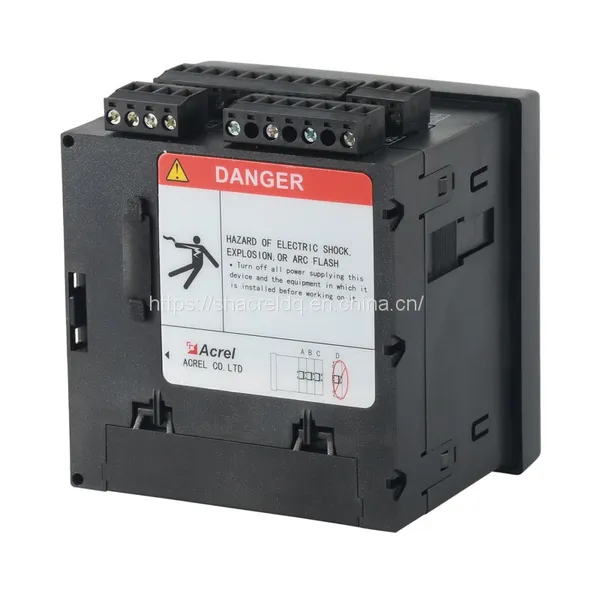

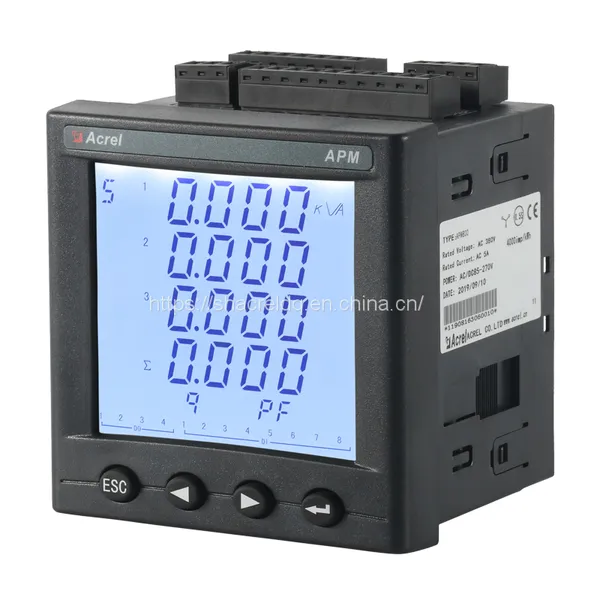

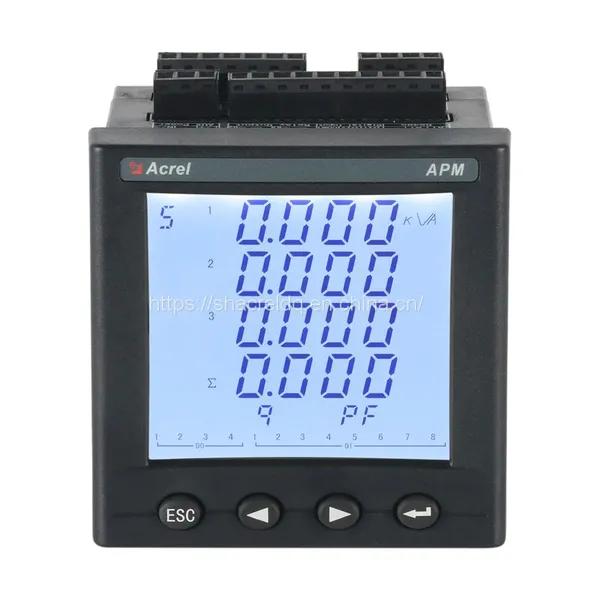

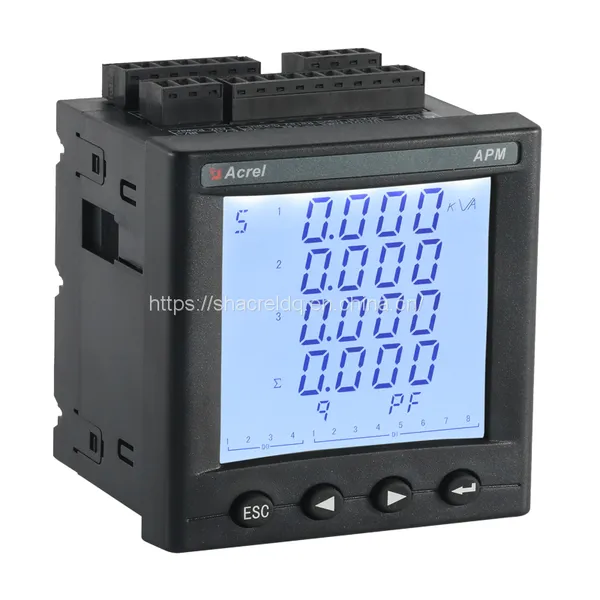

Low Power Consumption IEC 61000 Standard Electrical Energy Meter Metering Equipment For sale

● Muti tariff energies

● 8DO+2DI

● SD card

● the second RS485

● Ethernet

● PROFIBUS-DP

● 4 channel 2M NTC temperature, measurement

● 2 channel PT100 temperature, measurement

● 1 channel temperature and humidity

Diverse Extra Function Module

● Modular Design (Easy for Function Expansion)

● Support up to 3 Expanded Module at same time

DO/DI Switch Function Module ---MD82

● 2 DO Relay Output

● 8 DI Digital Input

● Save up to 128 pcs DO/DI Data in Main Body

● Paired with MLOG to save more DO/DI Records

SD Card Data Storage Module ---MLOG

● Expand Number of SOE Storage

● Support Storage of SD Cards up to 32GB (standard 4GB)

Extra RS485 Communication Module ---MCM

● Interface: RS485 Interface

● Protocol: MODBUS-RTU

● Support Salve&Master Mode

Ethernet Communication Module ---MCME

● Interface: RJ45 Interface

● Protocol: MODBUS-TCP/HTTP/DHCP/SMTP

● Could Serve as Serial Server

● Plus 1 Extra RS485 Interface

PROFIBUS-DP Communication Module ---MCMP

● Interface: PROFIBUS-DP Interface

● Protocol: PROFIBUS-DP

● Plus 1 Extra RS485 Interface

SOE Function (Main Body)

● Alarm Record (128 pcs records of 66 kinds&13 categories)

● DO/DI Record (128 pcs DO/DI records)

● Transient Record (800 pcs transient waveform records)

● Max Records pcs above could be expanded by SD Card

Multi-rate/Multi-tariff

● 4 Time zone

● 4 Tariff rate (Spike, Peak, Flat, Valley)

● 2 Time period list

● 14 Time period by day

Local Configuration

● Keypads HMI for Programming

● Setting through Adjustment Software

● Setting through WEB

● Setting through MODBUS communication

Signal

Connection

3 phase 3 wire, 3 phase 4 wire

Frequency

45~65Hz

Voltage

Rated value: AC 100V,110V,400V,690V

Overload: 1.2 times rated value(continuous); 2 times rated value(1 second)

Power consumption:<0.5VA (per channel)

Current

Rated value: AC 1A, 5A

Overload: 1.2 times rated value(continuous); 10 times rated value(1 second)

Power consumption:<0.5VA (per channel)

Measurement accuracy

Voltage, current, and power

Class 0.5S (APM800,APM810)

Class 0.2S (APM801,APM830)

Active power

Reactive power

Class 2(APM800, APM810), Class 0.5(APM801,830)

Harmonic

1%(2~42nd),2%(43~63rd)

Switch inputs

Passive contact inputs, built-in power supply

Relay outputs

Contact type: open contact in the main part, changeover contact in module Contact capacity:3A/AC 250V 3A/DC 30V

The pulse output of energy

Output mode: Optocoupler pulse with open collector Pulse constant:4000(5A),8000(1A) imp/kWh

Analog outputs

DC 0~20mA,4~20mA,0~5V,1~5V output, accuracy class 0.5%, load resistance ≤ 500Ω

Analog inputs

DC 0~20mA,4~20mA,0~5V,1~5V input, accuracy class 0.5%

Storage card

Standard capacity:4G, TF card up to 32G capacity

Communication

RS485(Modbus-RTU)

Profibus(Profibus-DP)

Ethernet(Modbus-TCP,HTTP,DHCP)

Auxiliary power supply

Operating range: AC/DC 85V~265V or AC/DC 115~415V(P2)

Power consumption: Power consumption of the main part ≤ 15VA

Safety

Insulation resistance

>100MΩ

Electromagnetic compatibility

IEC 61000 standard (Level 4)

Protection level

IP54(Front)

3-phase 4-wire connection

via 3 extra CTs

3-phase 3-wire connection

via 2 extra CTs & 2 extra PTs
