Characteristic

* Communication:  standard: RS485 interface/Modbus-RTU protocol and DLT645 protocol
                              optional: Profibus-DP interface/Profibus-DP protocol; RJ45 interface (Ethernet)                                / Modbus-TCP, http, DHCP and other protocols;

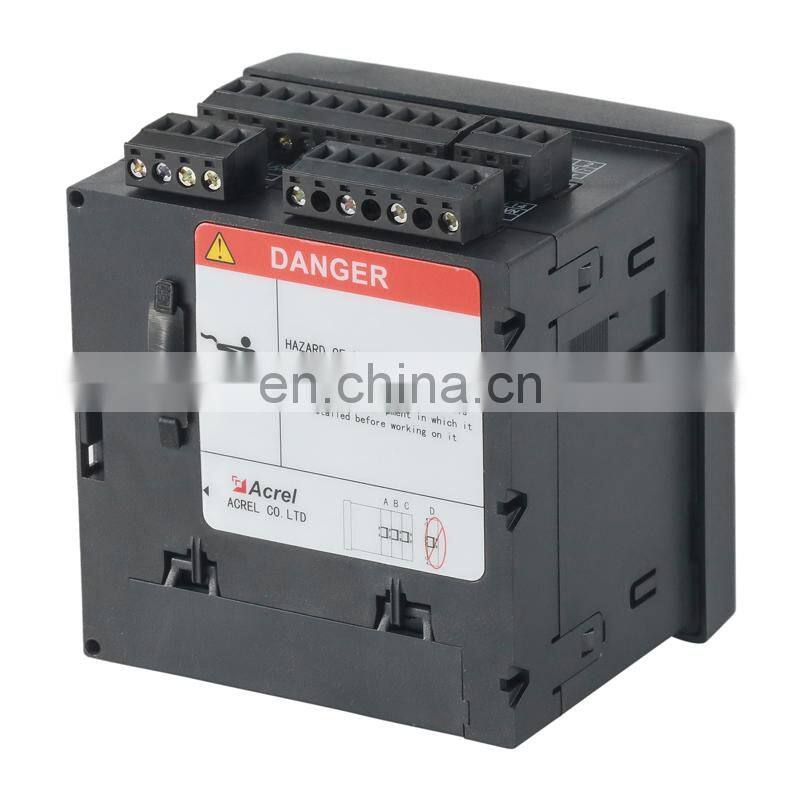

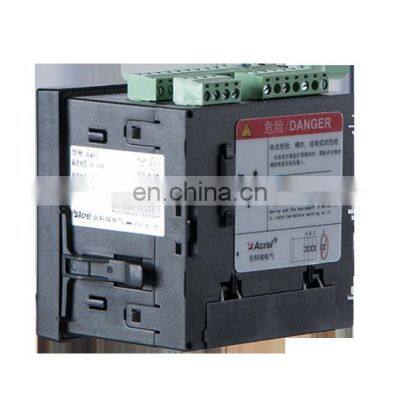

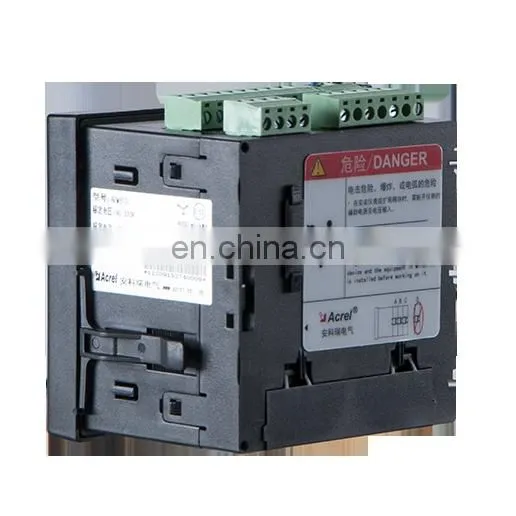

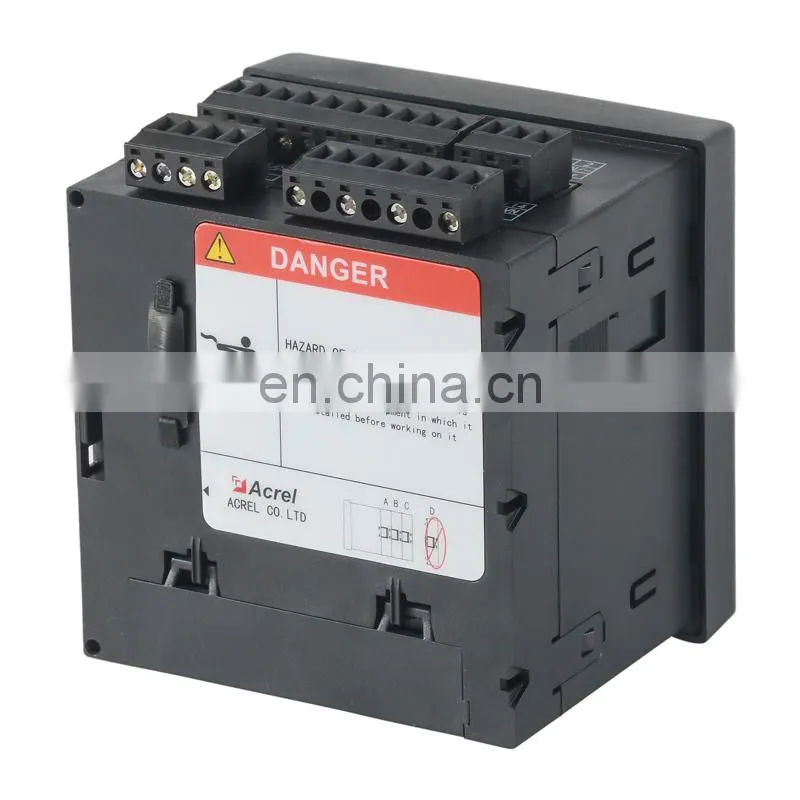

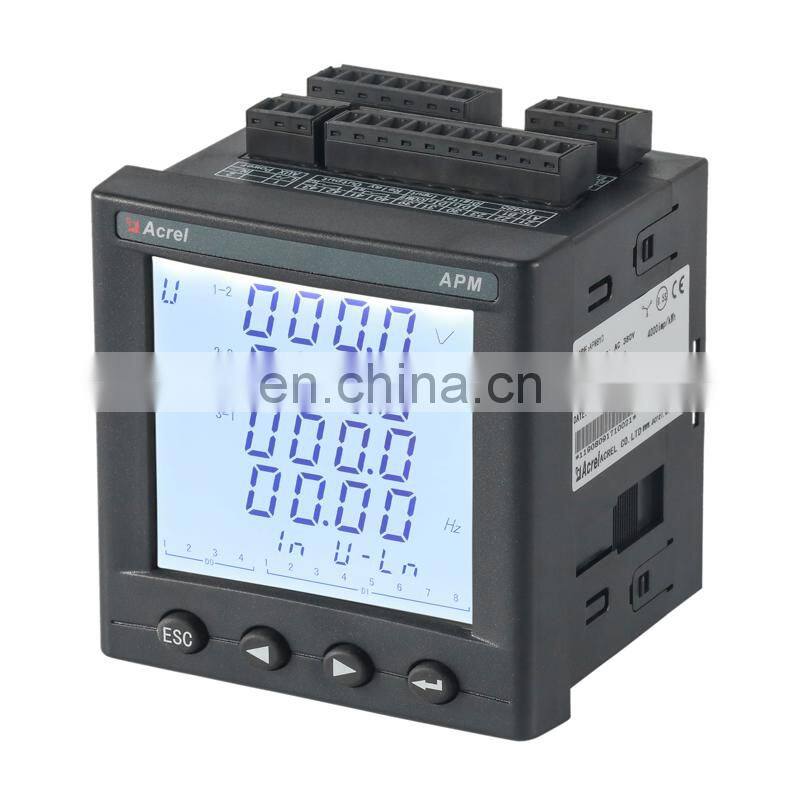

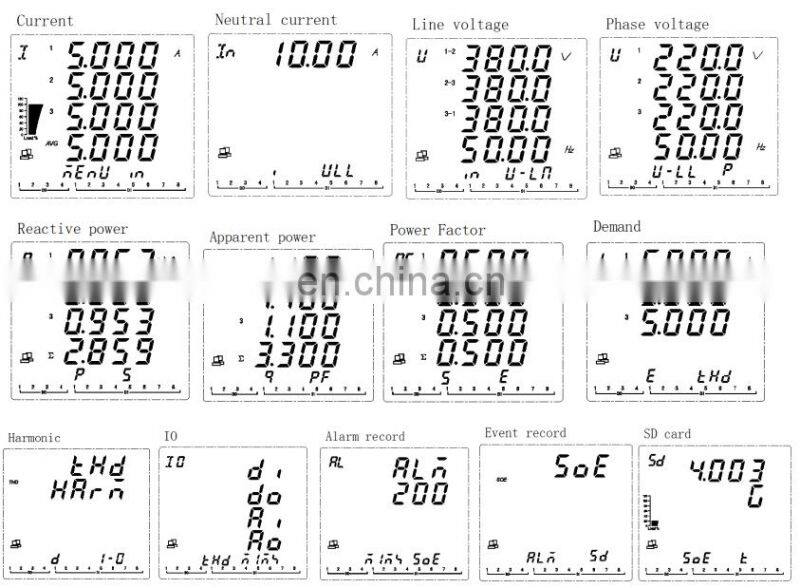

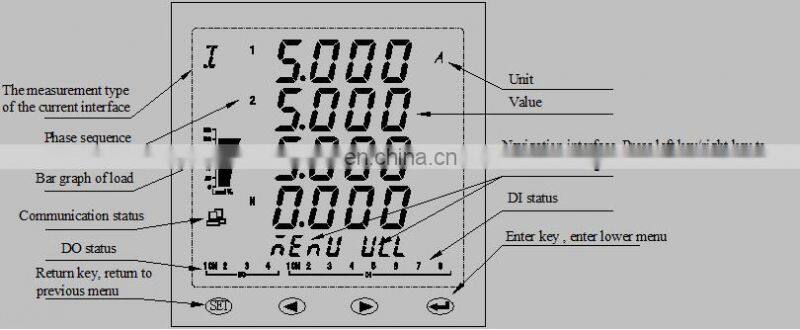

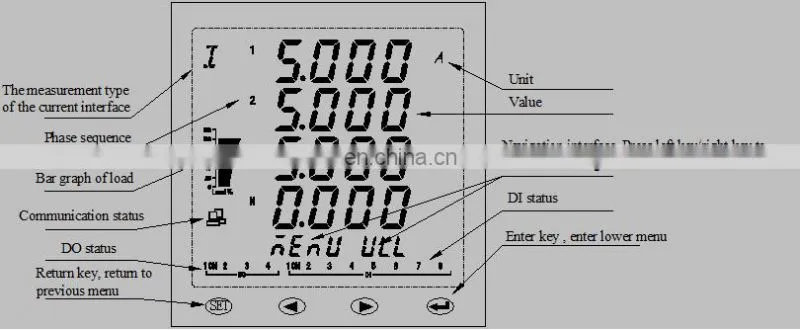

* Display:  8 digits LCD display U,I,P,Q,PF,kWh and other energy consumption,power                                       measurement,harmonic content

* Rated U and I:  Voltage:AC 100V,110V,400V,690V;Current:AC 1A, 5A, support 4 mm2 line                                       access;

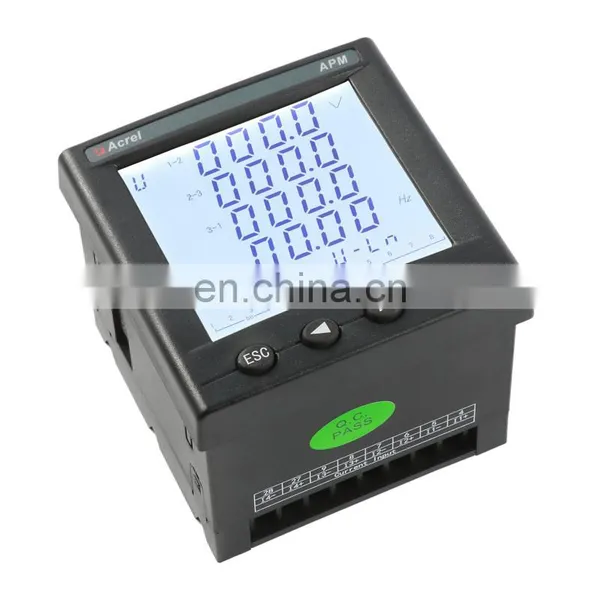

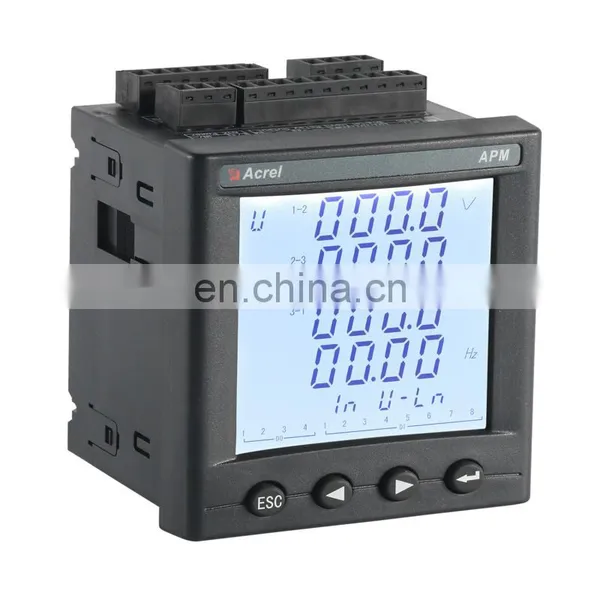

LCD Display

Function

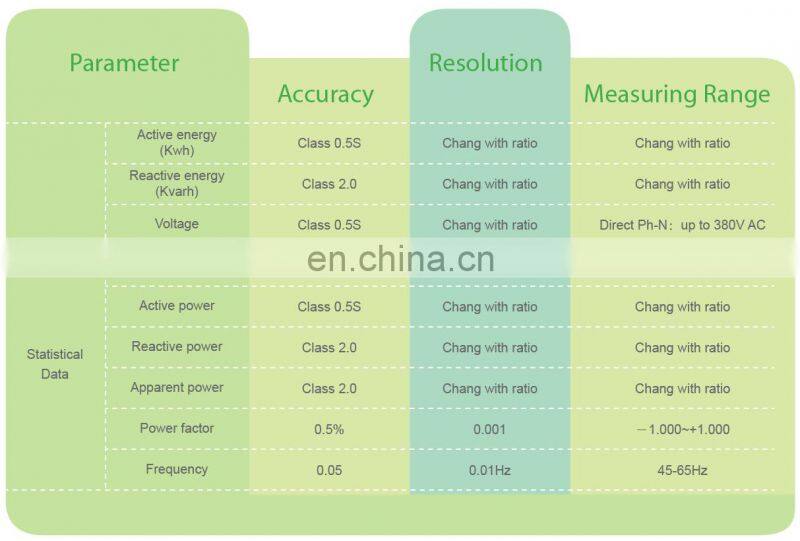

Accuracy Voltage,current and power:class 0.5s Active powe:class 0.5s Reactive power: class 2  Frequency Range:45-65Hz Power Supply AC/DC 85V~265V or AC/DC 115~415V  Pulse output Output mode: Optocoupler pulse with open collector; Pulse constant:4000(5A),8000(1A) imp/kWh;  Input consumption Voltage:Power consumption:<0.5VA; Current:Power consumption:< 0.5VA; Power supply:power consumption≤15VA
	Installation         Embedded installing         Dimension(L*W*H)         Faceplate(L×W):96*96mm         Cutout(L×W):92*92mm         Switch relay         DC 30V/3A AC 220V/3A         Starting current         0.1%

Wiring

Typical connection

Parameter

About us

Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.

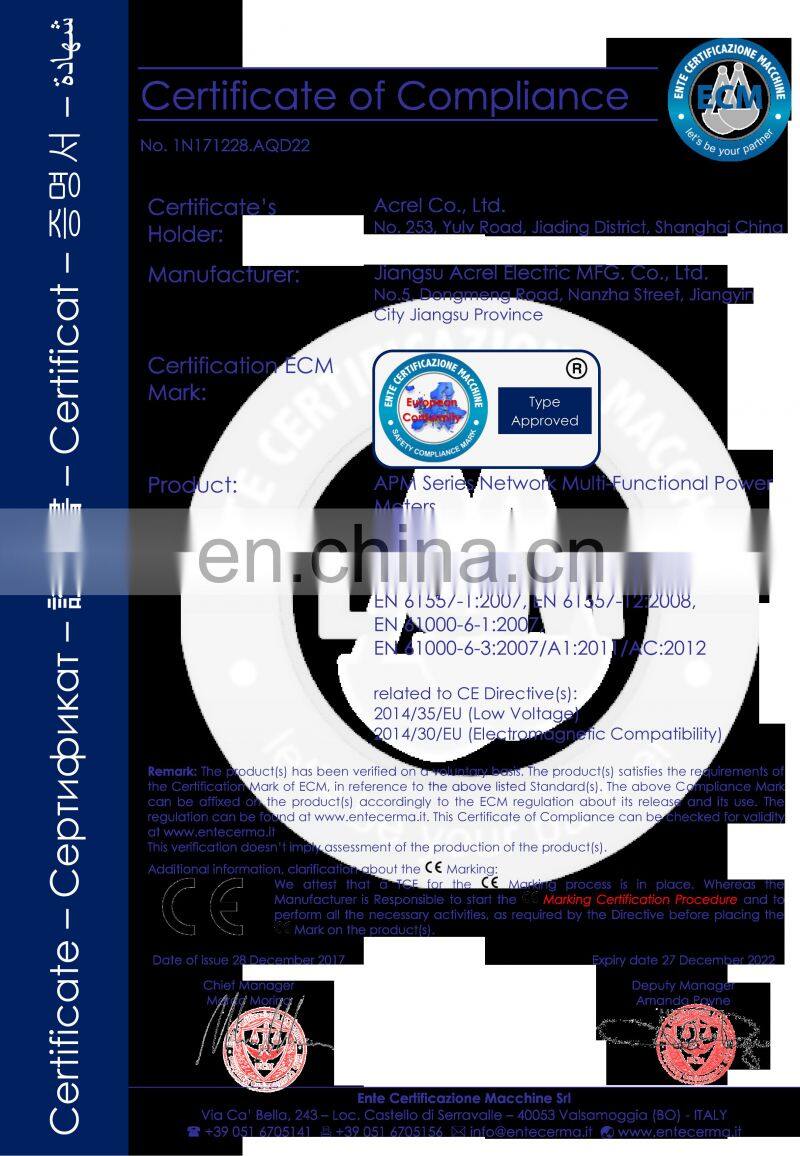

Certificate
