Acrel APM800 High Accuracy Network Electrical Analyzer With Multi Functions Optional CE
- T/T L/C Credit Card PayPal
You May Like
-
Panel Three Phase Multifunction Ethernet Communication Electric Power Analyser Monitor Meter
-
China Manufacturer APM800 Real-Time Demand Electrical Metering Equipment Panel Mounted Modbus Rs485 Energy Meter
-
Low Power Consumption IEC 61000 Standard Electrical Energy Meter Metering Equipment For Sale
-
Acrel ADL400 Three-phase Energy Metering Meter Din Rail Installation
-
Acrel ADL200 Single Phase Power Meter Direct Access 10(80A)
-
Acrel AWT100-4GHW 4G Communication Gateway With Global Frequency Bands Apply To Assist RS485 Equipment Cloud
Product Details
| Brand Name | Acrel | Place of Origin | China | |
| Model Number | APM800 | Operating Temperature | -20 °C ~ +65 °C | |

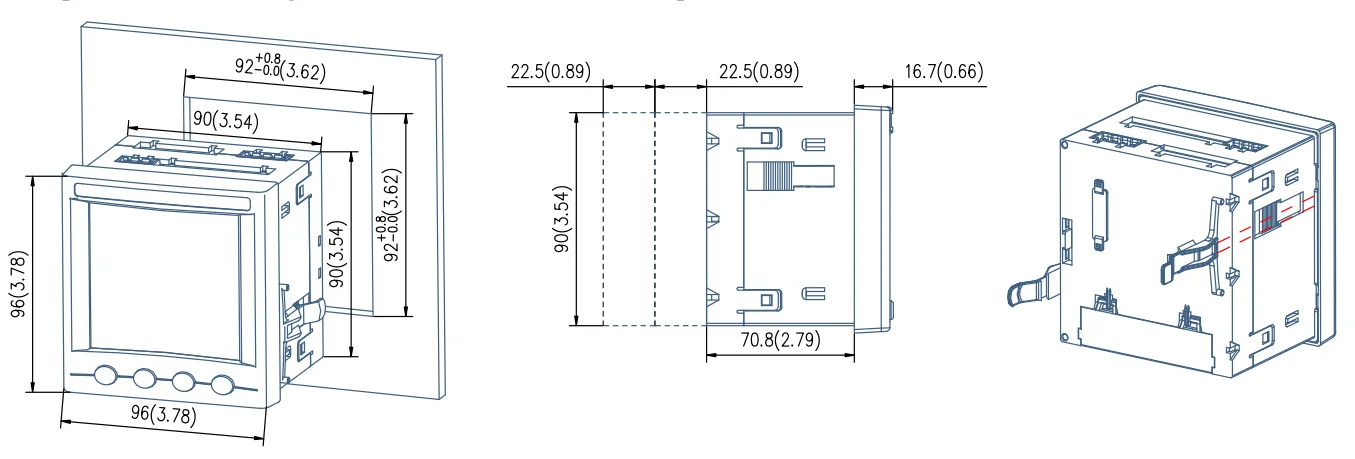

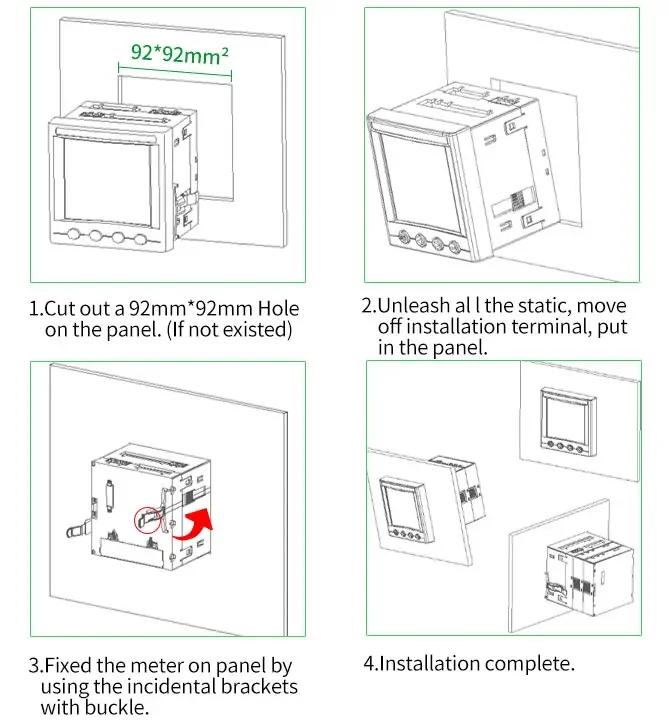

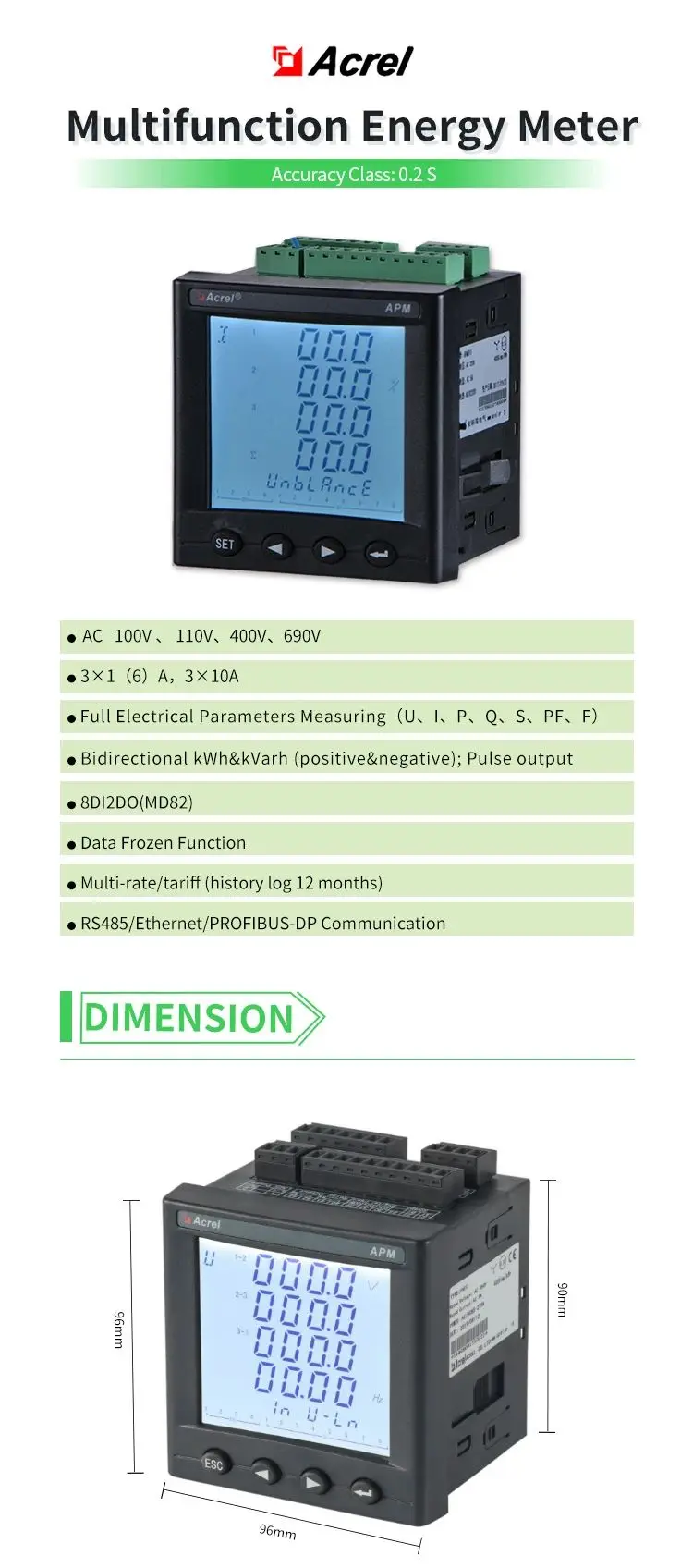

| Dimensions | 96*96*90mm |
Product Description
APM8xx Series AC Multi-function Smart Meter
The APM series meters are suited for measuring and displaying electrical quantities of electricity networks. The accuracy of active energy measurements corresponds to class 0.5S in accordance with the requirements of IEC62053-22.
The APM series meters offer many high-performance capabilities needed to meter and monitor an electrical installation in a compact 96 x 96 mm unit. All models include an RS-485 Modbus communication port, two digital inputs, two digital outputs, and alarming on critical conditions.
The model of APM810 is able to perform current/voltage harmonics for assessment of the power quality. In addition, the model of APM801 can offer active energy accuracy up to class 0.2S.

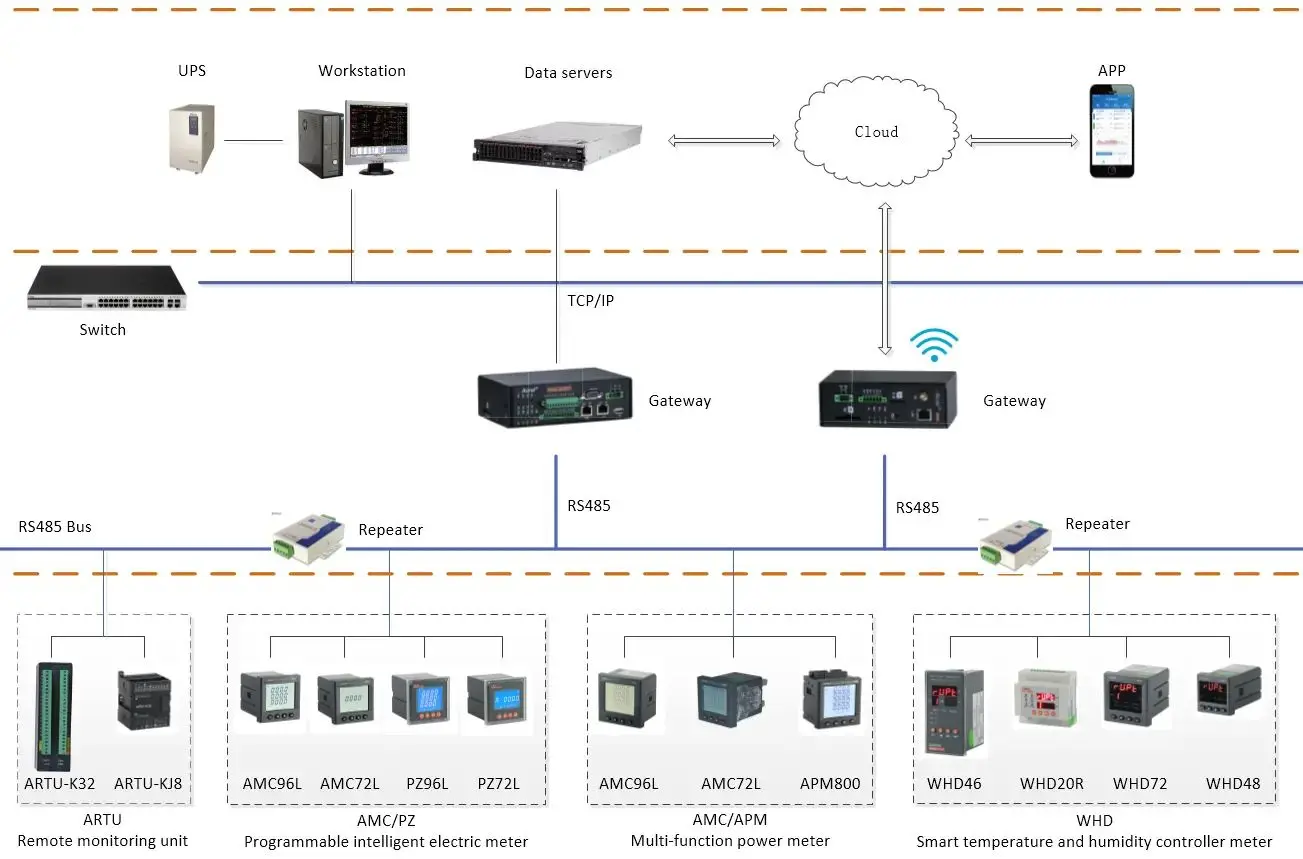

Expand any model with field-installable option modules that offer a choice of additional digital inputs and outputs, analog inputs and outputs, and Ethernet ports.
|
|

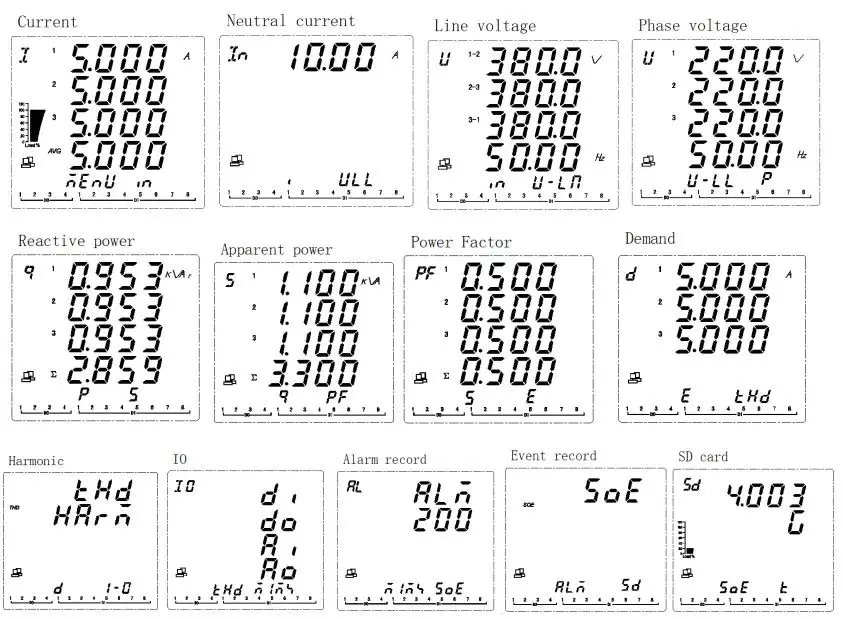

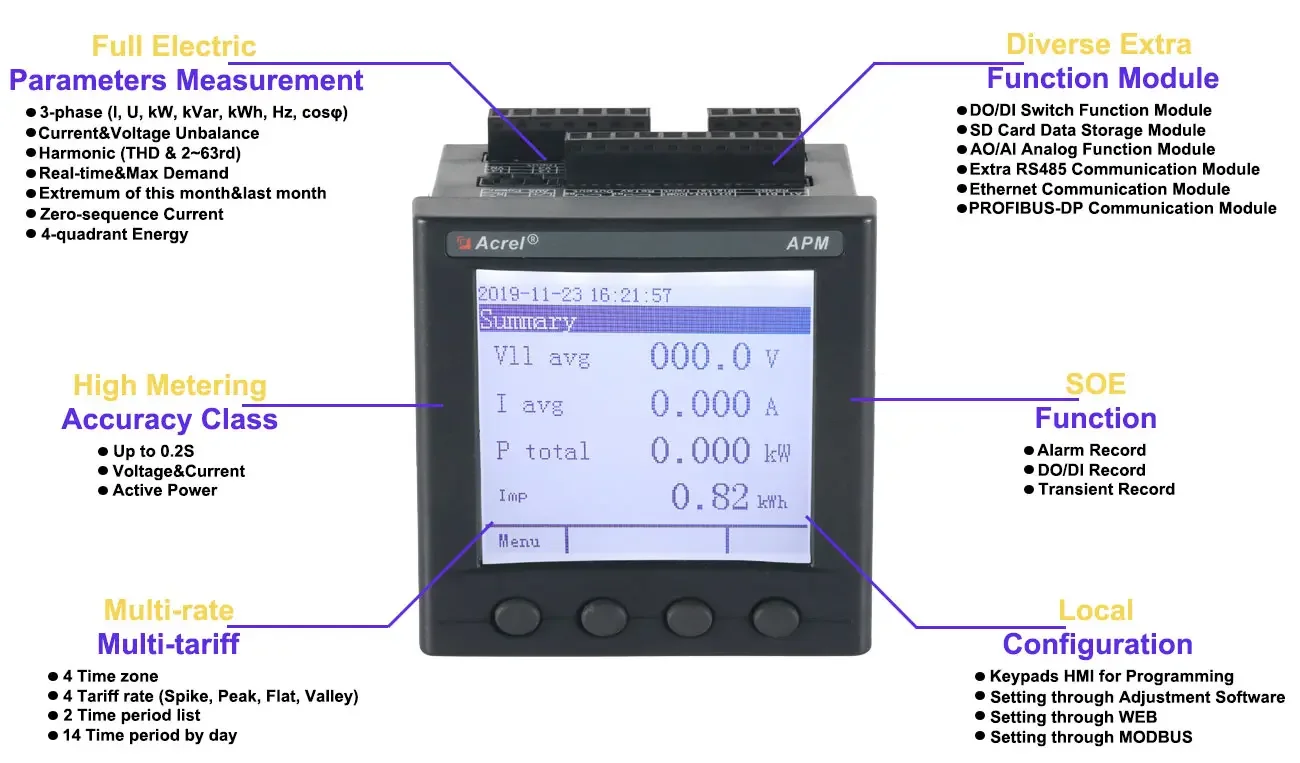

Picture | Description | Optional Function |
| ● Measurement: 3-phase kWh, kVarh, kW, I, U, Hz, Cosφ, Current&Voltage Unbalance, 2~63rd Harmonic(APM810, APM830), Real-time&Max Demand, Zero-sequence Current, 4-quadrant Energy and etc ● Current Rating: -/5A AC; -/1A AC (According to CTs) ● Voltage Rating: 100V, 110V, 400V, 690V AC ● Frequency: 45~65Hz ● Measurement accuracy: Class 0.5S (APM800,APM810) Class 0.2S (APM801,APM830) ● Communication (Main Body): RS485 (MODBUS-RTU) ● 66 alarm types and 16 external (SOE) event records ● Display: LCD Display ● Dimension: 96*96*90mm (L*W*H) ● Installation: Panel Embedded (Cut-out --92*92mm) ● Power Supply: 85~265V AC/DC; 115~415V AC/DC ● Standard&Certificate: CE | ● Muti tariff energies ● 8DO+2DI ● SD card ● the second RS485 ● Ethernet ● PROFIBUS-DP ● 4 channel 2M NTC temperature, measurement ● 2 channel PT100 temperature, measurement ● 1 channel temperature and humidity |
| Full Electric Parameters Measurement ● 3-phase (I, U, kW, kVar, kWh, Hz, cosφ) ● Current&Voltage Unbalance ● Harmonic (THD & 2~63rd) ● Real-time&Max Demand ● Extremum of this month&last month ● Zero-sequence Current ● 4-quadrant Energy |
| Diverse Extra Function Module ● Modular Design (Easy for Function Expansion) ● Support up to 3 Expanded Module at same time |
| DO/DI Switch Function Module ---MD82 ● 2 DO Relay Output ● 8 DI Digital Input ● Save up to 128 pcs DO/DI Data in Main Body ● Paired with MLOG to save more DO/DI Records |
| SD Card Data Storage Module ---MLOG ● Expand Number of SOE Storage ● Support Storage of SD Cards up to 32GB (standard 4GB) |
| Extra RS485 Communication Module ---MCM ● Interface: RS485 Interface ● Protocol: MODBUS-RTU ● Support Salve&Master Mode |
| Ethernet Communication Module ---MCME ● Interface: RJ45 Interface ● Protocol: MODBUS-TCP/HTTP/DHCP/SMTP ● Could Serve as Serial Server ● Plus 1 Extra RS485 Interface |
| PROFIBUS-DP Communication Module ---MCMP ● Interface: PROFIBUS-DP Interface ● Protocol: PROFIBUS-DP ● Plus 1 Extra RS485 Interface |
| SOE Function (Main Body) ● Alarm Record (128 pcs records of 66 kinds&13 categories) ● DO/DI Record (128 pcs DO/DI records) ● Transient Record (800 pcs transient waveform records) ● Max Records pcs above could be expanded by SD Card |

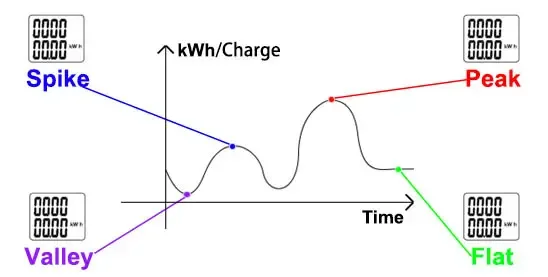

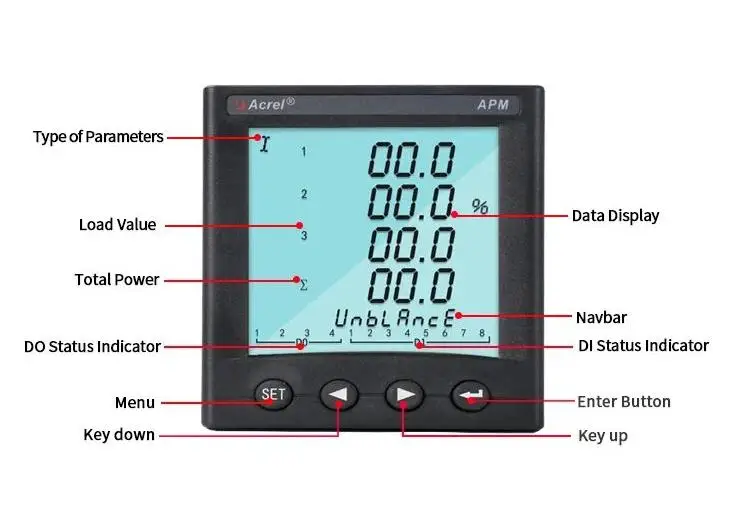

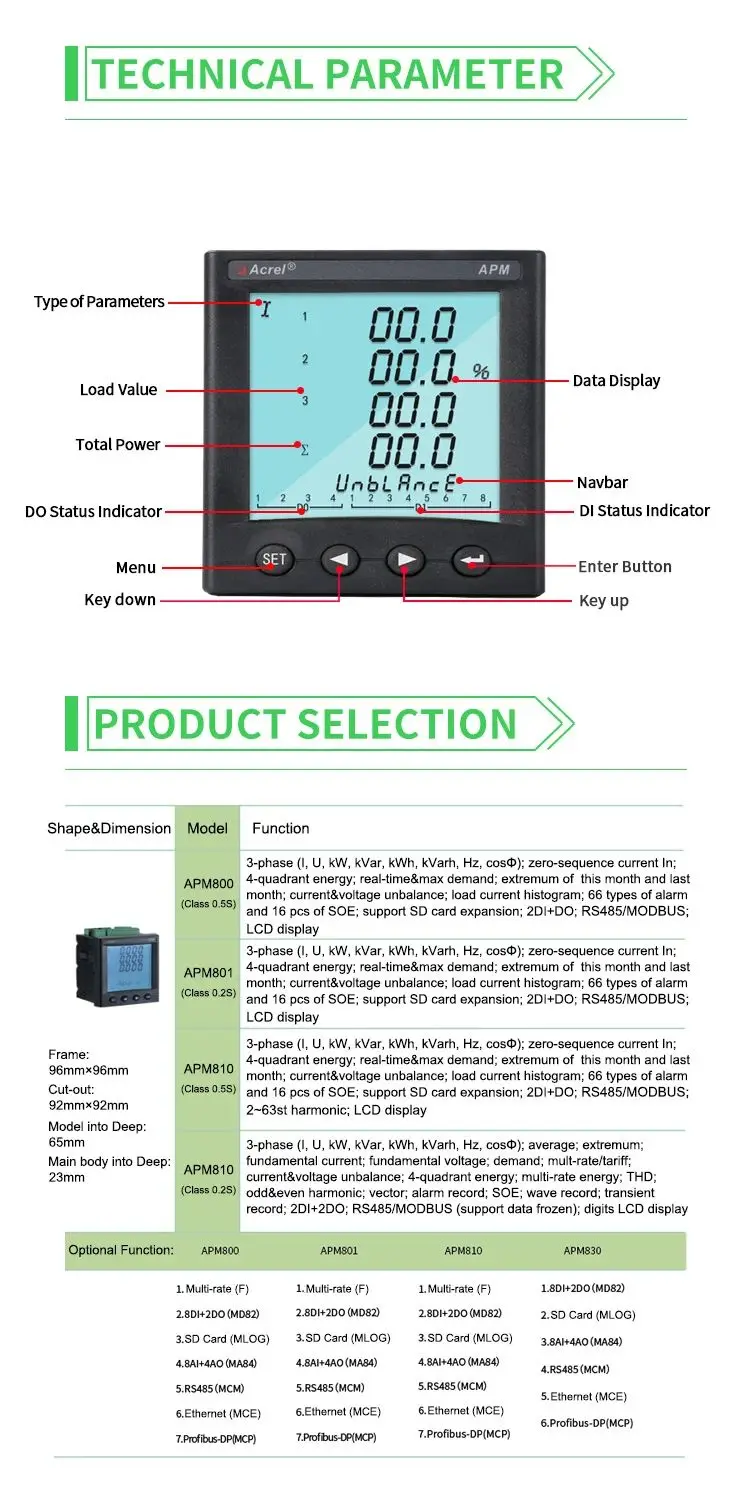

| Multi-rate/Multi-tariff ● 4 Time zone ● 4 Tariff rate (Spike, Peak, Flat, Valley) ● 2 Time period list ● 14 Time period by day |
| Local Configuration ● Keypads HMI for Programming ● Setting through Adjustment Software ● Setting through WEB ● Setting through MODBUS communication |
Technical Parameter | Value | |
Signal | Connection | 3 phase 3 wire, 3 phase 4 wire |
Frequency | 45~65Hz | |
Voltage | Rated value: AC 100V,110V,400V,690V | |
Overload: 1.2 times rated value(continuous); 2 times rated value(1 second) | ||
Power consumption:<0.5VA (per channel) | ||
Current | Rated value: AC 1A, 5A | |
Overload: 1.2 times rated value(continuous); 10 times rated value(1 second) | ||
Power consumption:<0.5VA (per channel) | ||
Measurement accuracy | Voltage, current, and power | Class 0.5S (APM800,APM810) Class 0.2S (APM801,APM830) |
Active power | ||
Reactive power | Class 2(APM800, APM810), Class 0.5(APM801,830) | |
Harmonic | 1%(2~42nd),2%(43~63rd) | |
Switch inputs | Passive contact inputs, built-in power supply | |
Relay outputs | Contact type: open contact in the main part, changeover contact in module Contact capacity:3A/AC 250V 3A/DC 30V | |
The pulse output of energy | Output mode: Optocoupler pulse with open collector Pulse constant:4000(5A),8000(1A) imp/kWh | |
Analog outputs | DC 0~20mA,4~20mA,0~5V,1~5V output, accuracy class 0.5%, load resistance ≤ 500Ω | |
Analog inputs | DC 0~20mA,4~20mA,0~5V,1~5V input, accuracy class 0.5% | |
Storage card | Standard capacity:4G, TF card up to 32G capacity | |
Communication | RS485(Modbus-RTU) | |
Profibus(Profibus-DP) | ||
Ethernet(Modbus-TCP,HTTP,DHCP) | ||
Auxiliary power supply | Operating range: AC/DC 85V~265V or AC/DC 115~415V(P2) | |
Power consumption: Power consumption of the main part ≤ 15VA | ||
Safety | Insulation resistance | >100MΩ |
Electromagnetic compatibility | IEC 61000 standard (Level 4) | |
Protection level | IP54(Front) | |
|
3-phase 4-wire connection via 3 extra CTs |
|
3-phase 3-wire connection via 2 extra CTs & 2 extra PTs |
|
