APM series meters
1.General
The APM series meters are suited for measuring and displaying electrical quantities of electricity networks. The accuracy of active energy measurements corresponds to class 0.5S in accordance with the requirements of IEC62053-22. The APM series meters offers many high-performance capabilities needed to meter and monitor an electrical installation in a compact 96 x 96 mm unit.All models include an RS-485 Modbus communication port, two digital input, two digital output,and alarming on critical conditions.The model of APM810 is able to perform current/voltage harmonics for assessment of the power quality. In addition the model of APM801 can offer the active energy accuracy up to class 0.2S. Expand any model with field-installable option modules that offer a choice of additional digital inputs and outputs, analogue inputs and outputs, and Ethernet port.
2.Technical features
3. Functions
| Features | APM800 | |
| Instantaneous rms values | Current,volatge,frequency | ♦ |
| Active,reactive,apparent power Total&per phase | ♦ | |
| Power factor Total & per phase | ♦ | |
| Energy values | Active,reactive,apparent energy | ♦ |
| Pulse | Pulse outputs for active and reactive energy | ♦ |
| Demand values |
Current Present & max Active,reactive,apparentpower Present & max |
♦ |
| Power quality measurements | Voltage/current unbalance | ♦ |
| Harmonic distortion Current & voltage | - | |
| Individual harmonics Current&voltage Up to the 63rd harmonics © | - | |
| Data recording | Min/max of instantaneous values | ♦ |
| Alarms | ♦ | |
| Sequence of Event | ♦ | |
| Communication | RS 485 / Modbus-RTU | ♦ |
| I/O | 2 digital inputs and 2 digital outputs | ♦ |
| Optional Features | MD82 :8digital inputs and 2 digital outputs(8DI+2DO) | ◊ |
| MLOG : MicroSDcard | ◊ | |
| MA84 : 8Analogue inputs+4Analogue outputs(8AI+4AO) | ◊ | |
| MCM : 1 RS485 / Modbus-RTU | ◊ | |
| MCP : 1 Profibus-DP | ◊ | |
| MCE : 1 Ethernetfor Modbus-TCP / http / DHCP | ◊ | |
Note © :The accuracy is 1% for 2nd-42nd harmonics in frequency of 45-65Hz range.The accuracy is 2% for 43rd-63rd harmonics in frequency of 50Hz.
Remarks : Symbol "♦" means standard,"◊" means optional,"-" means Not support.

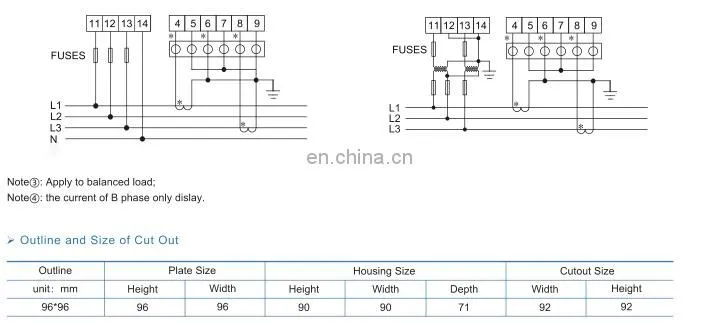

4.Installation
Acrel Co., Ltd. [Stock Code: 300286.SZ] is one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users.
Since June 2003, we has always been focused on the research, production and sales of intelligent electric meters. We concentrates on providing products and services to help customers improve electricity efficiency and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4kV substation automation system, building mounted photovoltaic (BMPV) system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.
