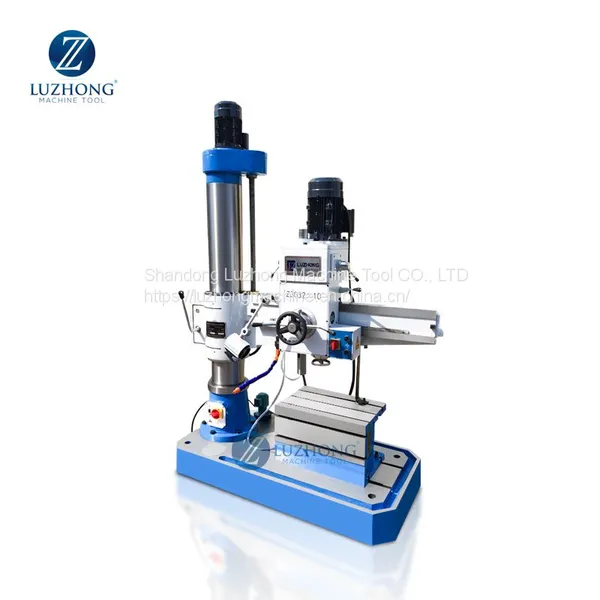

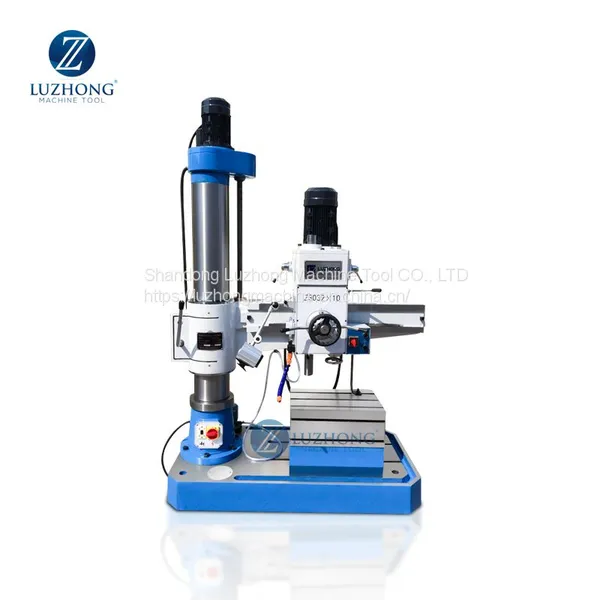

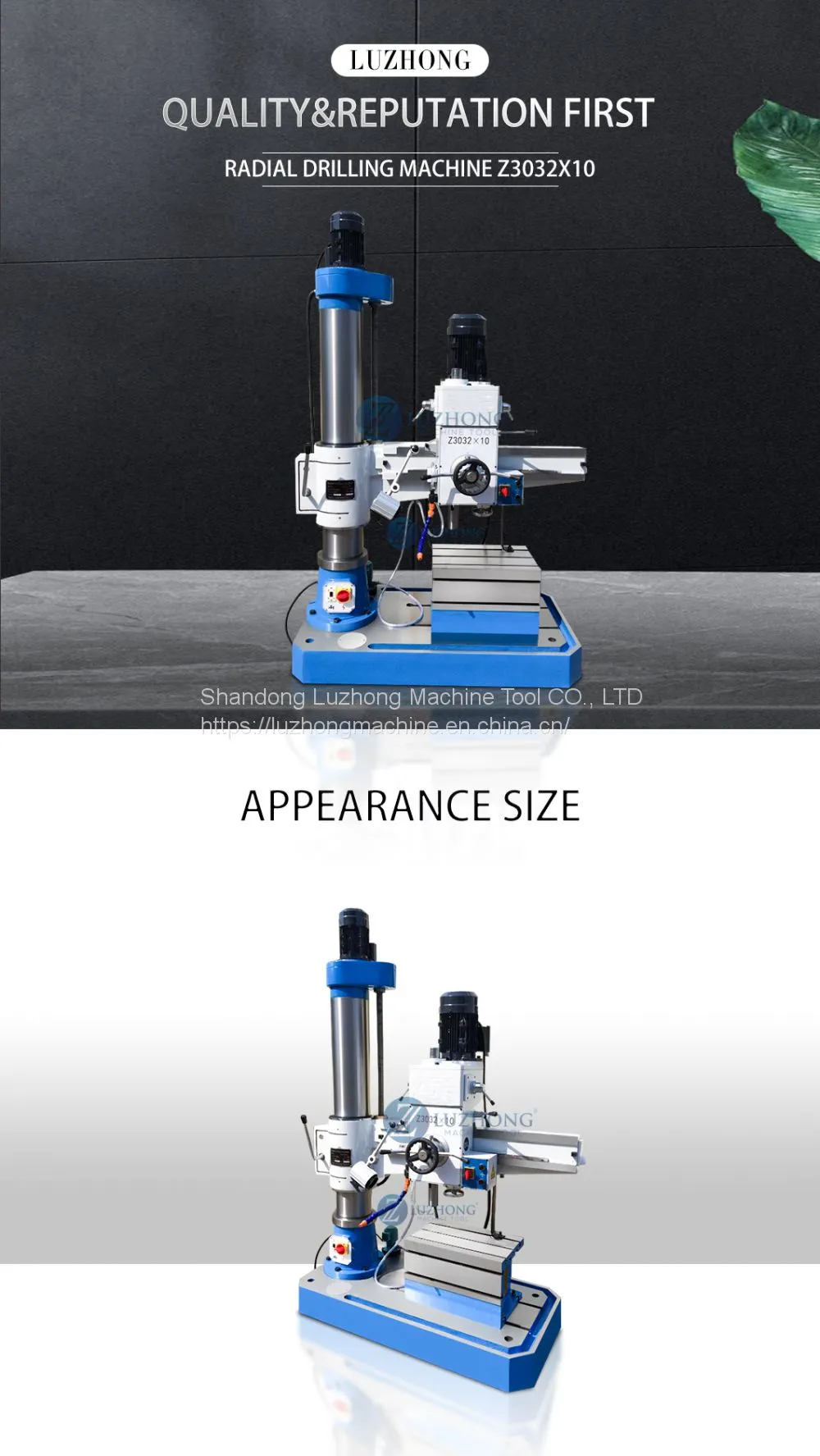

Z3032x10 Multi Universal Radial Drilling Machine
Product Description
Product description:
1. Appearance beautiful appearance, the overall layout of symmetry and coordination.
2. Adopt mechanical drive, mechanical clamping, mechanical speed change operation is simple.
3. Guide rail after ultra high frequency quenching.
4. Reliable structure, excellent manufacturing, to ensure the accuracy of the machine tool.
5. To increase the machining range of drilling, boring, tapping, threading, countersink flat, drilling, reaming and reaming functions, such as, widely used in large, medium and small enterprises, villages and towns and individual industrial machining.
Product Parameters
Specifications | Units | Z3032×10 |
Max. drilling diameter | mm | Φ32 |
Column diameter | mm | 200 |
Distance of headstock horizontal movement | mm | 710 |
Distance spindle nose and working surface of base | mm | 330-1060 |
Rocker arm lift distance | mm | 730 |
Spindle travel | mm | 120 |
Spindle taper | MT4 | |
Spindle speeds range | r/min | 108 162 262 398 665 1000（6 steps） |
Spindle feeding range | mm/r | 0.10 0.16 0.25（3 steps） |
Max. spindle allows feed resistance | N | 5300 |
Rocker arm lifting speeds | m/min | 1.21 |
Rocker rotary angle | ° | + 90° |
Main motor power | kw | 1.5/2.2 |
Lifting motor power | kw | 0.55 |
Cooling pump motor power | kw | 0.04 |
Net weight | kg | 1080 |
Overall dimensions（L×W×H） | mm | 1400×660×2060 |

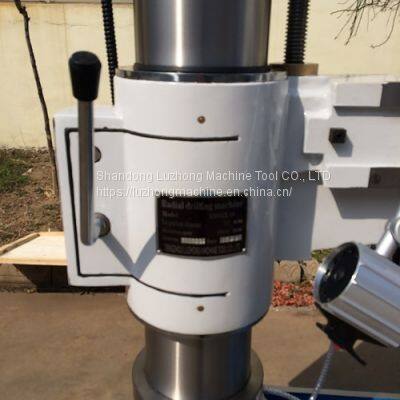

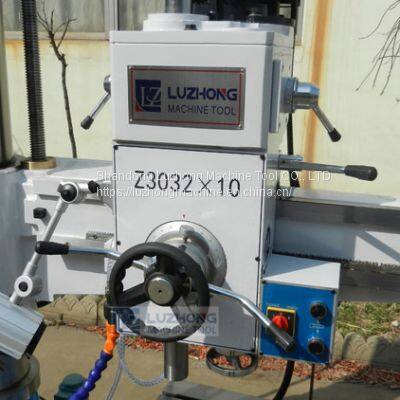

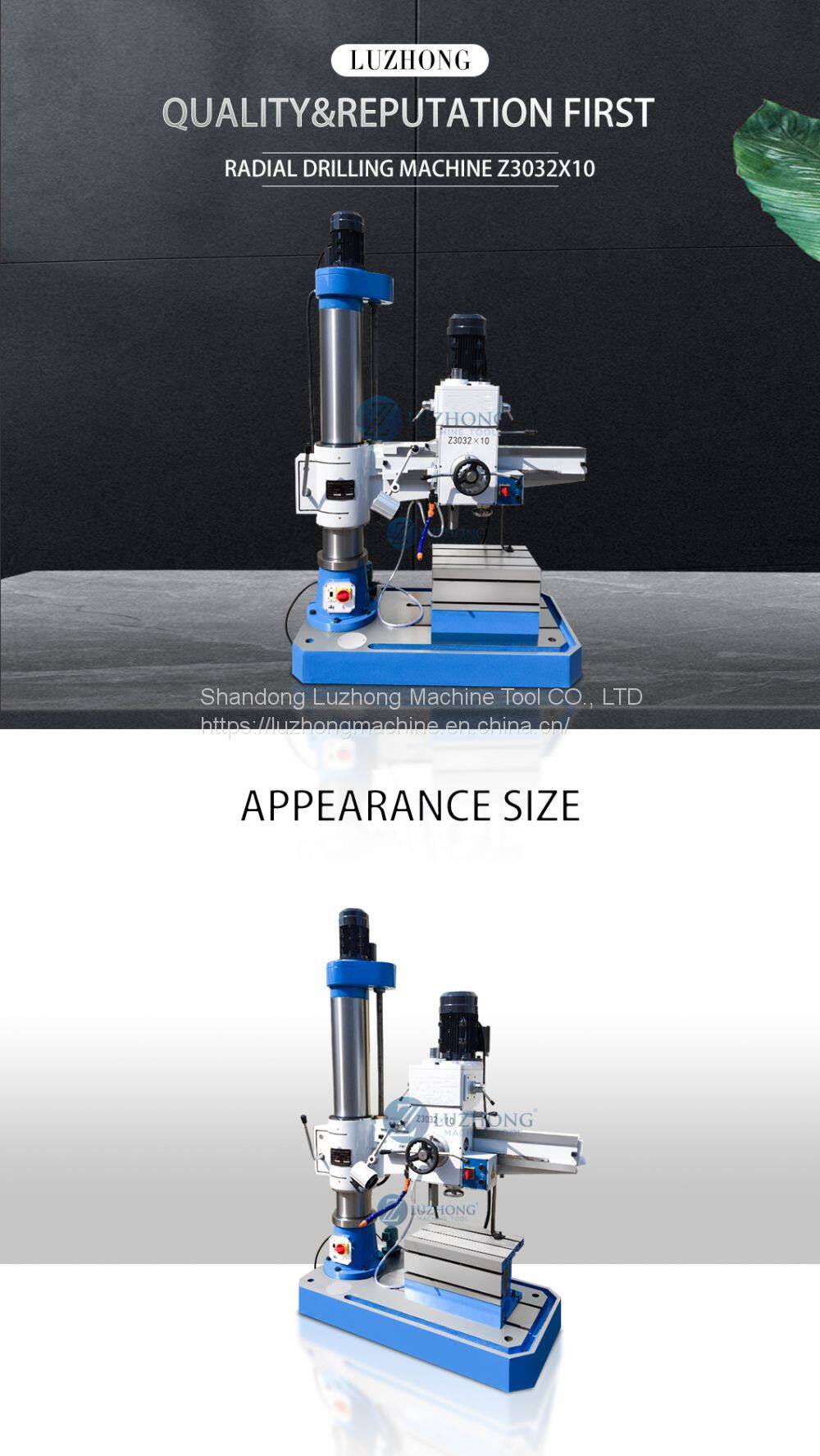

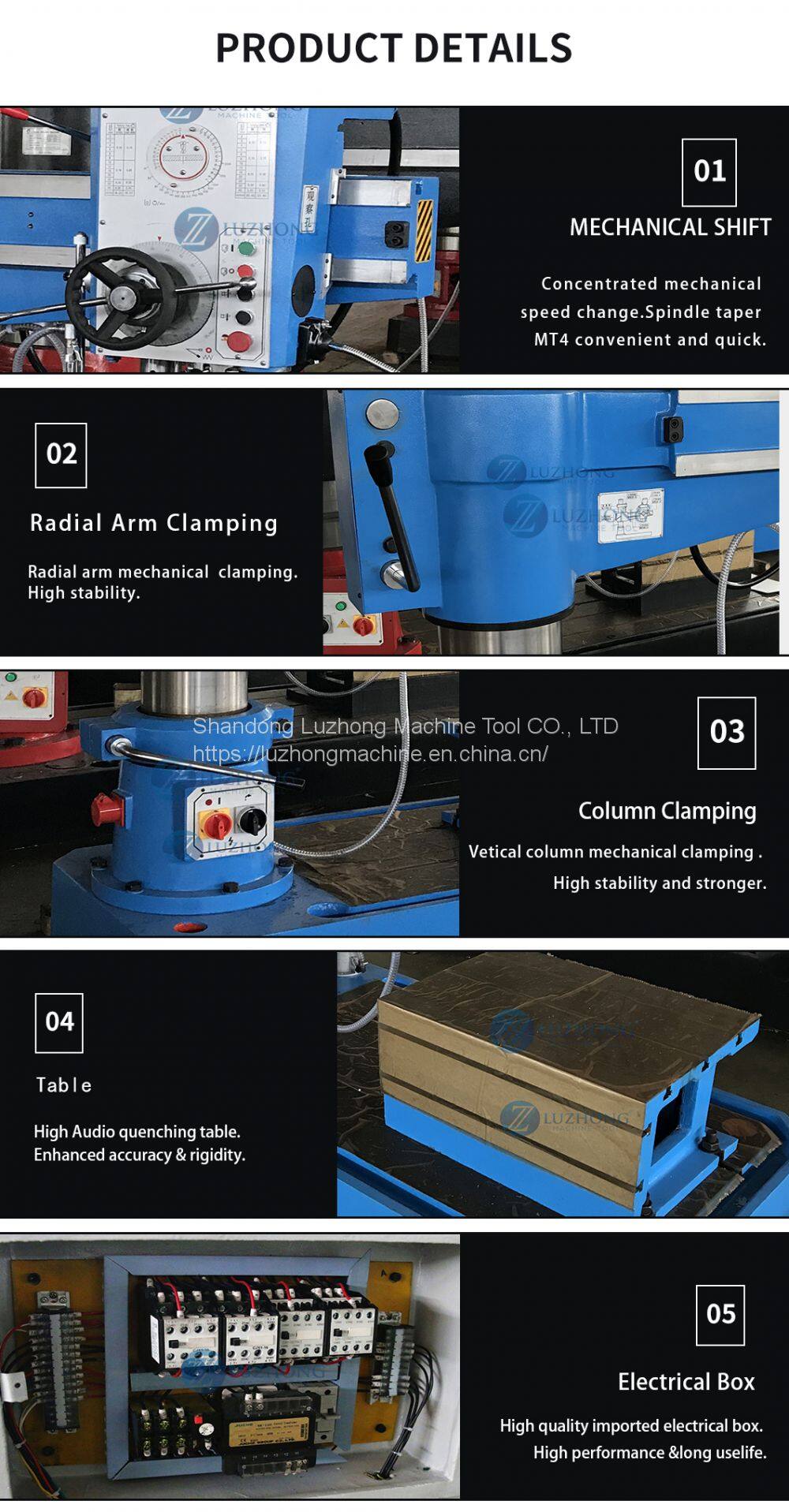

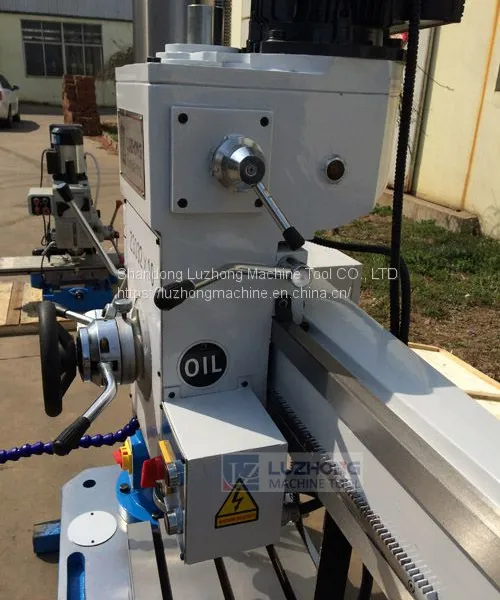

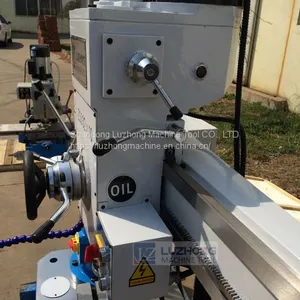

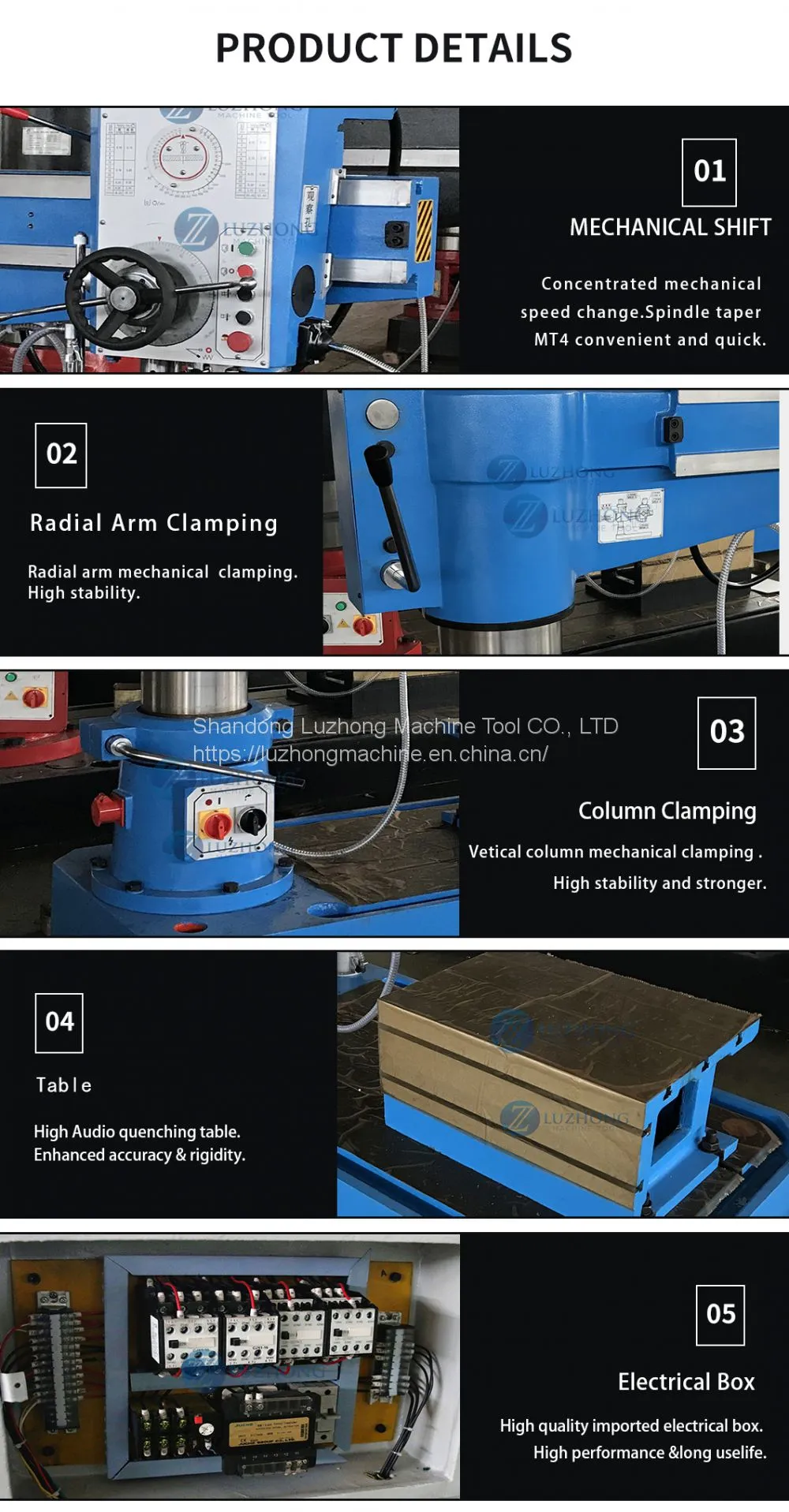

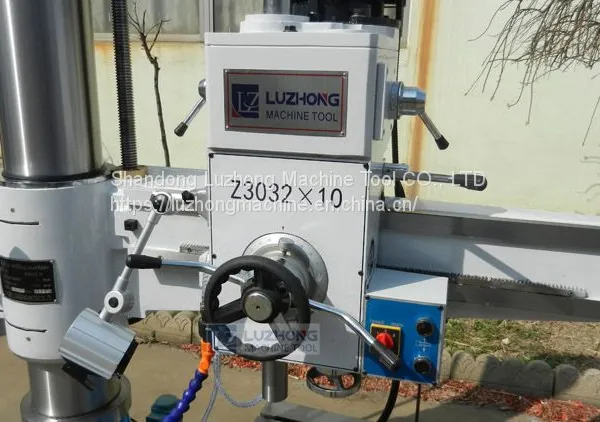

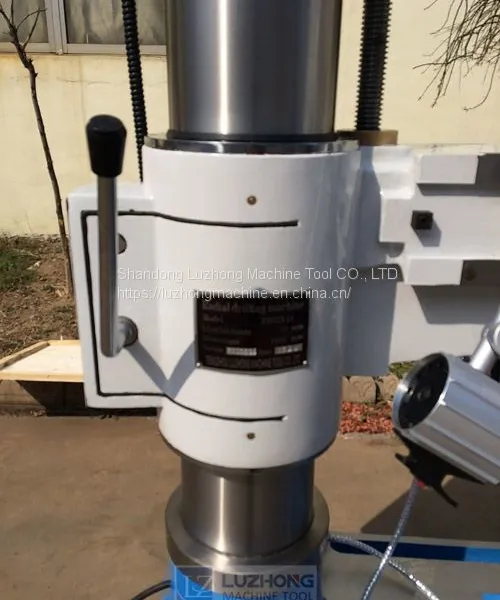

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
