Z5032 Z5040 Z5045 Small Metal Cheap Vertical Drilling Machine

FOB Price

USD $1400 - $3000 / Set

1 Set(Min.Order)

Supply Ability 3000 Set / Sets per Month
Port Qingdao Port
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow
Delivery Detail20 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Luzhong	Place of Origin	China
Model Number	Z5030 Z5040 Z5045	Certification	GS, CE, RoHS, ISO 9001
Weight	430KG	Dimension(LWH)	1850×750×1000 mm
Voltage	Customized	Condition	New
Power(W)	0.75KW	CNC or Not	Normal
Drilling Speed	1400 r.p.m

Product Description

Z5032 Z5040 Z5045 Small Metal Cheap Vertical Drilling Machine

Product Description

Product Parameters

Specifications	Z5032	Z5040	Z5045
Max.drilling dia.	32mm	40mm	45mm
Spindle taper	M.T.3 or R8	M.T.4	M.T.4
Spindle travel	130mm	130mm	130mm
spindle speed steps	6	6	6
spindle speed range 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Min.distance from spindle axis to column	283mm	283mm	283mm
Max.distance from spindle nose to worktable	725mm	725mm	725mm
Max.distance from spindle nose to stand table	1125mm	1125mm	1125mm
Max.travel of headstock	250mm	250mm	250mm
Swivel angle of headstock (horizontal/perpendicular)	360°/±90°	360°/±90°	360°/±90°
Max.travel of worktable bracket	600mm	600mm	600mm
Worktable size of avaliablity	380×300mm	380×300mm	380×300mm
Swivel angle of table horizontally	360°	360°	360°
Table leaned	±45°	±45°	±45°
Size of stand worktable of avaliability	417×416mm	417×416mm	417×416mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
speed of motor	1400 r.p.m	1400 r.p.m	1400 r.p.m
Net weight/Gross weight	430kg/480kg	432kg/482kg	435kg/485kg
Packing size	1850×750×1000 mm	1850×750×1000 mm	1850×750×1000 mm

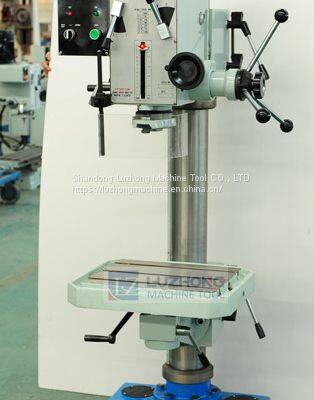

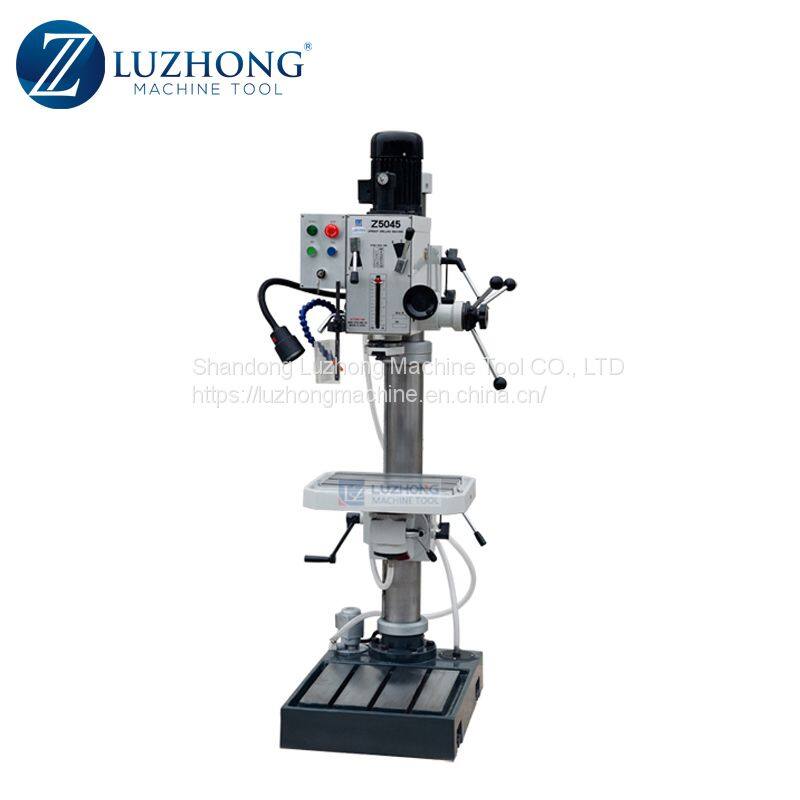

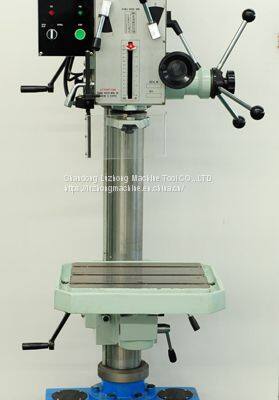

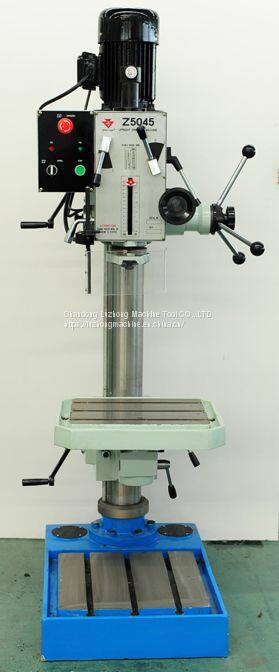

Detailed Photos

Company Profile

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
