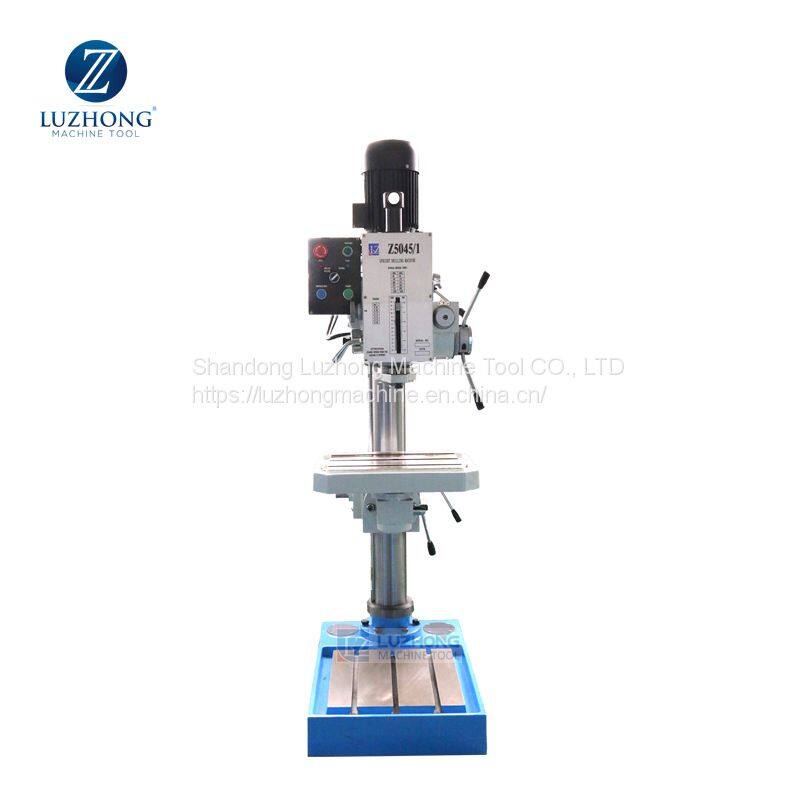

Z5032-1 Z5040-1 Z5045-1 Small Metal Cheap Vertical Drilling Machine
Product Description
Product Parameters
Specifications |
Z5032/1 |
Z5040/1 |
Z5045/1 |
Max.drilling dia. |
32mm |
40mm |
45mm |
Spindle taper |
M.T.3 or R8 |
M.T.4 |
M.T.4 |
Spindle travel |
130mm |
130mm |
130mm |
Step of speed |
6 |
6 |
6 |
Range of spindle speed 50Hz |
80-1250 r.p.m |
80-1250 r.p.m |
80-1250 r.p.m |
60Hz |
95-1500 r.p.m |
95-1500 r.p.m |
95-1500 r.p.m |
Step of spindle auto-feeding |
6 |
6 |
6 |
Range of spindle auto-feeding amount |
0.06-0.30mm/r |
0.06-0.30mm/r |
0.06-0.30mm/r |
Min.distance from spindle axis to column |
290mm |
290mm |
290mm |
Max.distance from spindle nose to worktable |
725mm |
725mm |
725mm |
Max.distance from spindle nose to stand table |
1125mm |
1125mm |
1125mm |
Max.travel of headstock |
250mm |
250mm |
250mm |
Swivel angle of headstock(horizontal) |
360° |
360° |
360° |
Max.travel of worktable bracket |
600mm |
600mm |
600mm |
Worktable size of avaliability |
380×300mm |
380×300mm |
380×300mm |
Swivel angle of table horizontally |
360° |
360° |
360° |
Table leaned |
±45° |
±45° |
±45° |
Size of stand worktable of avaliability |
417×416mm |
417×416mm |
417×416mm |
Motor power |
0.75KW(1HP) |
1.1KW(1.5HP) |
1.5KW(2HP) |
speed of motor |
1400 r.p.m |
1400 r.p.m |
1400 r.p.m |
Cooling pump power |
0.04KW |
0.04KW |
0.04KW |
Net weight/Gross weight |
437kg/487kg |
442kg/492kg |
442kg/492kg |
Packing size |
1850×750×1000mm |
1850×750×1000mm |
1850×750×1000mm |

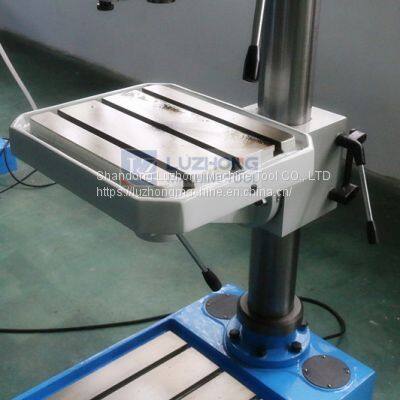

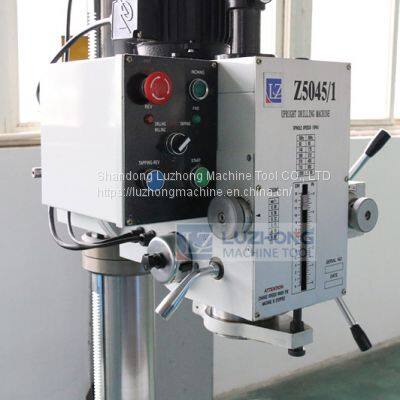

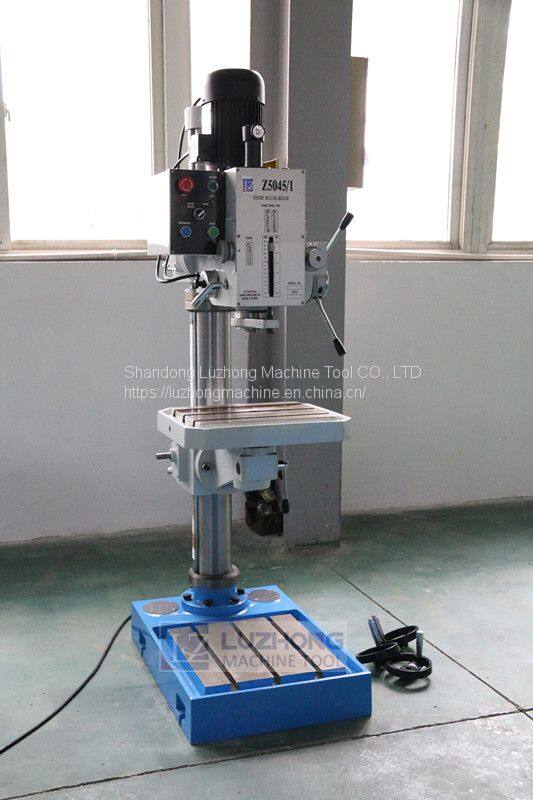

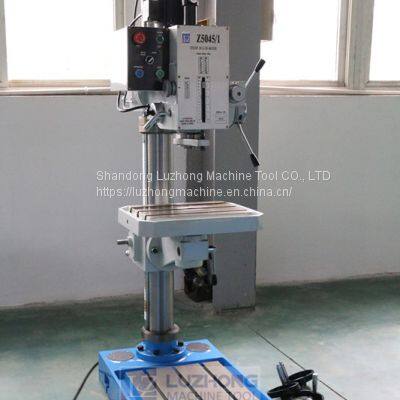

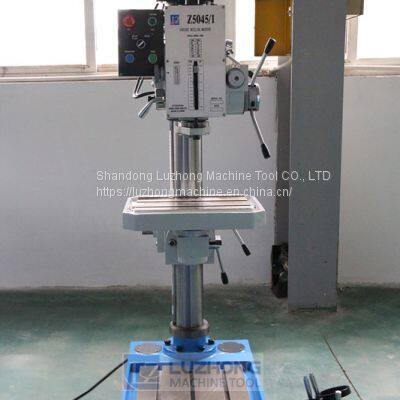

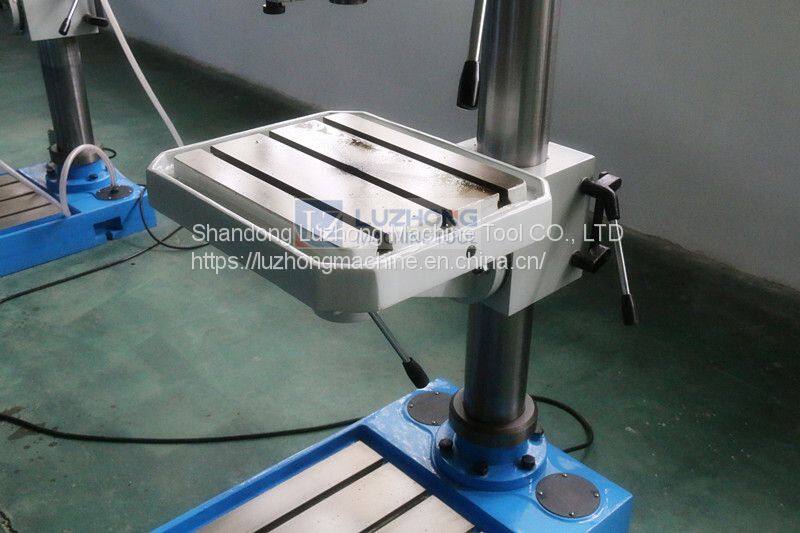

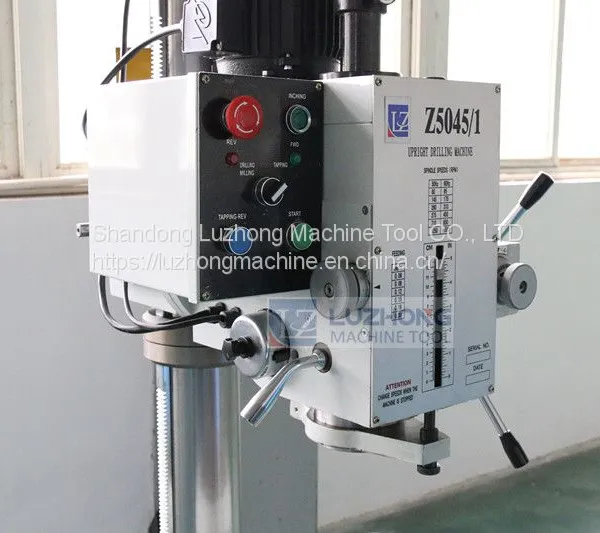

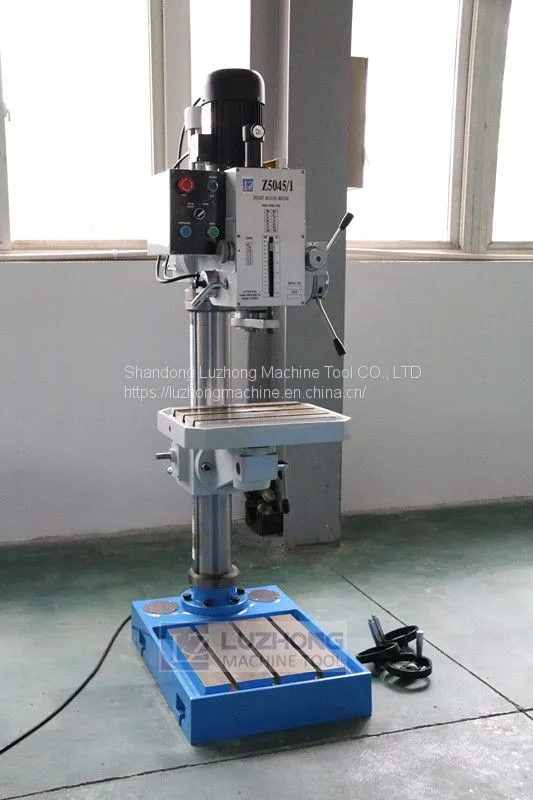

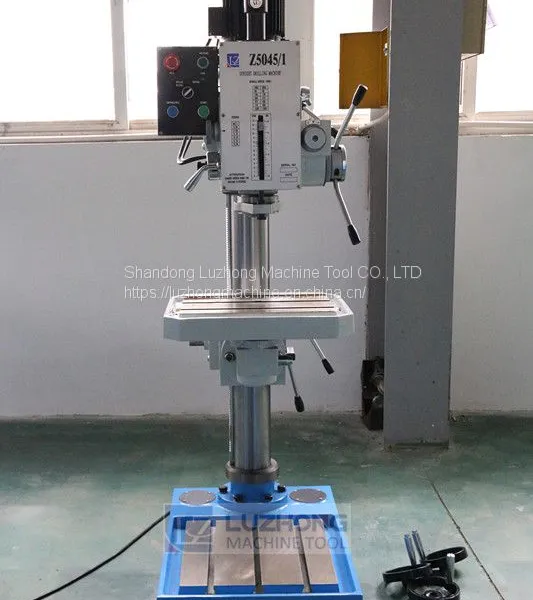

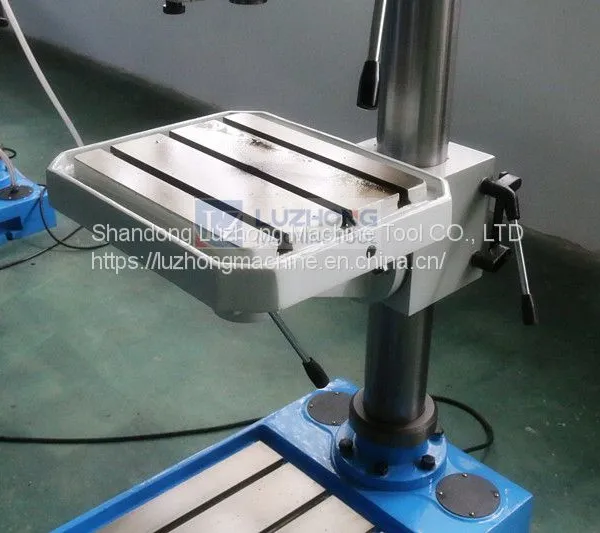

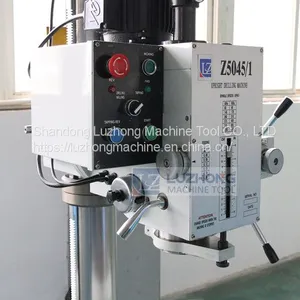

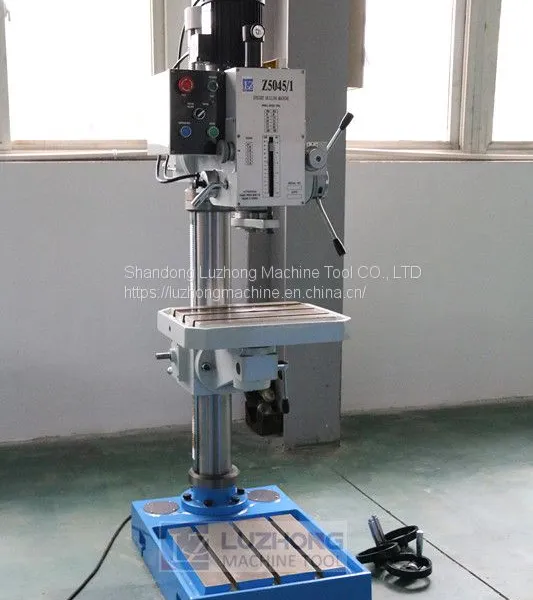

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
