Z5050 Vertical drilling machine with high precision
Product Description
The main performance characteristics：
1 .Novel design and beautiful appearance, the structure of the chips, a wide range of variable speed.
2 .Unique working table, electric and manual lifting mechanism, easy to operate.
3. the table can rotate 180 degrees or 45 degrees, and it can be used for a wide range of application.
4.The is provided with a cooling device and tapping device.
5 .Electrical system to implement the IEC electrical standards, with a short circuit and overload protection function, the main motor power large.
6 .Unique protective devices, safe and reliable.
Application：
This machine is designed for drilling,counter boring,reaming,tapping,spot facing,etc.The max drilling diameter is 50mm on small or middle sized workpieces.It is widely used in machine works and repair shops for single piece or small lot production,having the features of abundant horse power and high rigidity when compared with all the others of its kind at home and abroad.
Standard accessories:
Work lamp,coolant system,fender device,tool box and tools
Optional accessories:
Lifting table by motor
Product Parameters
Specifications |
Units |
Z5050 |
Max. Drilling diameter |
mm |
50 |
Spindle taper |
MT4 |
|
Distance spindle axis to column generating line |
mm |
375 |
Spindle travel |
mm |
230 |
Spindle speeds range |
r/min |
54-2090 |
Max. spindle nose to table |
mm |
800 |
Max. spindle nose to base |
mm |
1300 |
Dimension of worktable surface |
mm |
600x600 |
Dimension of base table |
mm |
860x600 |
Width of T slot |
18 |
|
Spindle feeds |
mm/r |
0.05,0.1,0.15, 0.2,0.25,0.3 |
Spindle motor power |
K w |
3.0/2.4 |
Coolant motor |
w |
40 |
G.W/N.W |
kg |
920/820 |
Overall dimension |
cm |
61x102x245 |
Packing dimension |
cm |
258x75x114 |

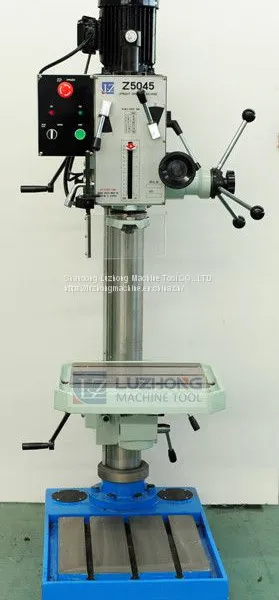

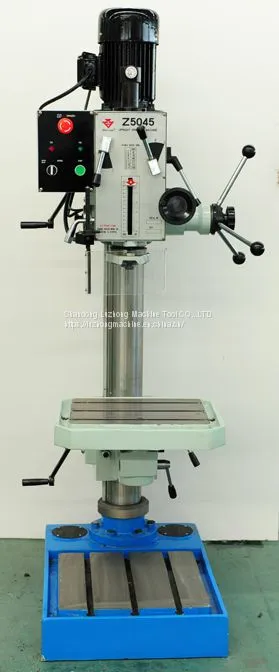

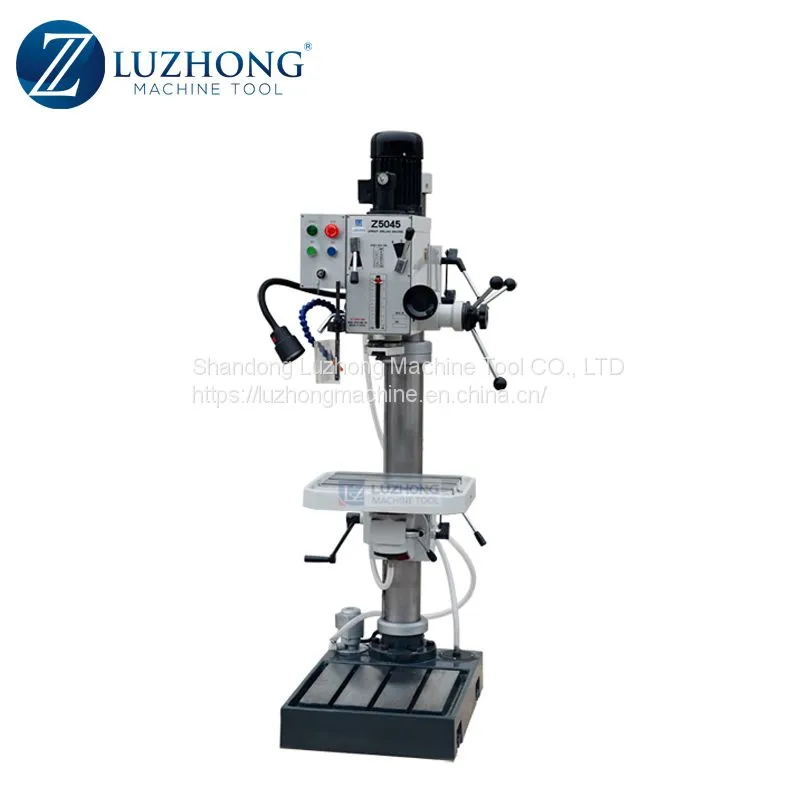

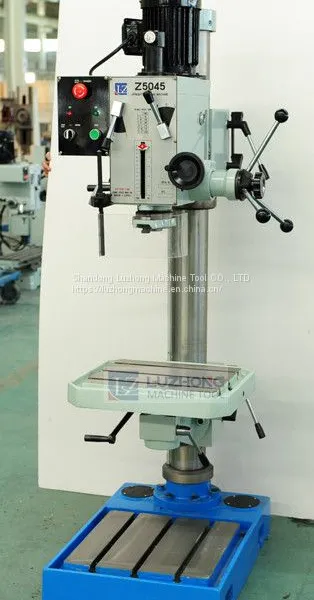

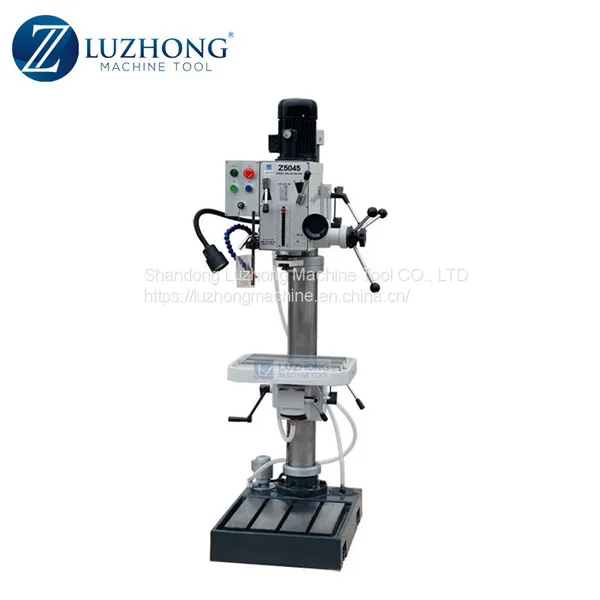

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
