Z5132 Mini bench Vertical Drilling Machine
Product Description
Product description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Product Parameters
Specifications |
Z5132 |
Max drilling dia |
32mm |
Max feed resistance |
12000N |
Max. spindle allowable torque |
200N.m |
Spindle taper |
Morse No. 4 |
Distance from spindle axis to column guideway |
280mm |
Spindle travel |
200mm |
Spindle box travel |
200mm |
Spindle speed |
50～2000r/min (9) |
The amount of feed(mm/rev) |
0.056-1.80mm/r (9) |
Working table stroke |
310mm |
Working table surface size |
400×550mm |
Distance from spindle nose to table surface |
710mm |
Main motor power |
2.2kw |
Cooling pump flow |
25L/min |
Overall dimension |
980*807*2302mm |
N/W |
1250kg |

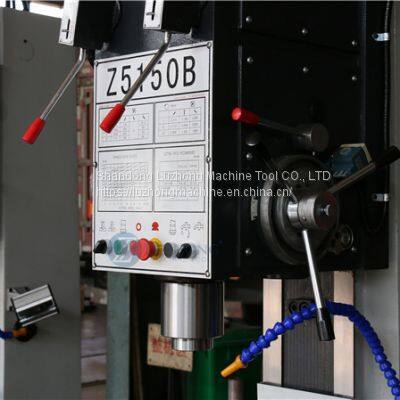

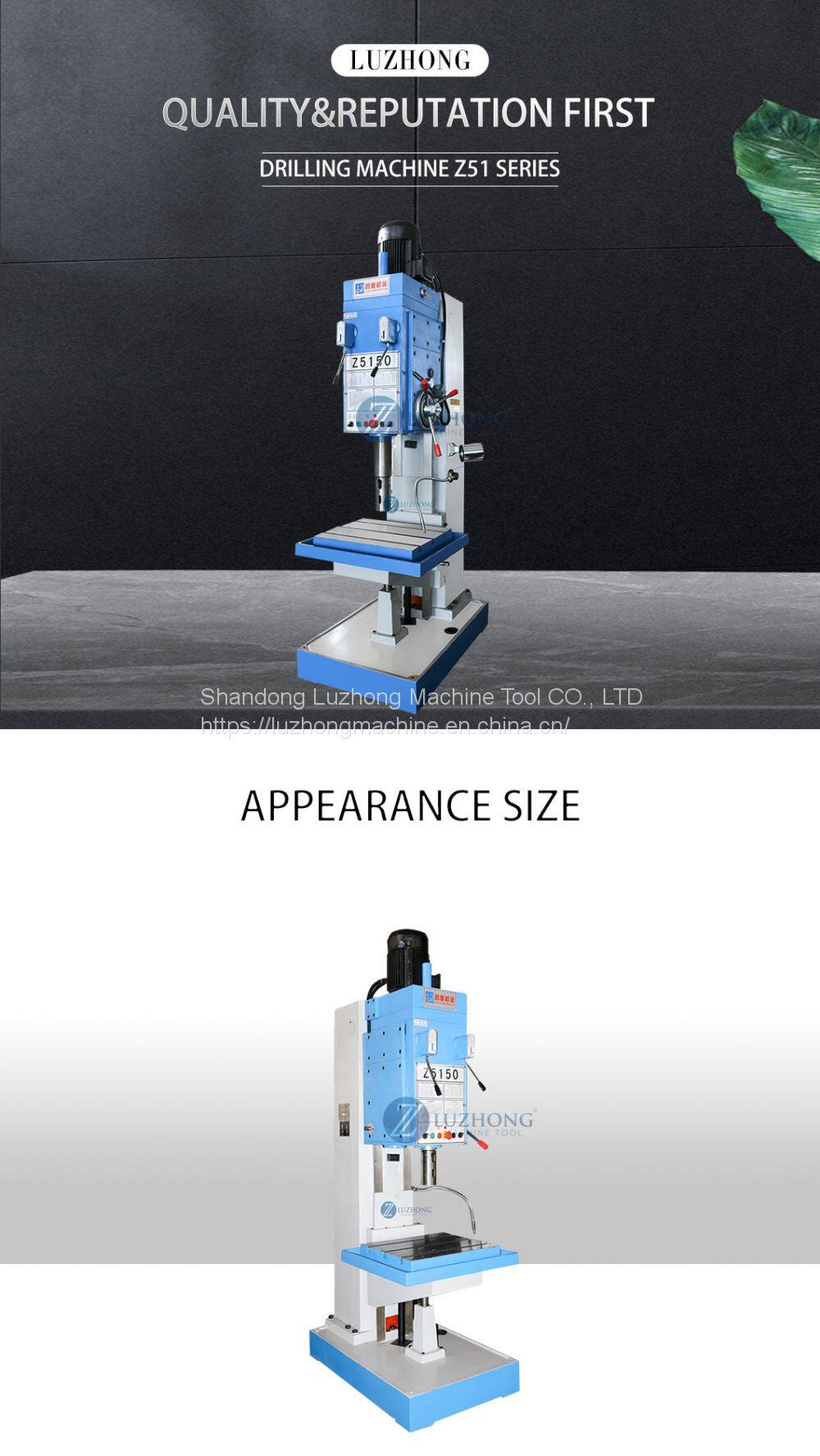

Detailed Photos
