Home > Products > drilling machine > Z3050x11 Metal Drilling Machine Automatic Bench Vertical Drilling Machine Furadeira Taladro

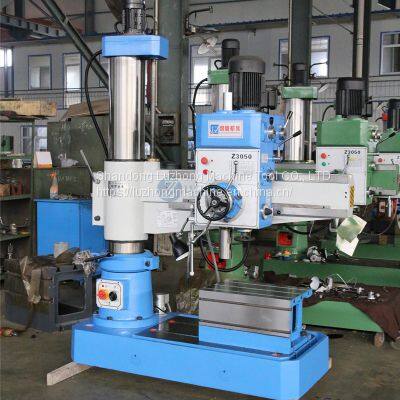

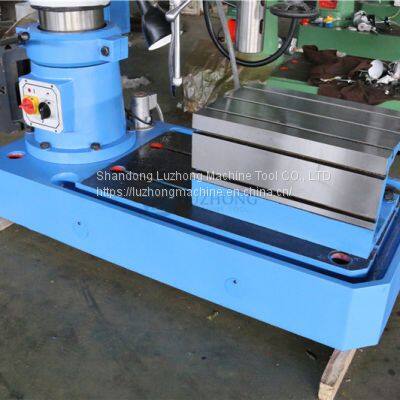

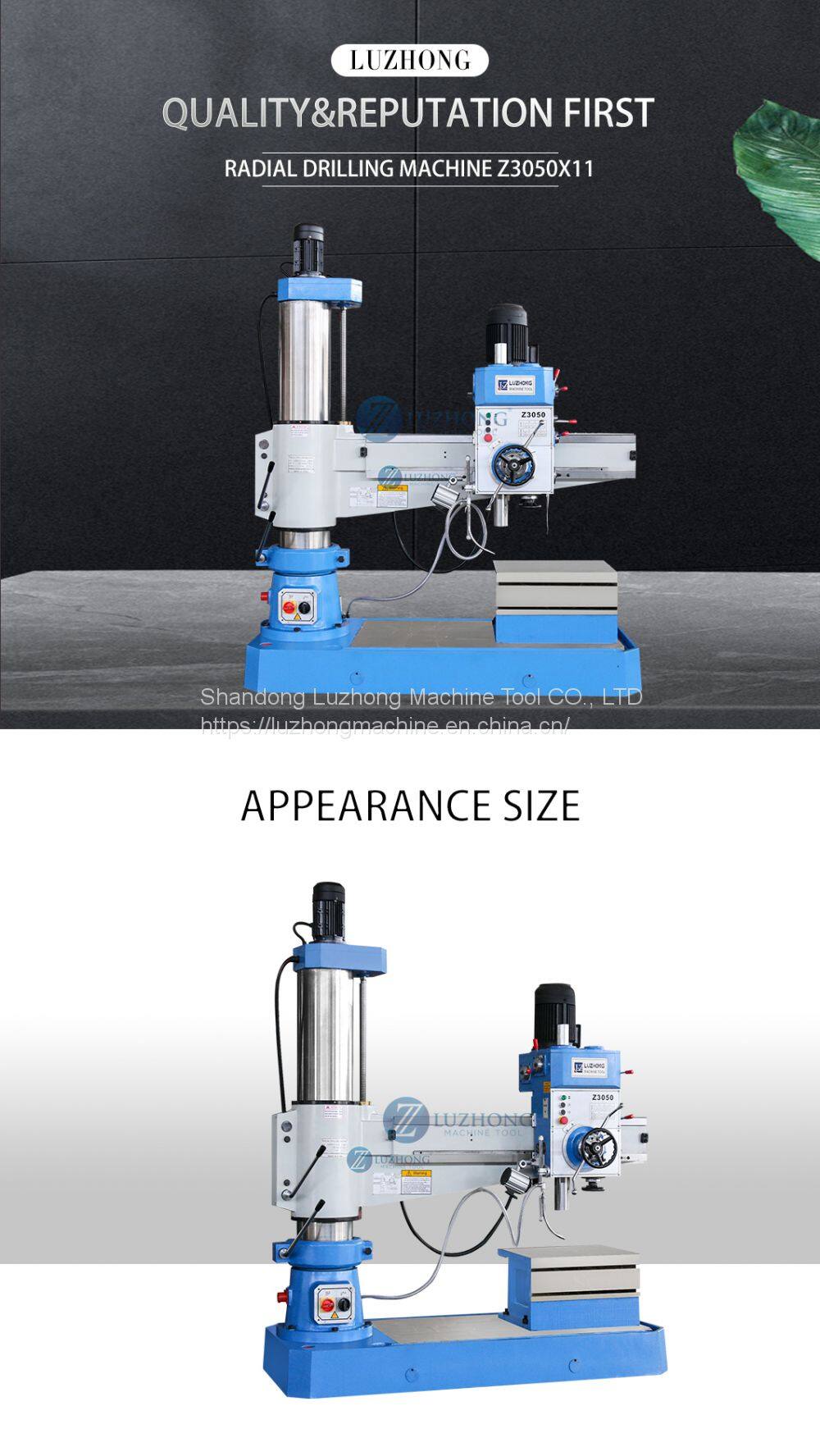

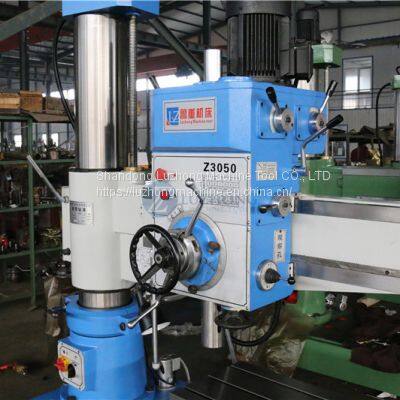

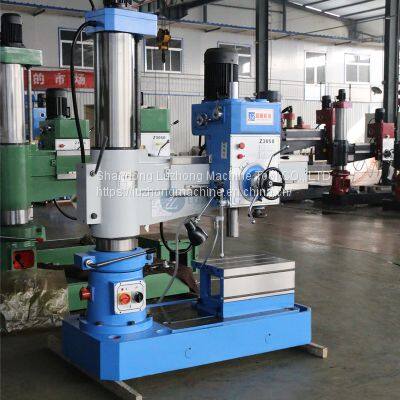

Z3050x11 Metal Drilling Machine Automatic Bench Vertical Drilling Machine Furadeira Taladro
- Qingdao Port
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow
- 20 days
You May Like
-
Z3050x16V Factory Direct Sale Hydraulic Press Arm Radial Drilling Machine With CE ISO
-
Z3050X16 Double Column Radial Drilling Machine
-
Z3063*20A Small Bore Drill Machine Radial Mini Drilling Machine
-
VMC640 CNC Milling Machine China High Precision Vertical Milling Machine
-
VMC650 Luzhong 4 Axis Popular CNC Milling Vertical Machinining Center Mitsubishi Controller
-
VMC840 Luzhong 5 Axis VMC840 CNC Mini Universal Vertical Milling Machine Center
Product Details
| Brand Name | Luzhong | Place of Origin | China | |
| Model Number | Z3050x11 | Certification | GS, CE, RoHS, ISO 9001 | |
| Weight | 1700KG | Dimension(L*W*H) | 1550×705×2250mm | |
| Voltage | Customized | Condition | New | |
| Power(W) | 1.5KW | CNC or Not | Normal | |
| Drilling Speed | 78, 135,240,350,590,1100 rpm |
Product Description
Z3050x11 Metal drilling machine automatic Bench vertical drilling machine furadeira taladro
Product Description

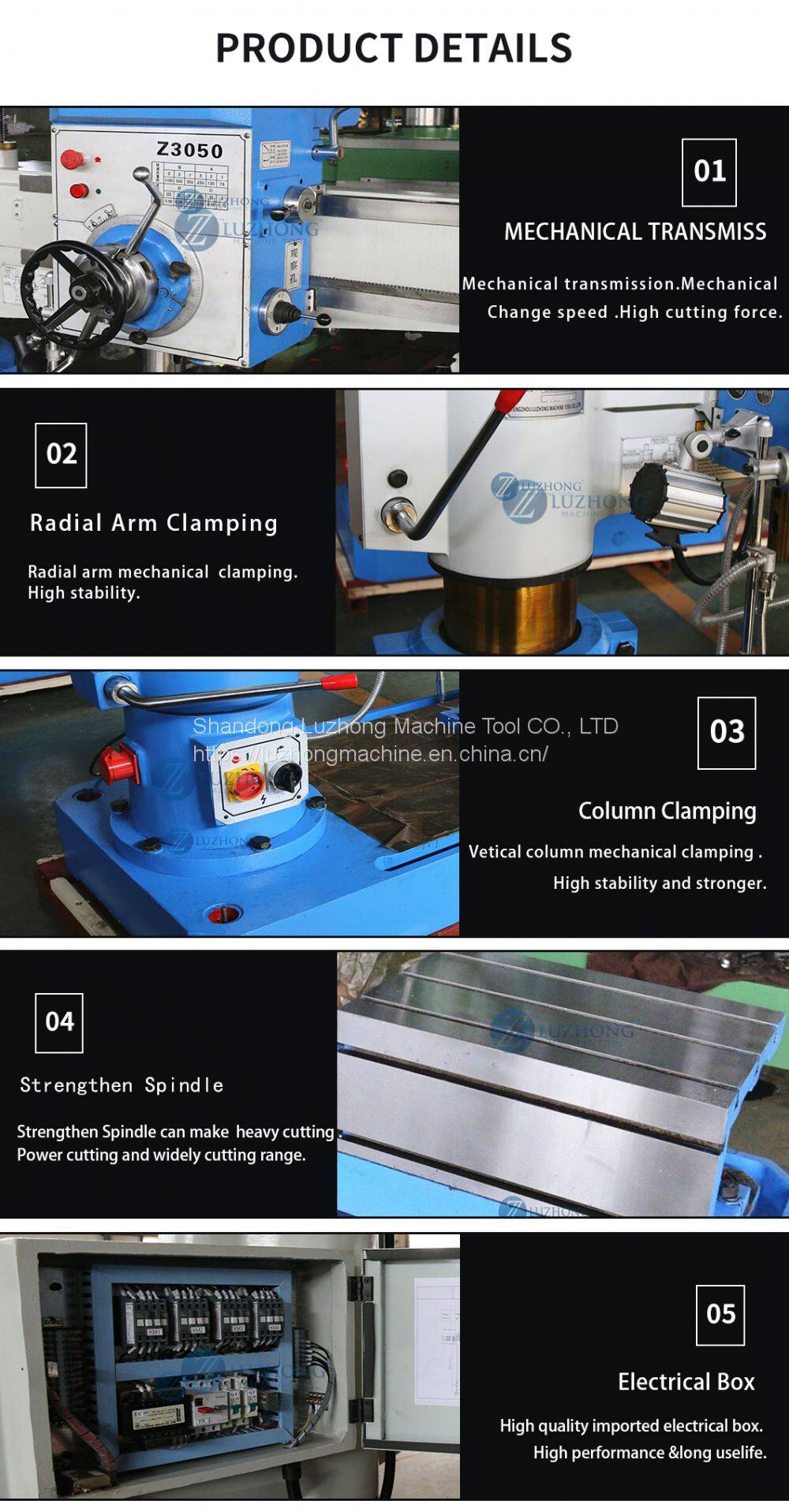

The main performance characteristics：
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed
Product Parameters
Specification | Z3050X11 |
Max.drilling dia(mm) | 50 |
Distance from spindle nose to table surface(mm) | 260-1150 |
Distance between spindle axis and column surface(mm) | 360-1050 |
Spindle travel (mm) | 210 |
Spindle Cone | 5 |
Spinde speeds range(r.p.m) | 78, 135,240,350,590,1100 |
Spinde speed step | 6 |
Spinde feeding range(r.p.m) | 0.10-0.56 |
Spinde feeding step | 6 |
Rocker rotary angle | ±90° |
Main motor power(KW) | 4 |
Movements motor power(KW) | 1.5 |
N.W/G.W(Kg) | 1700 |
Overall dimensions(mm) | 1550×705×2250 |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
