Z5140 Z5150 Small Metal Cheap Vertical Drilling Machine For Sale
Product Description
Product description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Product Parameters
Specifications |
Z5163 |
Max drilling diameter |
63mm |
Max feed resistance |
30000N |
Max. spindle allowable torque |
800N.m |
Spindle taper |
Morse NO.5 |
Distance from spindle axis to column guideway |
375mm |
Spindle travel |
250mm |
Spindle box travel |
250mm |
Spindle speed |
40-570r/min 9 steps |
The amount of feed(mm/rev) |
0.1-0.78r/min 6 steps |
Working table stroke |
300mm |
Working table surface size |
650×550mm |
Distance from spindle nose to table surface |
800mm |
Main motor power |
5.5kw |
Cooling pump flow |
25L/min |
Overall dimension |
1452×965×2787mm |
N/W |
2800kg |

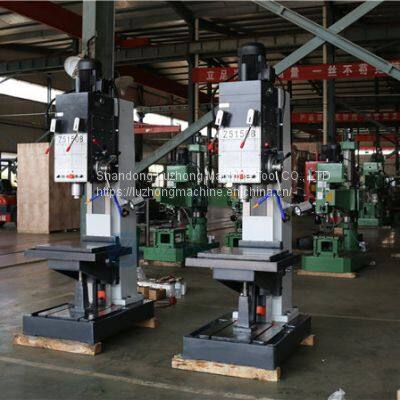

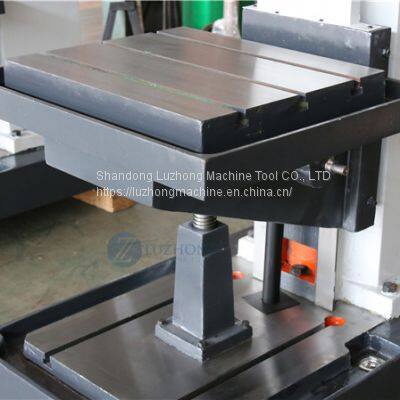

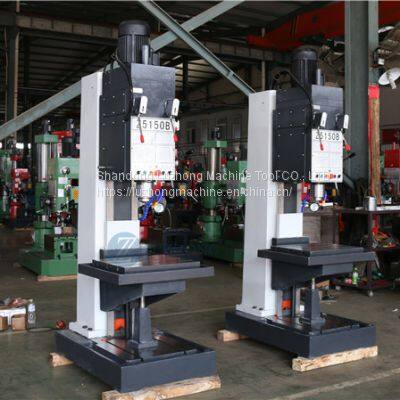

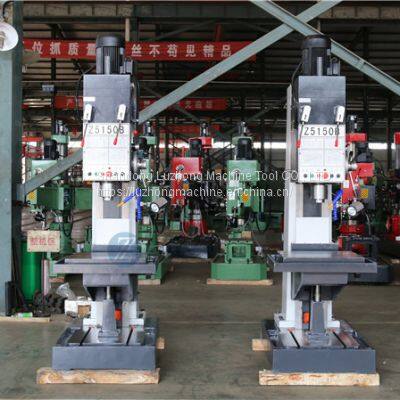

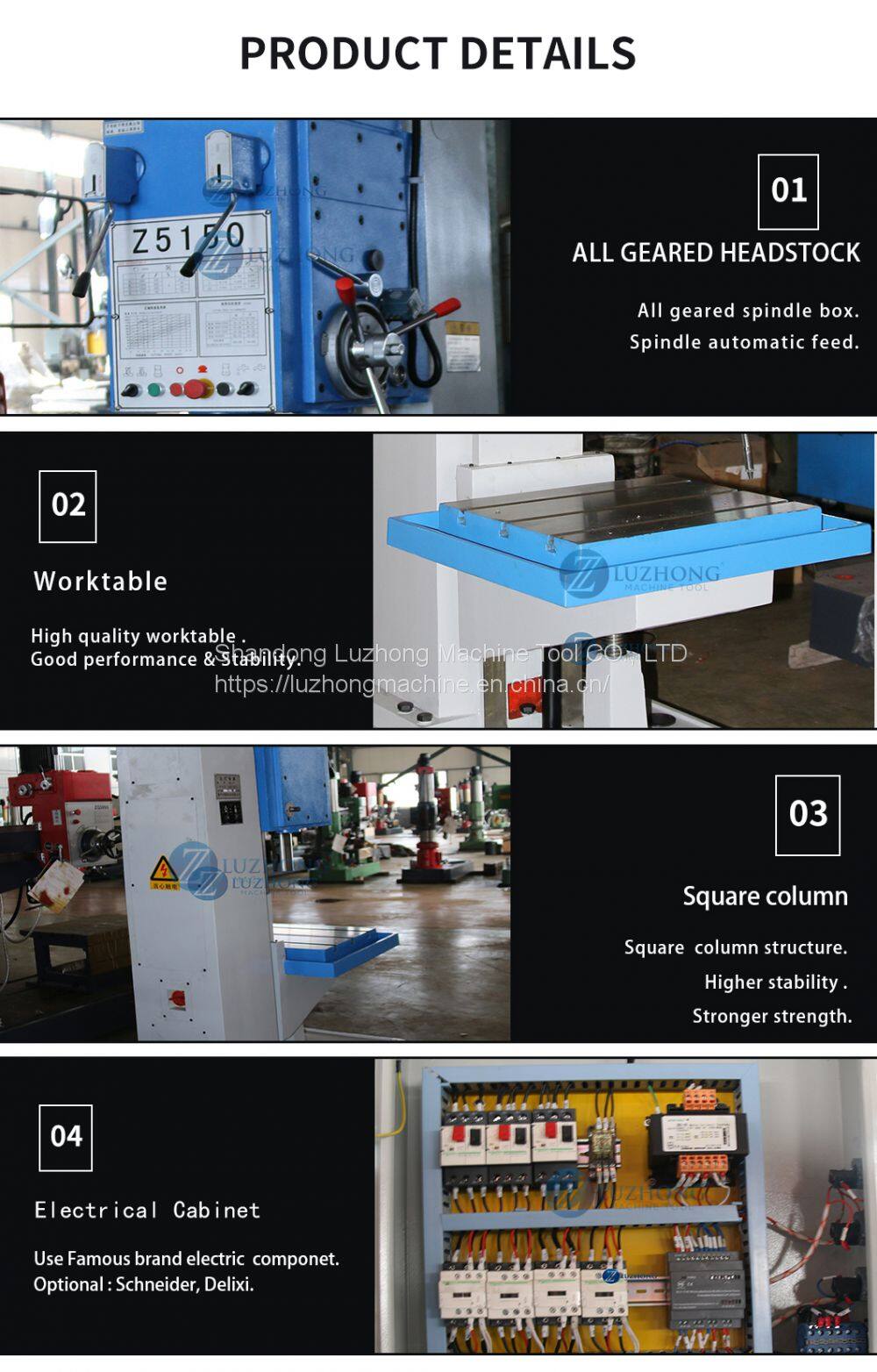

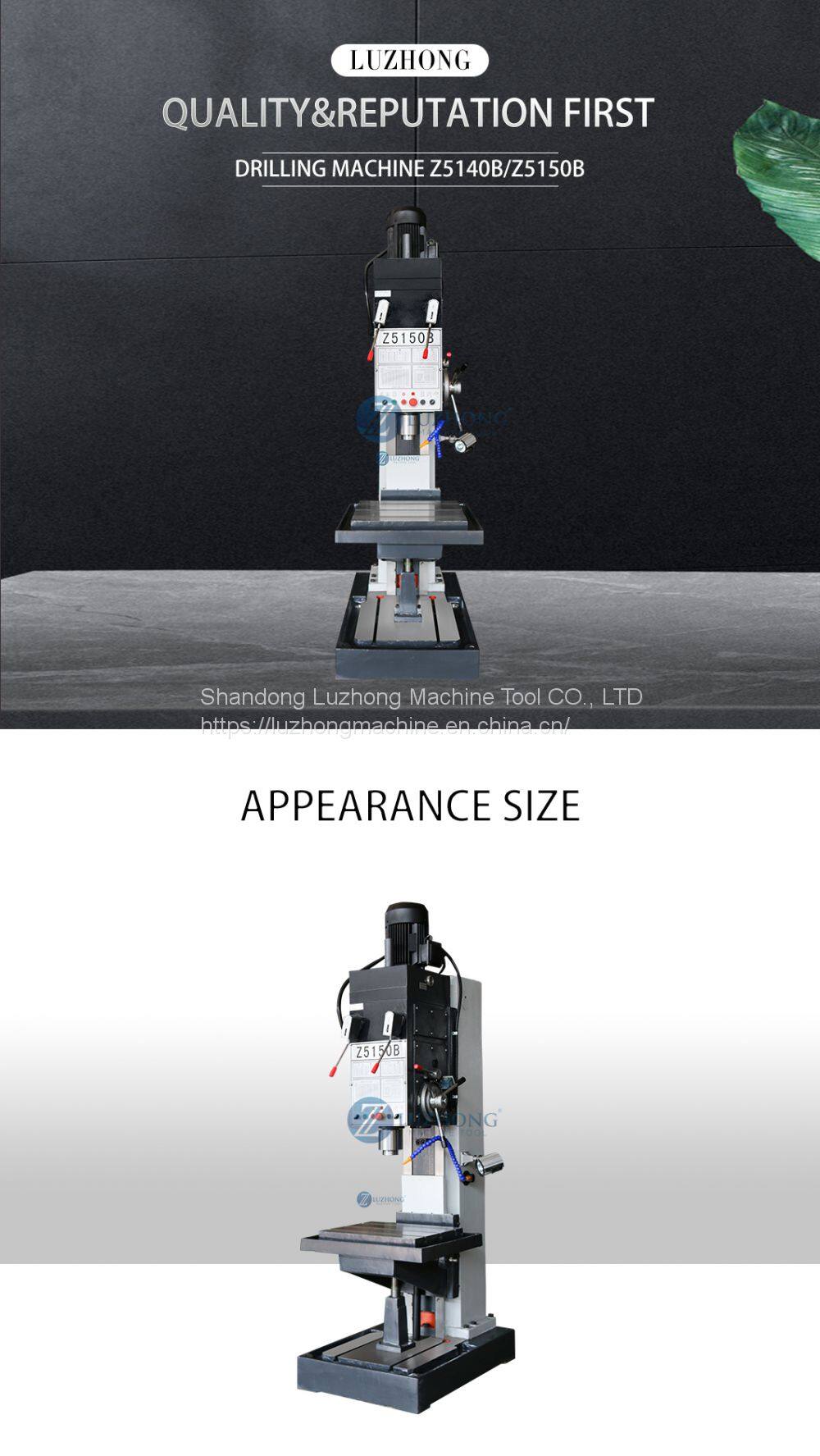

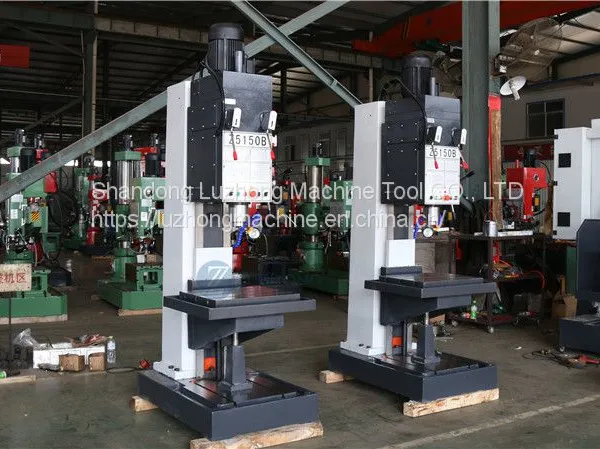

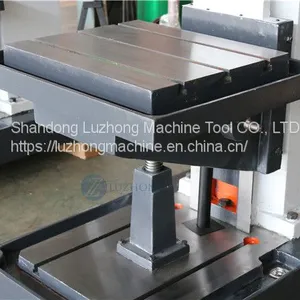

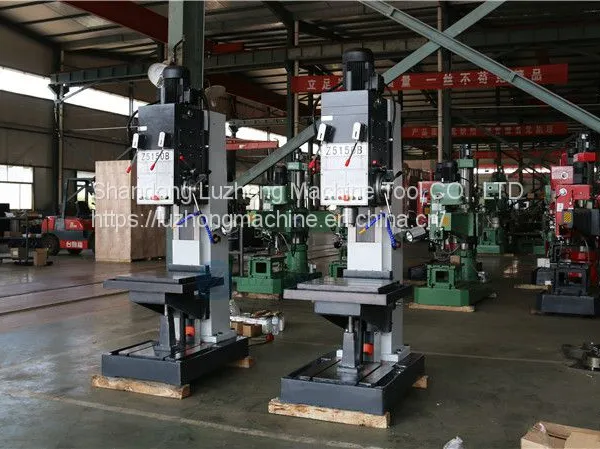

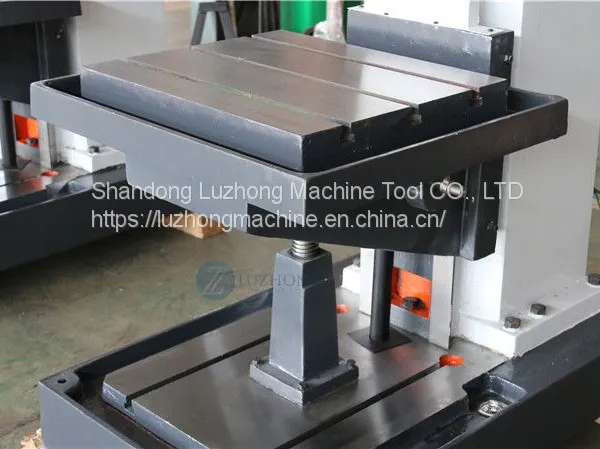

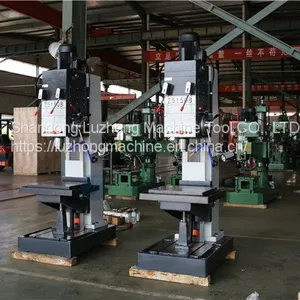

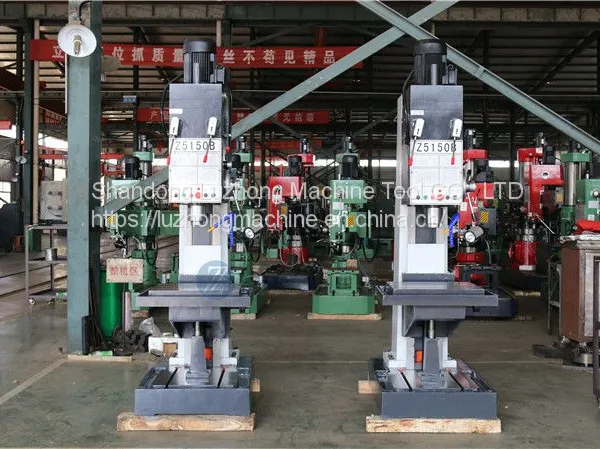

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
