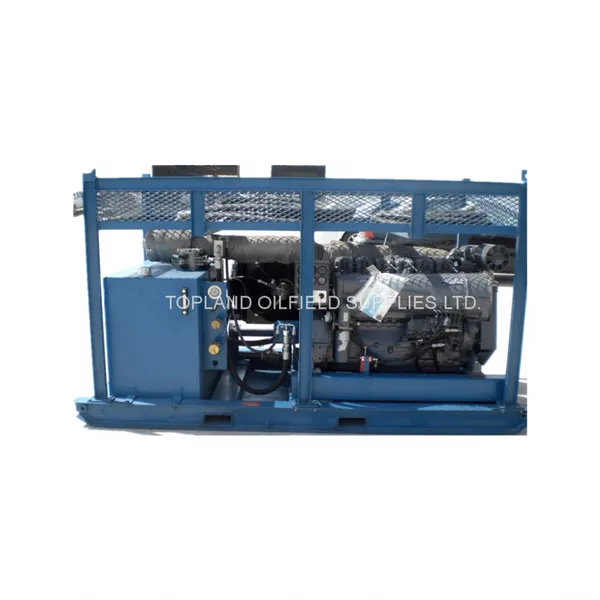

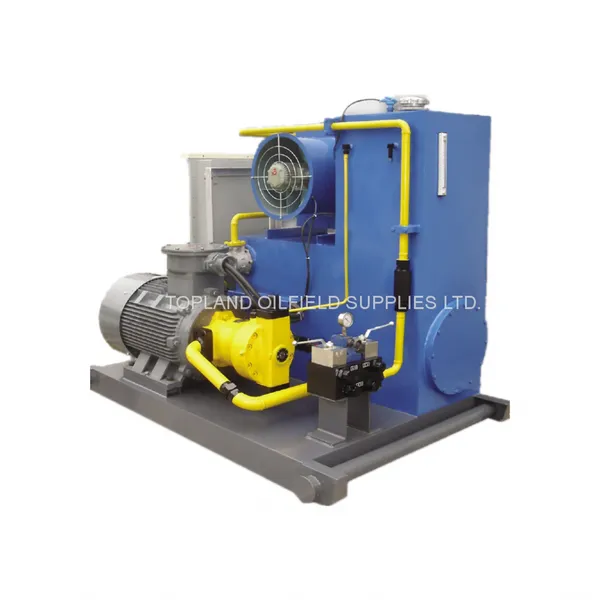

Wellhead Equipment Hydraulic Power Unit for Oilfield
YZB and YD series of hydraulic power unit supplies hydraulic power for drill equipments in onshore and offshore, especially suitable for hot area in the desert and for continuous working situation. It features small structure, easy operation and wide adjustable range, good heating and radiating.
The option for customer(please specify before purchase):
Driven power: 1, Explosion-proof electric motor 2, Common electric motor 3, Diesel
Cooling type: 1, None 2, Air cooled 3 , Water cooled
Heating type: 1, None 2, Electric
Technical Specifications:
Model |
YZBF-120LD |
YZBF-120LD-2 |
YD 160-1/2 |
|
Max. pressure |
mpa |
21 |
20 |
20 |
psi |
3120 |
2900 |
1900 |
|
Rated flow |
L/min |
120 |
120 |
120 |
gpm |
31.7 |
31.7 |
31.7 |
|
Effective volume |
L |
600 |
900 |
587 |
gal |
158.5 |
238 |
155 |
|
Drive power |
kw |
37 |
37 |
37 |
hp |
49.6 |
49.6 |
50.3 |
|
Fan motor power |
kw |
0.37X2 |
0.37X2 |
0.37X2 |
hp |
0.5X2 |
0.5X2 |
0.5X2 |
|
Radiation area |
㎡ |
40 |
40 |
40 |
Ft2 |
430 |
430 |
430 |
|
|
Overall Dimension L X W X H |
MM |
1650 x 1300 x 1600 |
1950 x 1450 x 1750 |
1700 x 1250 x 1240 |
IN |
65 x 51x 63 |
77 x 57 x 69 |
68 x 49.2 x 49 |
|
|
Weight Including Backup Tong |
Kg |
1600 |
2400 |
1100 |
lb |
3527 |
5290 |
2426 |
|
