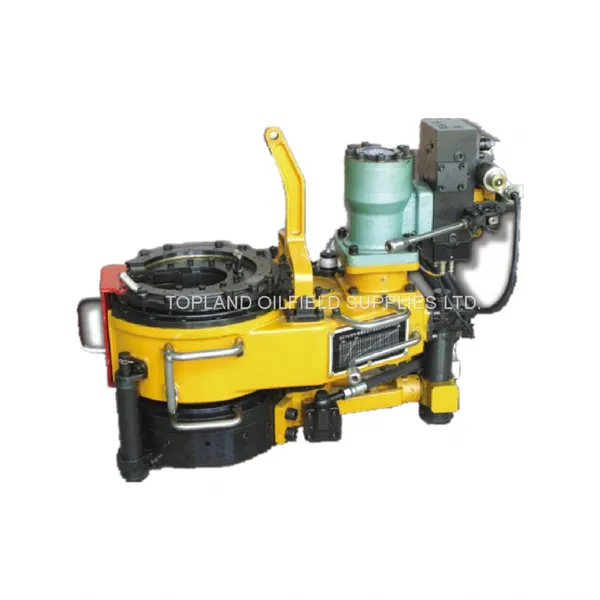

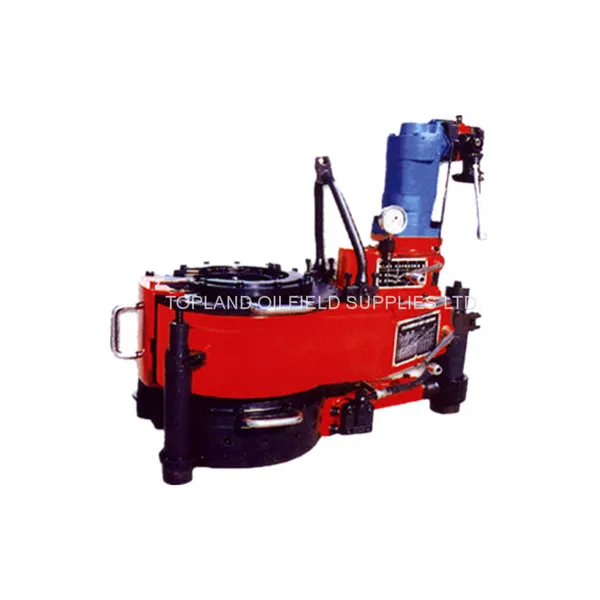

Tubing power tong (Inner curved cam clamp) is used for quick make-up/ break-out in well service operations. The tong is equipped with hydraulic backup tong and use inner curved cam to clamp. The tongs have the following features:
Technical Specifications:
Model |
XQ89/3YB,3YC,3YF |
XQ89/3YE |
XQ114/6YB |
XQ140/12YA |
|
Pipe Size Range Of Master Tong |
mm |
ɸ60-89 |
ɸ73-89 |
ɸ73-114 |
ɸ73-140 |
in |
2 3/8”-3 1/2” |
2 7/8”-3 1/2” |
2 3/8”-4 1/2” |
2 7/8”-5 1/2” |
|
Pipe Size Rang Of Backup Tong |
mm |
ɸ60-114 |
ɸ89-114 |
ɸ60-114.5 |
ɸ89-156 |
in |
2 3/8”- 4 1/2” |
3 1/2”-4 1/2” |
3 1/2”-5 1/8” |
3 7/2”-6 1/8” |
|
High Gear Rated Torque |
kn.m |
1.1 |
3 |
1.5 |
2.6 |
ft.lbf |
811 |
2213 |
1106 |
1918 |
|
Low Gear Rated Torque |
kn.m |
3 |
3 |
6 |
12 |
ft.lbf |
2213 |
2213 |
4425 |
8851 |
|
High Gear Rated Speed |
r/min |
90 |
28 |
85 |
72 |
Low Gear Rated Speed |
r/min |
30 |
20 |
14 |
|
Rated Operation Pressure |
Mpa |
10 |
10 |
11 |
12 |
Psi |
1450 |
1450 |
1595 |
1740 |
|
Max. Flow |
L/min |
80 |
90 |
100 |
120 |
gpm |
21 |
24 |
26 |
32 |
|
|
Overall Dimension L X W X H |
MM |
650 x 430 x 550 |
740 x 430 x 800 |
750 x 500 x 600 |
1024 x 582 x 539 |
IN |
26 x 17 x 22 |
29 x 17 x 32 |
30 x 20 x 24 |
41 x 23 x 22 |
|
|
Weight Including Backup Tong |
Kg |
158 |
182 |
220 |
480 |
lb |
348 |
401 |
485 |
1057 |
|
Remark:
1. To clamp the 2 3/8” tubing, special dies must be ordered for Model XQ 89/3YB, 3YC;
2. Advantage of Model XQ89/3YE; Low speed, rated speed is 28 rpm. Dies of backup tong can clamp the underside of tubing coupling, so as to reduce distortion of tubing coupling to prevent conglutination of thread.
