Hydraulic Hose SJL,SPL Series Elevator

Name: Hydraulic Hose SJL,SPL Series Elevator
Brand: UPET
SKU: 167479591
Availability: InStock

Hydraulic Hose SJL,SPL Series Elevator thumbnail-1

Hydraulic Hose SJL,SPL Series Elevator thumbnail-2

Hydraulic Hose SJL,SPL Series Elevator thumbnail-3

Hydraulic Hose SJL,SPL Series Elevator photo-1

Hydraulic Hose SJL,SPL Series Elevator photo-2

Hydraulic Hose SJL,SPL Series Elevator photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

UPET

Place of Origin:

China

Model Number:

SJL,SPL Series Elevator

Contact Supplier Request Quote Chat Now

Topland Oilfield Supplies Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name UPET

Place of Origin China

Model Number SJL,SPL Series Elevator

Type Other, Handing Tools

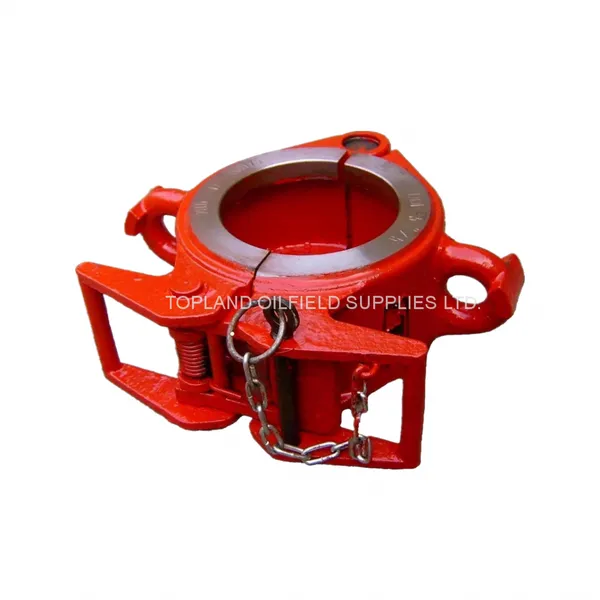

Single-joint, center-latch elevator designed to replace unsafe rope slings for hoisting collar-type pipe into position. The SJL type enables the crew to handle pipe properly, help avoid damage to pipe threads and reduce the chances of accident or injury. The SPL is the same as the SJL type except that the SPL is designed for use on tapered pipe, conforming to API specifications for Extreme Line casing.

TECHNICAL SPECIFICATIONS

Size		Type	Frame	Cap.	Weight
inches	mm	Type	Frame	tons	lbs	kg
2 3/8" - 3 1/2"	60 - 89	SJL	70499Y	5	45	20
4" - 5 1/2"	10 -140	SJL	70500Y	5	51	23
6" - 7 5/8"	152 - 194	SJL	70501Y	5	72	33
8 5/8" - 10 3/4"	298 - 340	SJL	70502Y	5	98	44
11 5/8" - 13 3/8"	298 - 340	SJL	70503	5	121	55
11 3/4" - 14"	296 - 356	SJC casing	72782Y10	5	140	61
16" - 20"	406 - 508	SJL	70504Y	5	180 - 233	82 - 106
21" - 24 1/2"	533 - 622	SJL	70505Y	5	253 - 283	115 - 128
26" - 30"	660 - 762	SJL	200280Y	8	441	200
2 7/8" - 5"	72 - 140	SPL 5º	200008Y	5	77	35
5 1/2" - 75 /8"	140 - 194	SPL 5º	200010Y	5	108	49
8 5/8" - 9 5/8"	219 - 244	SPL 5º	200012Y	5	145	66
9 7/8"	251	SPL 5º	200029	5	145	66
10 3/4"	273	SPL 5º	200013Y	5	160	73
2 3/8" - 4 1/2"	60 - 114	SPL 12º	200014	5	86	39
3 1/2" - 5"	89 - 127	SPL 18º	200009	5	79	36
5 1/2" - 6 5/8"	140 - 168	SPL 18º	200011	5	94	43

Note.

SPL series auxiliary elevators are mainly used in handling single tubing, casings and drill pipes with taper shoulder. The products shall be designed and manufactured according to API Spec 8A/8C Specification for drilling and production hoisting equipment.
