Home > Tools & Hardware > Hand Tools > Other Hand Tools > G Type Elevator Support 100~500 Ton Capacity for Drilling Equipment

G Type Elevator Support 100~500 Ton Capacity for Drilling Equipment

Name: G Type Elevator Support 100~500 Ton Capacity for Drilling Equipment
Brand: UPET
SKU: 167478935
Availability: InStock

G Type Elevator Support 100~500 Ton Capacity for Drilling Equipment thumbnail-1

G Type Elevator Support 100~500 Ton Capacity for Drilling Equipment thumbnail-2

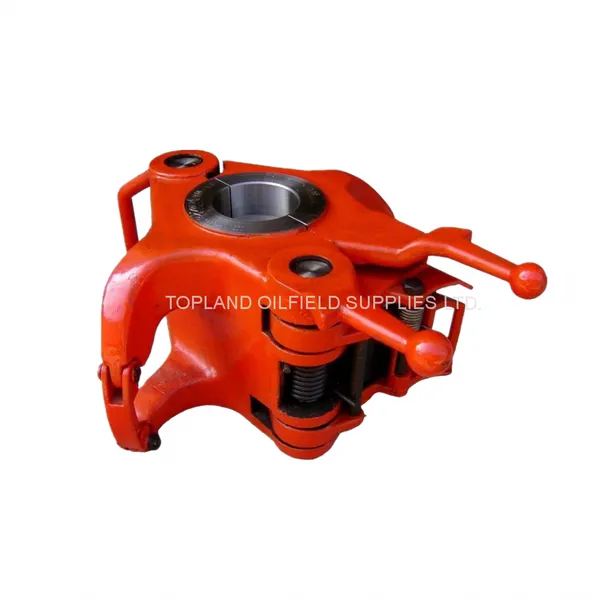

G Type Elevator Support 100~500 Ton Capacity for Drilling Equipment photo-1

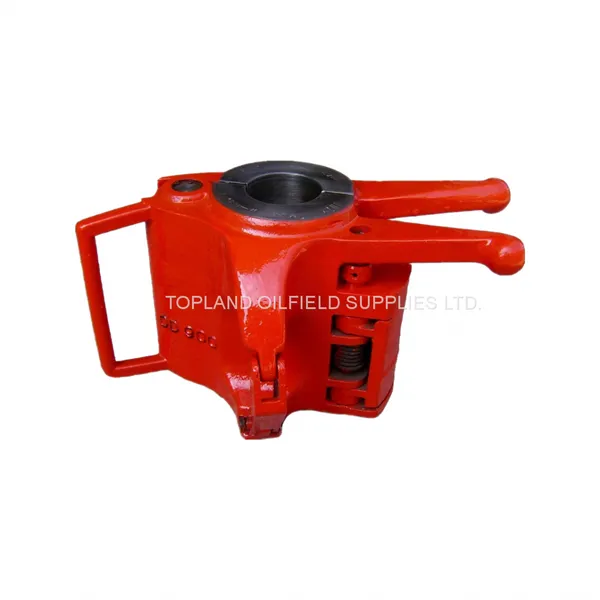

G Type Elevator Support 100~500 Ton Capacity for Drilling Equipment photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

UPET

Place of Origin:

China

Model Number:

G Type Elevator

Contact Supplier Request Quote Chat Now

Topland Oilfield Supplies Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name UPET

Place of Origin China

Model Number G Type Elevator

Type Other, Handing Tools

“G” type elevators are conventional center latch taper type elevators for handling drill pipe. There are 5 types ranging from 100 to 500 ton capacity and covering pipe sizes from 23/8" to 6 5/8" OD.

TECHNICAL SPECIFICATIONS

Type	Cap	Size		Frame	Link Size				Weight
Type	Cap	Size		Frame	MIN.		MAX.		Weight
	tons	inches	mm		inches	mm	inches	mm	lbs	kg
MG	100	2 3/8" - 5"	60-127	30157Y	1 3/4"	44	2 3/4"	70	210-233	95-106
RGG	150	2 3/8" - 3 1/2"	60-89	200680Y	1 3/4"	44	2 3/4"	70	304	138
MGG	250	3 1/2" – 5 1/2"	89-140	35005Y	2 1/4"	57	3 1/2"	89	546-608	248-276
GG	350	4" – 5 1/2"	102-140	31068Y	2 1/4"	57	3 1/2"	89	672-693	305-314
HGG	500	4" – 6 5/8"	102-169	70013Y	2 3/4"	70	4 3/4"	121	1029	467

Note.

G series elevators are similar in design and construction to the A series, except they are bored to fit the contour of 18º type drill pipe. They are constructed in two halves of practically the same weight for better balance, making them easier to handle; easier to latch on and take off the pipe. In open position, a G-series elevator hangs ready for closing at any point below the upset of the pipe. Safety features include guarded operating handles to help prevent accidents to operators and an extra handle at the rear of the elevator for easier, safer operation.

Product Tags: Elevator , Handing Tools , G Type Elevator
