Home > Tools & Hardware > Hand Tools > Other Hand Tools > API High Quality Center Latch Elevator With Square Shoulder

API High Quality Center Latch Elevator With Square Shoulder

Name: API High Quality Center Latch Elevator With Square Shoulder
Brand: UPET
SKU: 167479067
Availability: InStock

API High Quality Center Latch Elevator With Square Shoulder thumbnail-1

API High Quality Center Latch Elevator With Square Shoulder thumbnail-2

API High Quality Center Latch Elevator With Square Shoulder photo-1

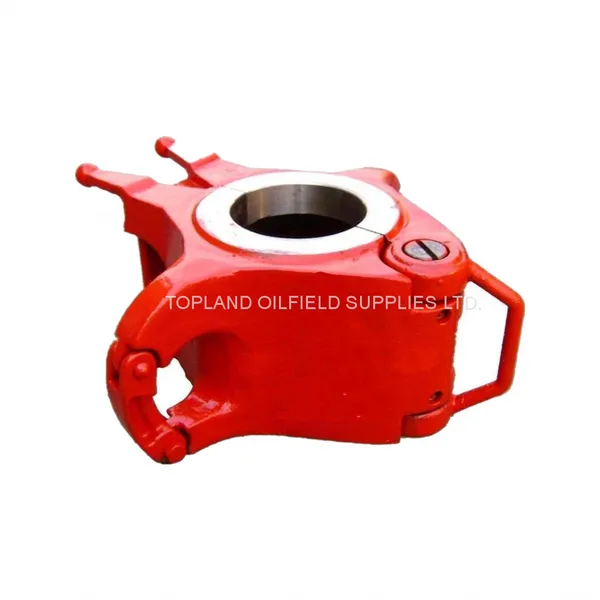

API High Quality Center Latch Elevator With Square Shoulder photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

UPET

Place of Origin:

China

Model Number:

Center Latch Elevator

Contact Supplier Request Quote Chat Now

Topland Oilfield Supplies Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name UPET

Place of Origin China

Model Number Center Latch Elevator

Type Other, Handing Tools

“TA” series elevators are conventional center latch collar type elevators for handling drill collars, casing, and tubing. There are 7 types, ranging from 35 to 150 ton capacity, covering pipe sizes from 1.050” to 111/4".

TECHNICAL SPECIFICATIONS

Type	Cap.	Size		Frame	Link Size				Weight
Type	Cap.	Size		Frame	Min.		Max.		Weight
	tons	inches	mm		inches	mm	inches	mm	lbs	kg
TA	35	1.050 " - 2 7/8"	28-73	32387Y	1 1/4"	32	1 3/4"	44	57	26
TA	65	1.660" - 2 7/8"	42-73	32385Y	1 3/4"	44	2 3/4"	70	101	46
TA	65	3 1/2" - 4 1/2"	89-114	32386Y	1 3/4"	44	2 3/4"	70	136	62
TA	100	2 3/8" - 5"	60-127	50006510Y	1 3/4"	44	2 3/4"	70	121	55
TA	100	4 3/4" - 8 5/8"	121-219	200000Y	1 3/4"	44	2 3/4"	70	260	118
TA	150	4 1/2" - 8 5/8"	114-219	32754Y	1 3/4"	44	3 1/2"	89	370	168
TA	150	8 1/2" - 11 1/4"	216-286	39342Y	1 3/4"	44	3 1/2"	89	524	238

Note.

Center-latch elevators are for handling collar-type drill pipe, casing and tubing. All “TA” type elevators are constructed in two halves of practically the same weight, providing proper balance and easier opening and closing. In open position, the elevator hangs ready for closing at any point below the upset of the pipe. All “TA” type elevators feature latch and safety latch lock combinations. Safety features include guarded operating handles to help prevent accidents to operators and an extra handle at the rear of the elevator for safer operation.

Product Tags: Elevator , Center Latch Elevator , TA Type Elevator
