Vision Measurement Instruments Flexible Fixture
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vision Measurement Machine Flexible Fixture Of VMMNegotiableMOQ: 1 -
CNC Fixture Clamps Measuring Surface Plate Fixture Of CMMNegotiableMOQ: 1
-
High Quality CNC Fixture Clamps Measuring Surface Plate Fixture Of CMM MachineNegotiableMOQ: 1
-
CNC Fixture Clamps For Fixture CMMNegotiableMOQ: 1
-
CNC Fixture Clamps Measuring Surface Plate Fixture Of CMMNegotiableMOQ: 1
The vision measurement machine application is always coming with varies of different parts with different shapes or materials. Some are even without any effective reference plane to be correctly located on the work stage. Developing specific fixtures for each component should be with low efficiency and high cost. So we have developed the Flexfix series VMM fixtures kit and base plates, to help users saving time and cost but also able to achieve fast and reliable fixturing during the VMM measuring process. The Flexfix series helps to improve the throughput, reproducibility and accuracy of the inspection process with quick and repeatable fixturing set-ups.

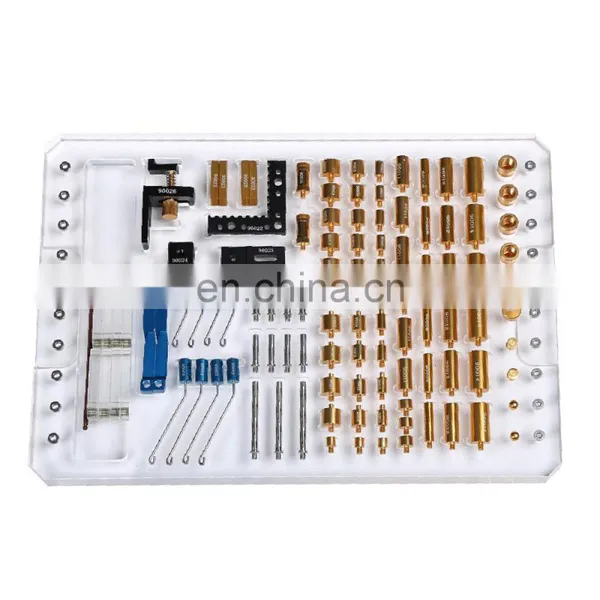

The Flexfix series VMM fixtures are designed as a complete components kit. We have studied most of the VMM measuring application from our experience of VMM users, and have taken reference to different types of parts, to develop the fixtures kit components. The kit is including supporting, pressing, and holding components, which allow the user to manage the fixturing easily and no special tools as required. Regardless of shapes or materials, user can easily find the fixturing solution during measuring process.
All components are made by precision manufacturing process and with anodise coating. Each part is with laser marking coding, so all the combination of the components can be repeatable for the subsequent inspections. Which helps to eliminate the variation of different parts or operators, and increasing the measuring accuracy and repeatability.

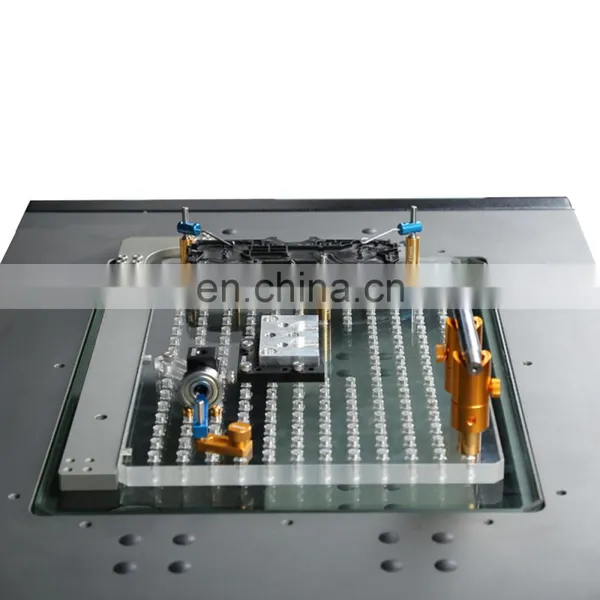

For VMM measuring needs contour measuring application under most circumstances, we create the VMM fixtures base plate with high transmittance and flatness acrylic material, which to ensure the straight light path from the contour light, keeping the original measuring accuracy of the machine.
For VMM measuring needs contour measuring application under most circumstances, we create the VMM fixtures base plate with high transmittance and flatness acrylic material, which to ensure the straight light path from the contour light, keeping the original measuring accuracy of the machine.
Metal M4 screw threads are mounted inside the base plate, the components can be firmly fixed and highly increase the life cycle of the base plate. Also an L type magnetic fast mounting corner is offered, user only needs to put and measure, which largely increase the measuring efficiency.
Base plates sizes
300*200mm, M4 threads
400*300mm, M4 threads
300*300mm, M4 threads
400*400mm, M4 threads
Customized sizes
400*300mm, M4 threads
300*300mm, M4 threads
400*400mm, M4 threads
Customized sizes
Item |
Mark |
Qty |
Tenshion clamp |
90001 |
4 |
Short Wire tenshion clamp |
90002 |
4 |
Long tension clamp support |
90003 |
4 |
Short tension clamp support |
90004 |
8 |
Long tension clamp supprort |
90005 |
3 |
6*5mm Standoff |
90006 |
3 |
6*10mm Standoff |
90007 |
6 |
6*25mm Standoff |
90008 |
6 |
9*5mm Standoff |
90009 |
3 |
9*10mm Standoff |
90010 |
6 |
9*20mm Standoff |
90011 |
6 |
9*25mm Standoff |
90012 |
6 |
12*10mm Standoff |
90013 |
6 |
12*25mm Standoff |
90014 |
6 |
6*10mm Flat Standoff |
90015 |
4 |
9*10mm Flat Standoff |
90016 |
4 |
12*10mm Flat Standoff |
90017 |
4 |
9mm adjustable Standoff |
90018 |
2 |
6mm ball type Standoff |
90019 |
2 |
Muliti direction Adaptor |
90020 |
2 |
Tension support screw |
90021 |
2 |
L block |
90022 |
1 |
Adjustable slide |
90023 |
4 |
Direction switching block base |
90025 |
1 |
Tension support |
90026 |
1 |
M4 to M8 adaptor |
90027 |
4 |
Transparent adjustable slide |
90028 |
8 |
M3 screw driver |
90029 |
1 |
Components packing plate |
||
M4*10 screws (20 pcs) |
||
Packing suitcase |
Industrial production Detection of industry Test process industry Electronics industry
Connector industry Robot industry Shipping industry Health care industry
The Flexfix fixtures series are widely used in varies industries such as electronics, aerospace, automotive, plastic or medical
care. It can be introduced to all sizes and models of CMM and VMM. They are the tools which make your measuring process flexible,
repeatable, and standardized.
care. It can be introduced to all sizes and models of CMM and VMM. They are the tools which make your measuring process flexible,
repeatable, and standardized.
experience. We offer high performance products with reasonable price. And professional cooperators from global market are always
welcome to join us and UNIMETRO will always offer the best marketing and technical support.
UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We focus on midium high level of metrology
products, offers complete high accuracy measuring solutions for customers.
projectors, Our production line are also including core components for optical metrology, such as VMM one basket controllers,
lens, camera system, linear scales, VMM and CMM fixtures, illumination system etc...
