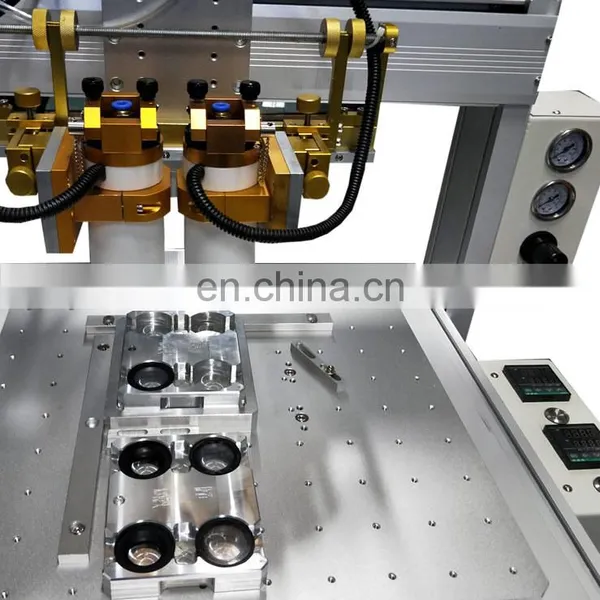

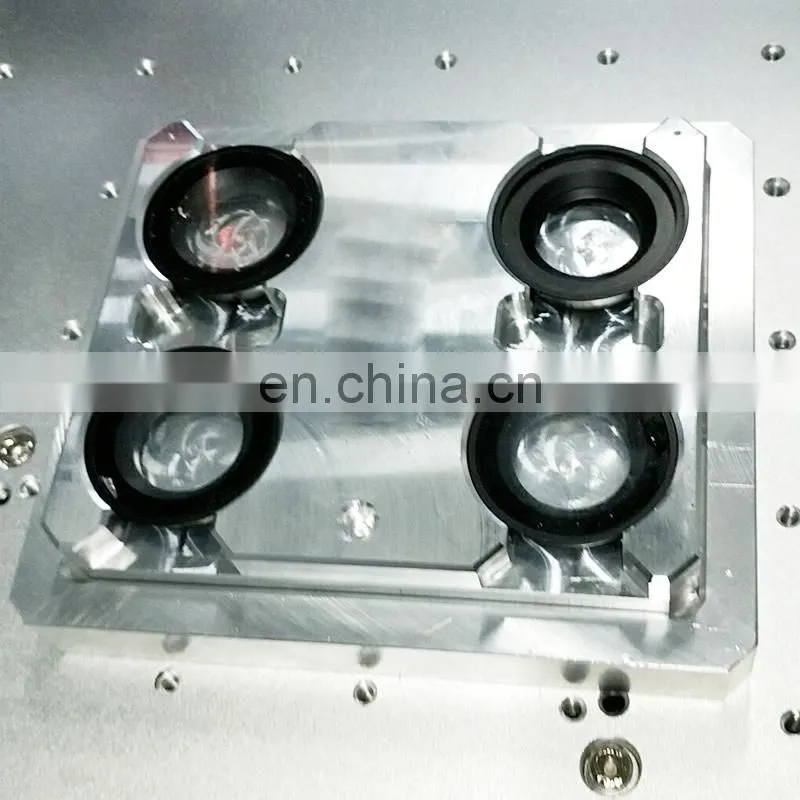

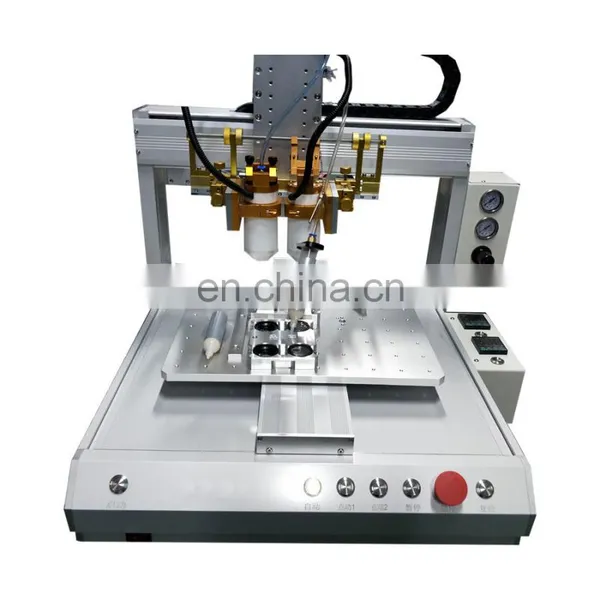

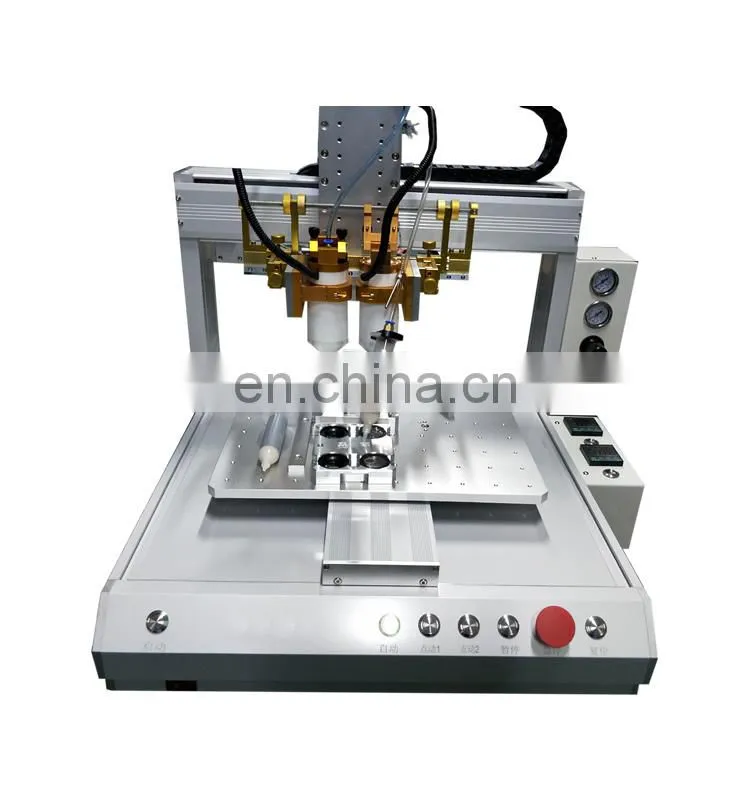

Liujiang Glue Dispensing Robot for Hot Melt Glue and 30ml PUR Packing
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Glue Dispenser A B Mixing Doming Liquid Glue Dispensing Machine Equipment for Epoxy ResinNegotiableMOQ: 1 -
Liujiang Semi-automatic Circular Dispenser Bulb Buzzer 4 StationsNegotiableMOQ: 1
-
Semi-automatic Automatic Epoxy Resin UV Glue Doming Machine Dispensing Machine Viscous Fluid Keypad DispenserNegotiableMOQ: 1
-
Factory Epoxy Doming Sticker Dispensing MachineNegotiableMOQ: 1
-
High Precision Automatic Liquid / Glue Dispensing System EquipmentNegotiableMOQ: 1

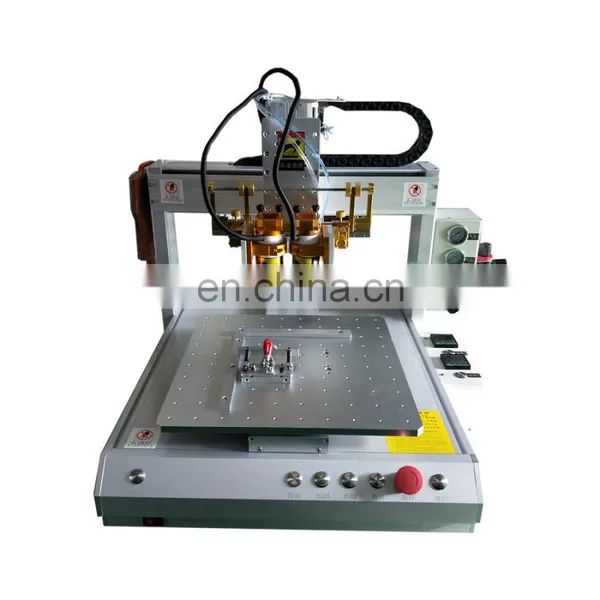

automatic double head 3 axis 300 travel hot melt adhesive 30ml PUR dispensing machine
Product Description
300 Parameters
| Item/Model | LJ-D3311 | LJ-D3312 | LJ-D3313 | LJ-D3314 |
| Number of axes | 3 | 3 | 3 | 3 |
| Maximum working area (X / Y / Z) | 300 / 300 / 100 mm | 300 / 300 / 100 mm | 300 / 300 / 100 mm | 300 / 300 / 100 mm |
| Head Number | 1 | 2 | 3 | 4 |
| Rotation Axis | - | - | - | - |
| Workpiece payload | 10 kg (22.0 lb) | 10 kg (22.0 lb) | 10 kg (22.0 lb) | 10 kg (22.0 lb) |
| Tool payload | 5 kg (11.0 lb) | 5 kg (11.0 lb) | 5 kg (11.0 lb) | 5 kg (11.0 lb) |
| Maximum speed(XY / Z) | 500 / 320 mm/sec | 500 / 320 mm/sec | 500 / 320 mm/sec | 500 / 320 mm/sec |
| Unit weight | 45 kg | 45 kg | 46kg | 46 kg |
| Dimensions | 450W x 650H x600D mm | 450W x 650H x600D mm | 450W x 650H x600D mm | 450W x 650H x600D mm |
| Drive system | 3-phase micro-stepping motor | 3-phase micro-stepping motor | 3-phase micro-stepping motor | 3-phase micro-stepping motor |
| Memory capacity | 1–99 programs | 1–99 programs | 1–99 programs | 1–99 programs |
| 1–9,999 points per program | 1–9,999 points per program | 1–9,999 points per program | 1–9,999 points per program | |
| Data storage | USB | USB | USB | USB |
| General purpose I/O | 8 inputs / 8 outputs | 8 inputs / 8 outputs | 8 inputs / 8 outputs | 8 inputs / 8 outputs |
| Drive method | PTP and CP | PTP and CP | PTP and CP | PTP and CP |
| Dispensing controller | External | External | External | External |
| Power supply | Auto-switching | Auto-switching | Auto-switching | Auto-switching |
| AC100–240V, 750 W | AC100–240V, 750 W | AC100–240V, 750 W | AC100–240V, 750 W | |
| Interpolation | 3 axes (3D space) | 3 axes (3D space) | 3 axes (3D space) | 3 axes (3D space) |
| Repeatability | ±0.02 mm | ±0.02 mm | ±0.02 mm | ±0.02 mm |
| Working temperature | 10–40° C (50–104° F) | 10–40° C (50–104° F) | 10–40° C (50–104° F) | 10–40° C (50–104° F) |
| Teach pendant(ENG) | Included | Included | Included | Included |
| Moving Method | Point to Point, Linear, Circle | Point to Point, Linear, Circle | Point to Point, Linear, Circle | Point to Point, Linear, Circle |
| Available Graph | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line |
| Heating function | Optional | Optional | Optional | Optional |
| Preheat function | Optional | Optional | Optional | Optional |
| Pressure | 4-7kg f/cm2 | 4-7kg f/cm2 | 4-7kg f/cm2 | 4-7kg f/cm2 |
| Approvals | CE | CE | CE | CE |
start order
| CHAT NOW | SEND INQUIRY |
Company Information
Liujiang 10 years focused on research and development in the field of dispensing and Solder,Lock screw manufacture.
Dongguan Liujiang Automation Co., Ltd. It was founded in 2008, is a specialized in CNC glue dispenser. automatic dispensing machine, electronic product dispensing machines, multi-axis dispensing machine, PCB dispensing machines .Liujiang have granted the certification of CE. It’s a research,development,manufacturing and sales of international high and new technology enterprise. R& D Headoffice is located in Dongguan city, Guangdong province, China. The total area is 1500 square meters, We have advanced R&D center of the engineers and technicians 18 people, 2 modern production workshops , more than 130 staffs.
