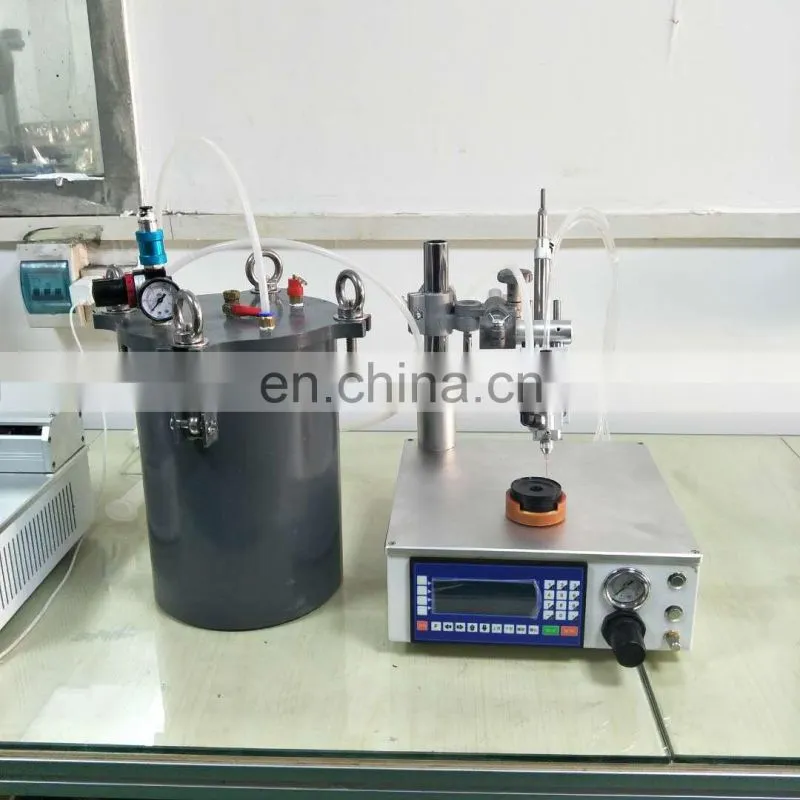

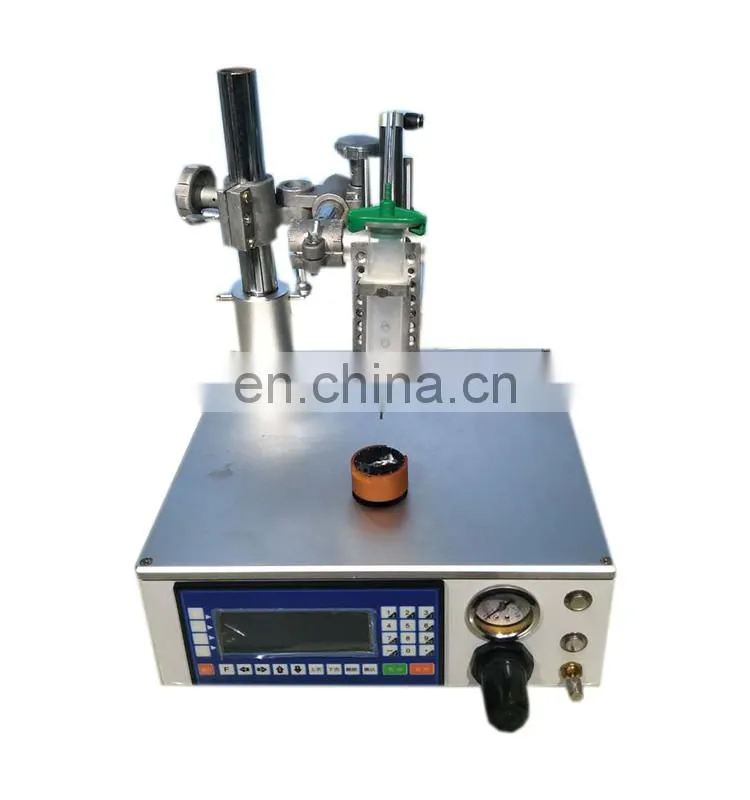

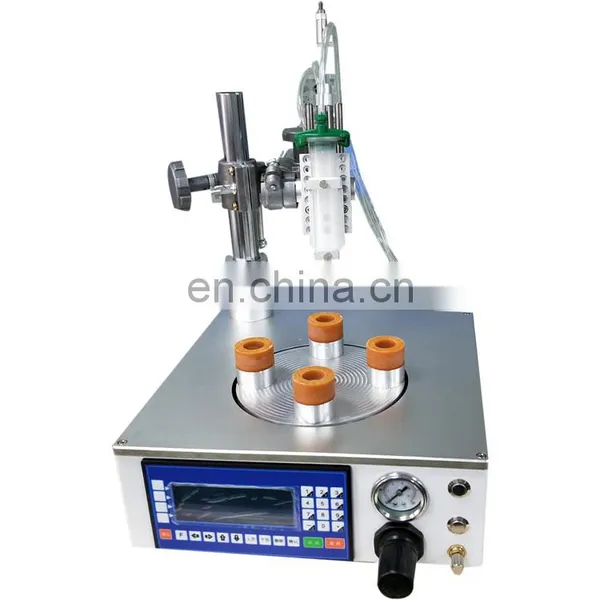

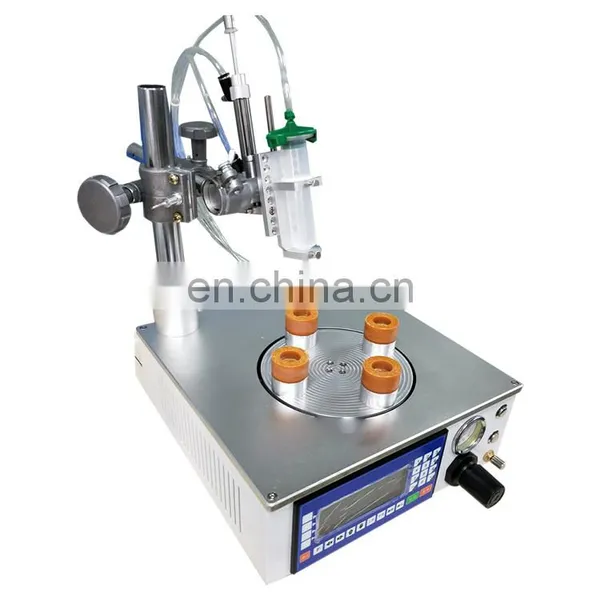

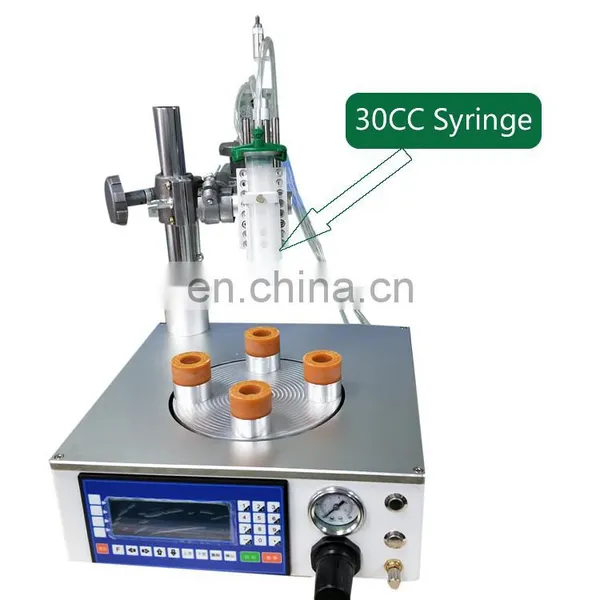

Semi-automatic automatic epoxy resin UV glue doming machine dispensing machine viscous fluid keypad dispenser

 1.parameter

Dimensions: 550 * 650 * 750(mm)

Weight: 15KG

Power supply voltage :220 (V)

Power :150 (W)

Air source :0.7

Spit time adjustment :0.1 (S)

Spit out the frequency of 60 (times / min)

The minimum amount of discharge 0.1 (ml)

This product is two-axis, with a foot switch.

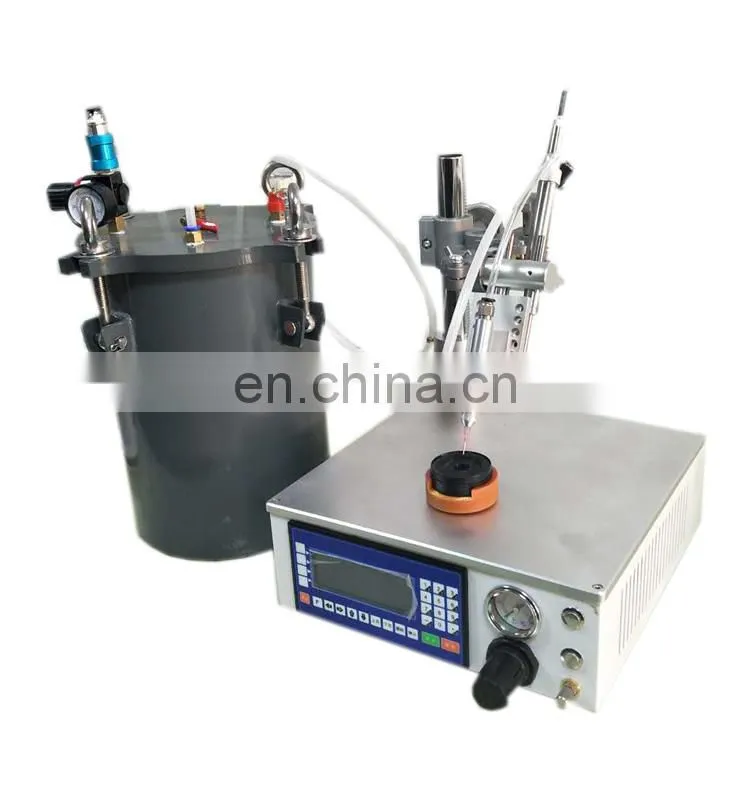

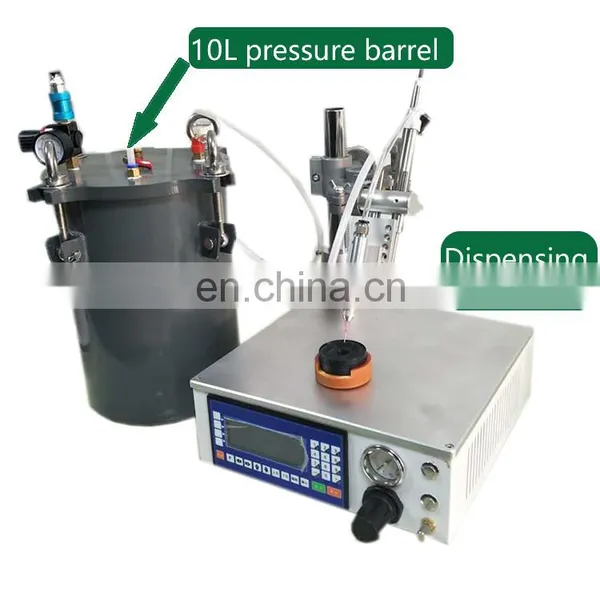

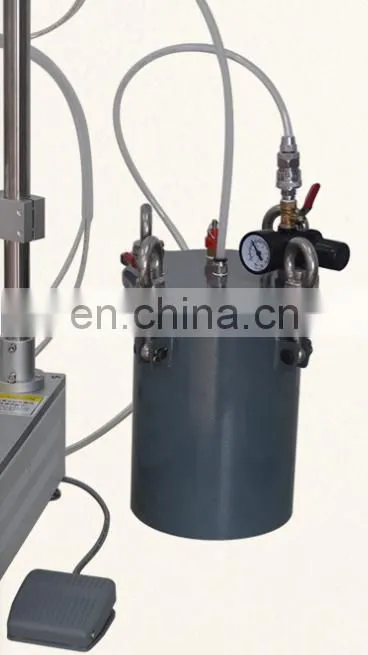

Differences: with a syringe with a pressure barrel(10L)

Automatic: automatic operation, air operation, single step operation

Manual: Positive and negative motor, back to the program zero, back to mechanical zero, output control.

2. System composition

Control system consists of the following components:

High-performance, high-speed 32-bit

LCD (resolution: 192 × 64)

Special motion control chip (signal output: 5V pulse + direction)

Input and output (14 photoelectric isolation 24V input, 8 photoelectric isolation 24V output, single channel rated 500mA)

The maximum program line 480 lines

Contact key array (28 keys).

3 technical indicators

Minimum data unit: 0.001mm

Maximum data size: ± 99999.999mm

Fast motion speed limit: 9000mmmin (when pulse equivalent is 0.001mm)

Maximum processing speed limit: 9000mmmin (when the pulse equivalent is 0.001mm)

The maximum pulse output frequency: 150KHz

System main functions: automatic, manual, program, parameters, self-test, settings and so on.

Work table rotary diameter    250

Drive precision stepper       motor

Motor speed               0 ~ 200 rpm

Mechanical repeat ability     ± 0.01mm

Up and down the action frequency is greater than 60 times

I / O signal input -          No contact or contact

Output Dispensing ends     standard level signal output

Provide air pressure        0.3MPa above

Power supply             AC100V-110V, 60Hz

AC220V-240V,  50Hz, 50W

Dimensions              300mm × 300mm × 110mm

Weight                  6kg

4.for glue

For colloids: red plastic, yellow plastic, silver paste, UV curable plastic, lubricants, epoxy resin, fast curing plastic, silicone resin and other materials

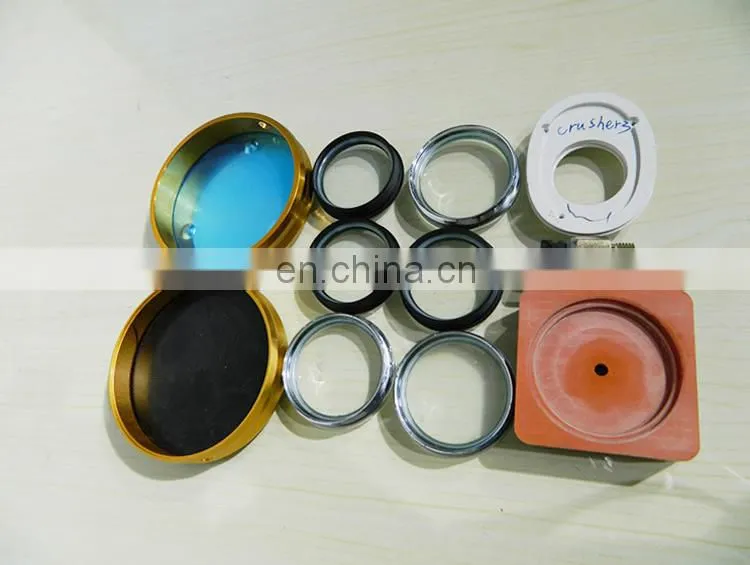

Product use: speakers, sound film, buzzer, bearings, micro-motors, watches, voice coil, bald, such as circular glue operation.

 Packaging :wooden

Shipping:3 to 8 days afer payment
