Home > Products > Automatic Glue Dispenser > Automated Epoxy Resin 3 axis bench dispensing machine

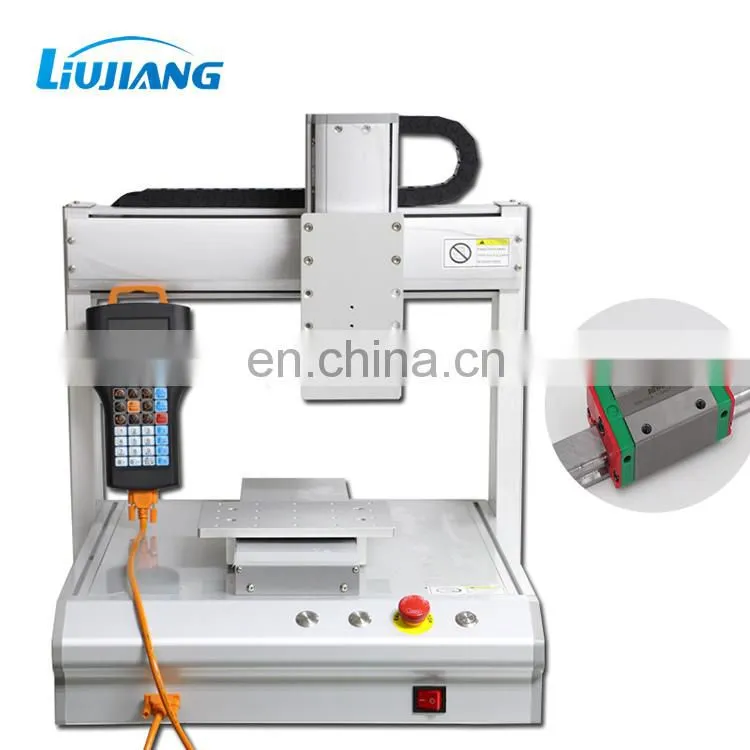

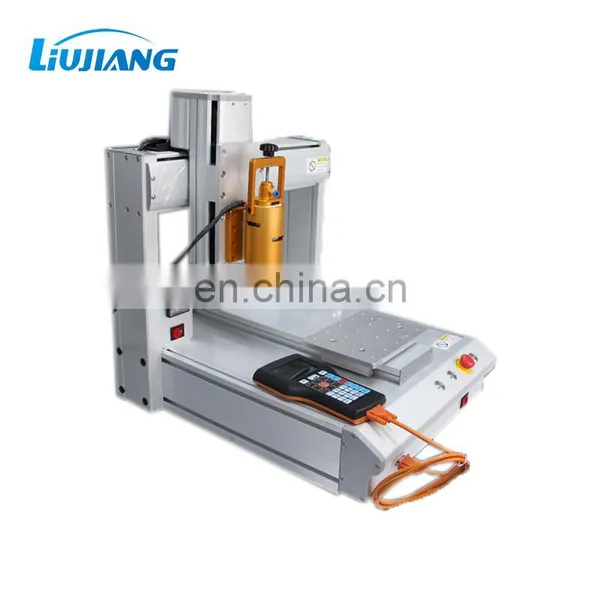

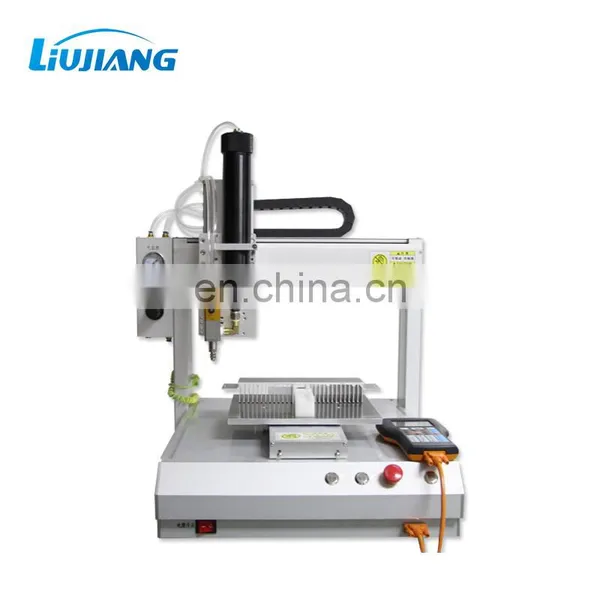

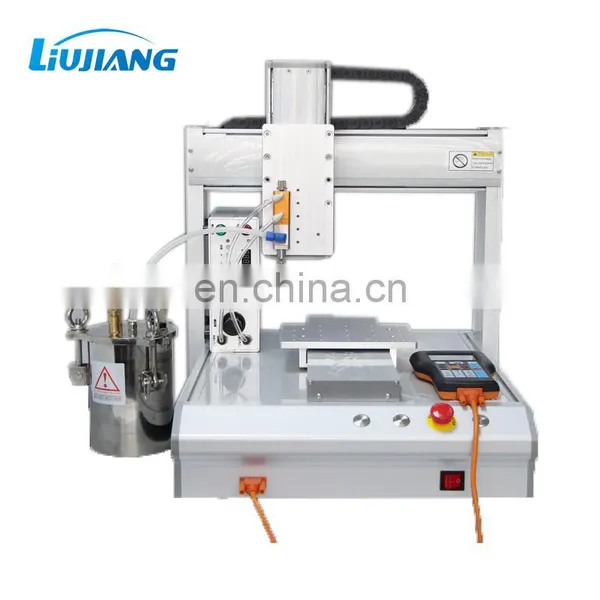

Automated Epoxy Resin 3 axis bench dispensing machine
- 1000 per Month
- T/T Credit Card
Product Description
Item/Model | LJ-D3311 | LJ-D3312 | LJ-D3313 | LJ-D3314 |
Number of axes | 3 | 3 | 3 | 3 |
Maximum working area (X / Y / Z) | 300 / 300 / 100 mm | 300 / 300 / 100 mm | 300 / 300 / 100 mm | 300 / 300 / 100 mm |
Head Number | 1 | 2 | 3 | 4 |
Rotation Axis | - | - | - | - |
Workpiece payload | 10 kg (22.0 lb) | 10 kg (22.0 lb) | 10 kg (22.0 lb) | 10 kg (22.0 lb) |
Tool payload | 5 kg (11.0 lb) | 5 kg (11.0 lb) | 5 kg (11.0 lb) | 5 kg (11.0 lb) |
Maximum speed(XY / Z) | 500 / 320 mm/sec | 500 / 320 mm/sec | 500 / 320 mm/sec | 500 / 320 mm/sec |
Unit weight | 45 kg | 45 kg | 46kg | 46 kg |
Dimensions | 450W x 650H x600D mm | 450W x 650H x600D mm | 450W x 650H x600D mm | 450W x 650H x600D mm |
Drive system | 3-phase micro-stepping motor | 3-phase micro-stepping motor | 3-phase micro-stepping motor | 3-phase micro-stepping motor |
Memory capacity | 1–99 programs | 1–99 programs | 1–99 programs | 1–99 programs |
1–9,999 points per program | 1–9,999 points per program | 1–9,999 points per program | 1–9,999 points per program | |
Data storage | USB | USB | USB | USB |
General purpose I/O | 8 inputs / 8 outputs | 8 inputs / 8 outputs | 8 inputs / 8 outputs | 8 inputs / 8 outputs |
Drive method | PTP and CP | PTP and CP | PTP and CP | PTP and CP |
Dispensing controller | External | External | External | External |
Power supply | Auto-switching | Auto-switching | Auto-switching | Auto-switching |
AC100–240V, 750 W | AC100–240V, 750 W | AC100–240V, 750 W | AC100–240V, 750 W | |
Interpolation | 3 axes (3D space) | 3 axes (3D space) | 3 axes (3D space) | 3 axes (3D space) |
Repeatability | ±0.02 mm | ±0.02 mm | ±0.02 mm | ±0.02 mm |
Working temperature | 10–40° C (50–104° F) | 10–40° C (50–104° F) | 10–40° C (50–104° F) | 10–40° C (50–104° F) |

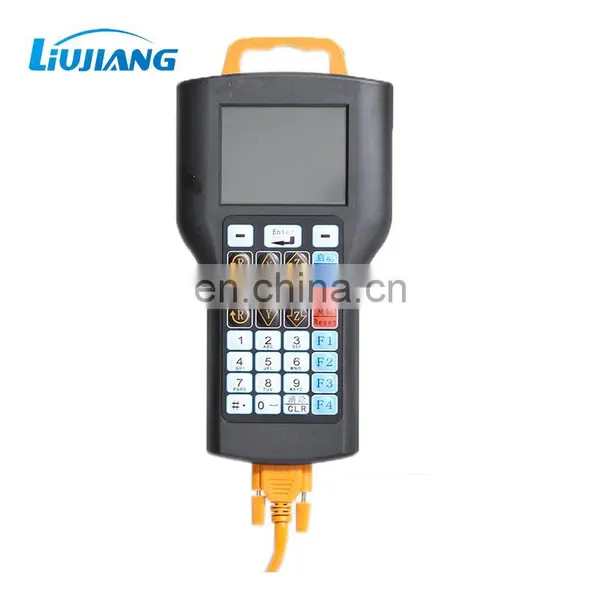

Teach pendant(ENG) | Included | Included | Included | Included |
Moving Method | Point to Point, Linear, Circle | Point to Point, Linear, Circle | Point to Point, Linear, Circle | Point to Point, Linear, Circle |
Available Graph | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line |
Heating function | Optional | Optional | Optional | Optional |
Preheat function | Optional | Optional | Optional | Optional |
Pressure | 4-7kg f/cm2 | 4-7kg f/cm2 | 4-7kg f/cm2 | 4-7kg f/cm2 |
Approvals | CE | CE | CE | CE |
Gifts
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English
3. OEM&ODM
4. Good quality paper box & carton packing
5. Double check before shipping
6. Safely Shipping method,such as DHL /EMS /FEDEX/TNT /UPS
7. Ocean Freight or cargo forwarder service
8. Sample order in small quantity is acceptable
For more detailed information or catalog, please kindly contact us!
Professional packaging: 1pc with poly bag.
wooden case and canton box are available.
make sure the machine safe.
Shipping :7 working days after order confirmed
Contact: Andy
Trade manager:Andy wang
wechat:63088202 or liujiangchina
skype:+8617520179232
Dongguan Liujiang Automation Co.,Ltd
Factory address: Floor A, Xincheng Building.Fuhai Road,Changan town, Dongguan city,Guangdong,China
www.ljzdh.en.china.cn
