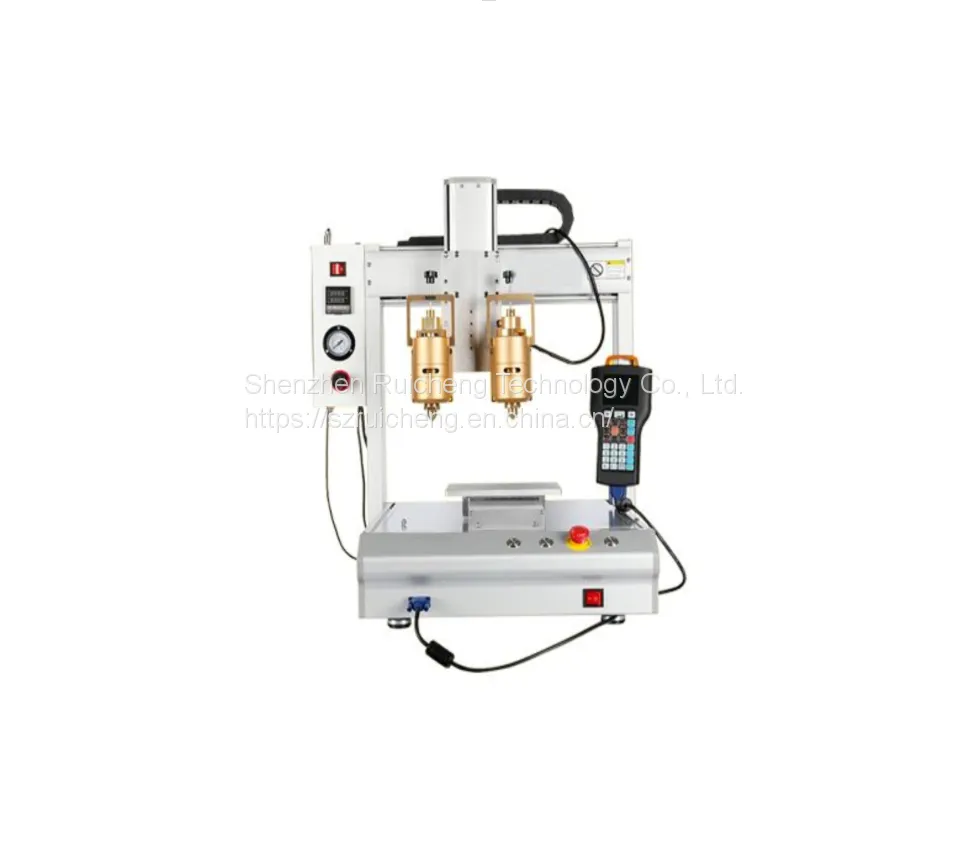

Multi-axis Single-Head Double Y-Type Automatic Glue Dispensing Machine Hotmelt Dispenser

automatic glue dispenser parameters:

Power supply voltage: 220V

Power: 300W

Air source: 0.5

Spit out time adjustment: 0.5S

Spit out frequency: 50 times/min

Minimum discharge volume: 0.02ml,

Temperature control range: 0-500℃

Temperature error: ±3℃

Specifications: desktop or floor type

Equipment introduction:

Glue dispenser, also known as glue spreader, glue dispenser, glue dispenser, glue filling machine, etc., specializes in fluid control. The automatic machine that drips and coats the fluid on the surface of the product or the inside of the product can realize 3D and 4D path dispensing, precise positioning, precise control of glue, no drawing, no leakage, no glue. With the increasing production cost of enterprises, manual and automatic dispensing machines replace most of the dispensing stations, which are simple to operate, convenient to use, efficient, and uniform in quality.

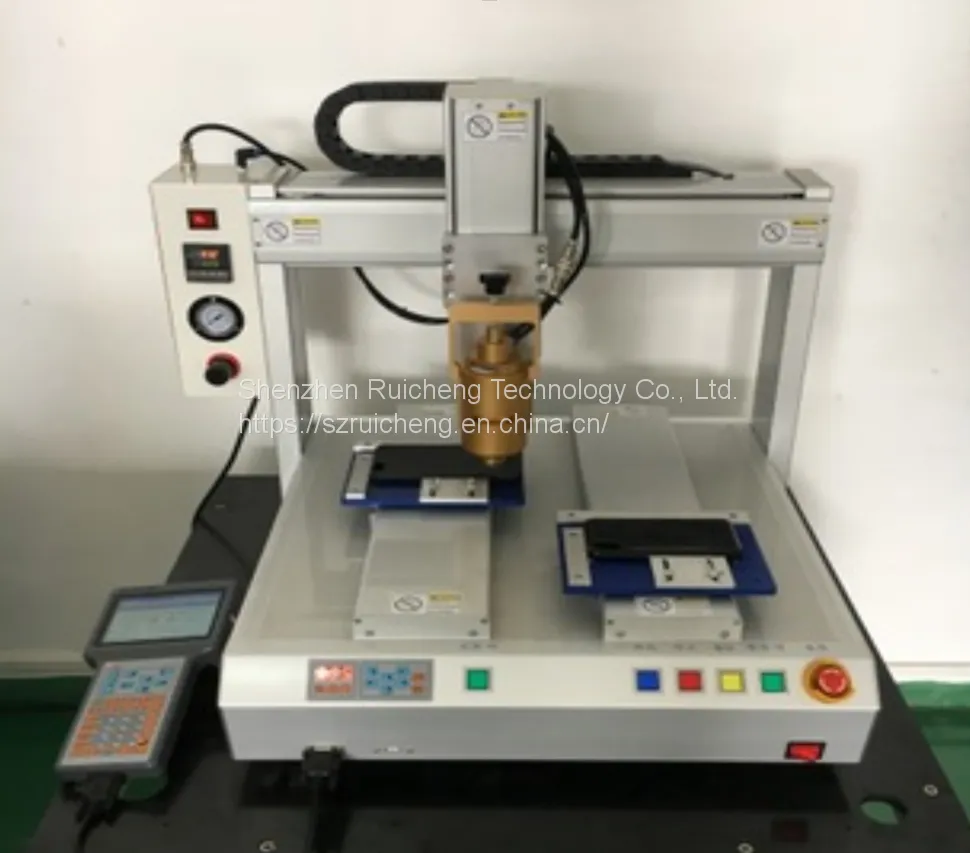

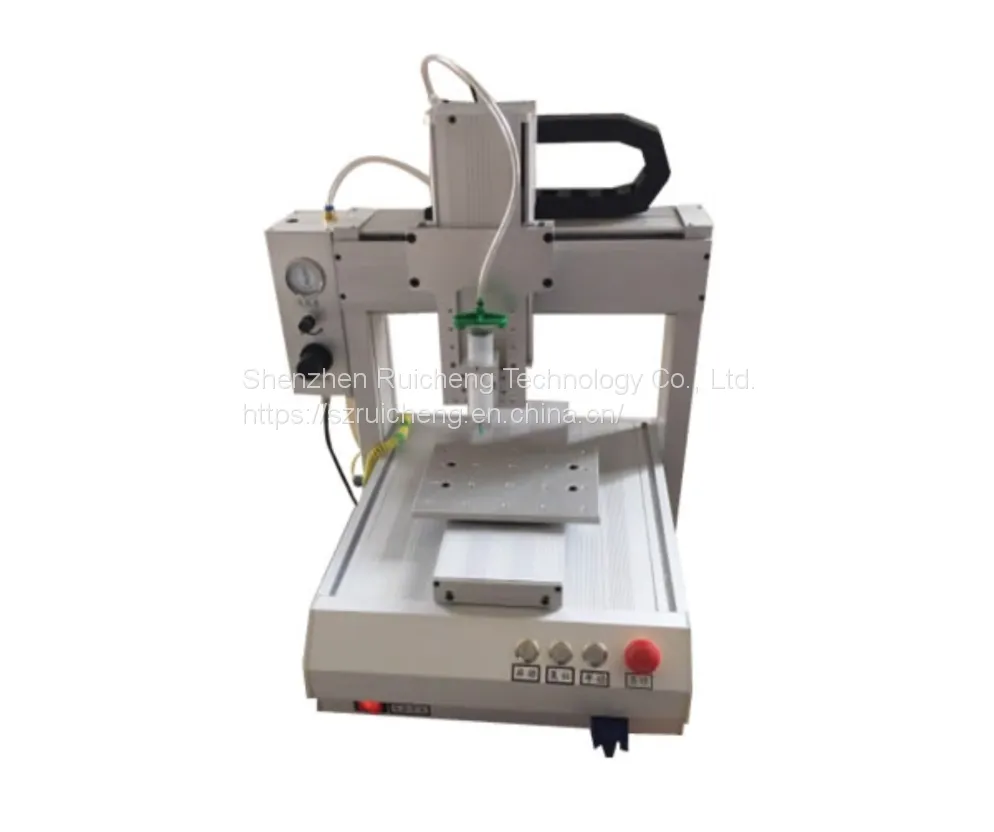

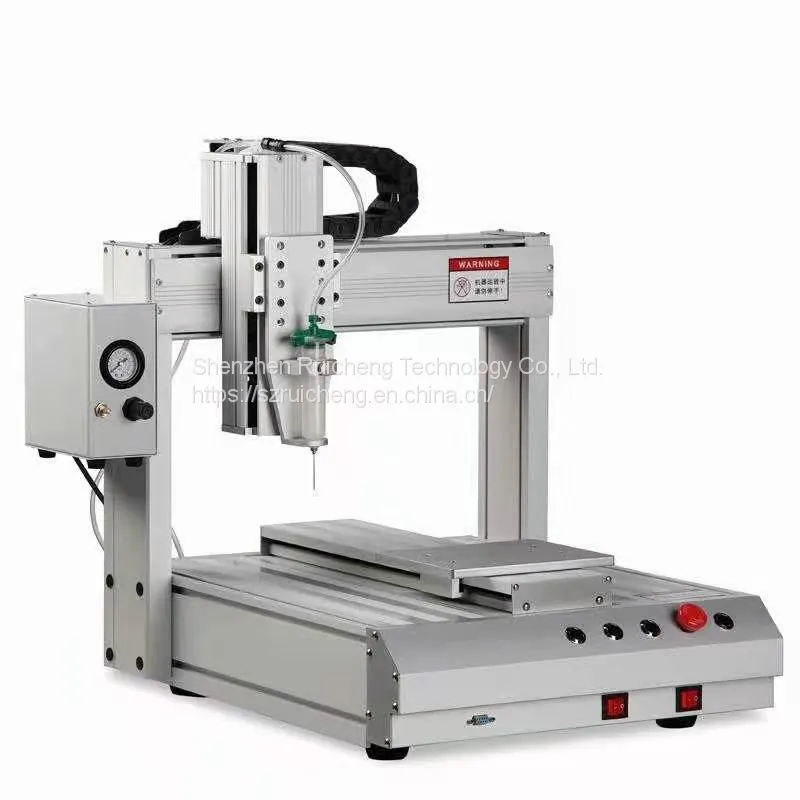

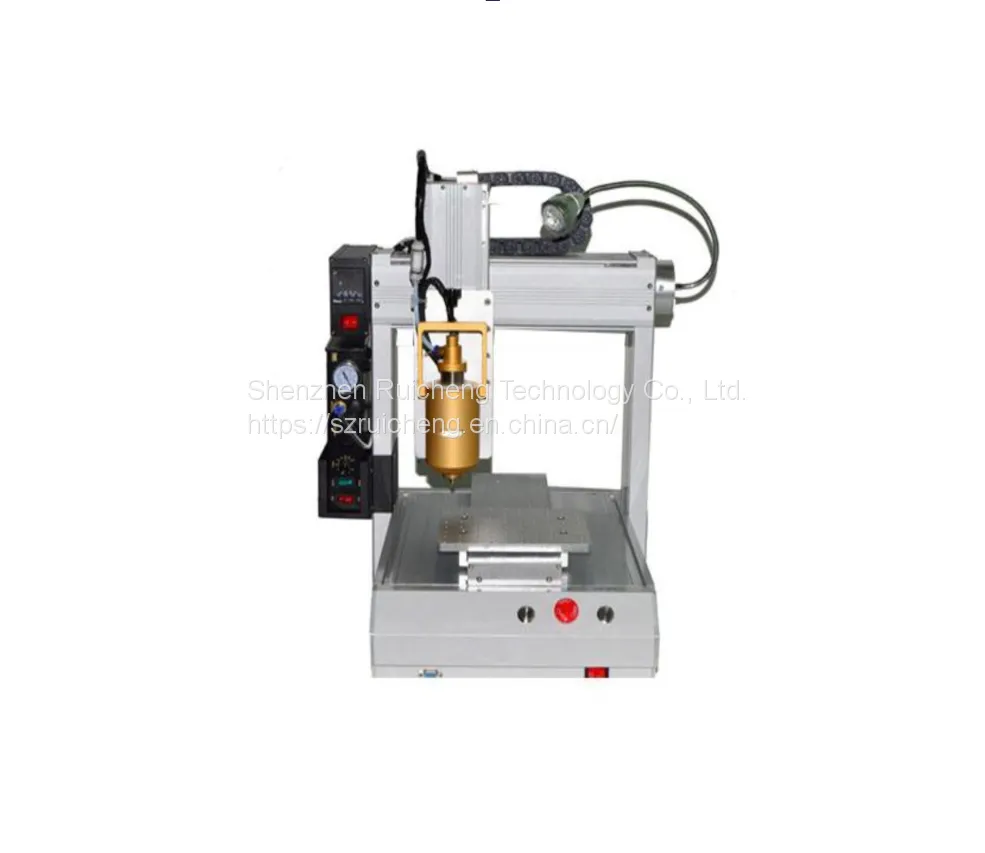

desktop glue dispenser

Equipment features and advantages:

1. Chinese operation interface, easy to learn and understand.

2. It has the functions of drawing points, lines, surfaces, arcs, circles, continuous interpolation of irregular curves and three-axis linkage.

3. The large storage capacity of the hard disk, and the software has the functions of regional array, translation and rotation calculations.

4. The glue volume size, glue speed, glue dispensing time, and glue stop time can all be parameterized, and the glue output is stable without leaking glue.

5. Optional CCD auxiliary program editing and teaching functions enable real-time tracking and display of coordinate trajectory positions, shorten program editing time and improve programming efficiency.

6. It can be matched with the automatic feeding and discharging conveying mechanism of the assembly line to improve the productivity efficiency and the competitive advantage of the enterprise.
