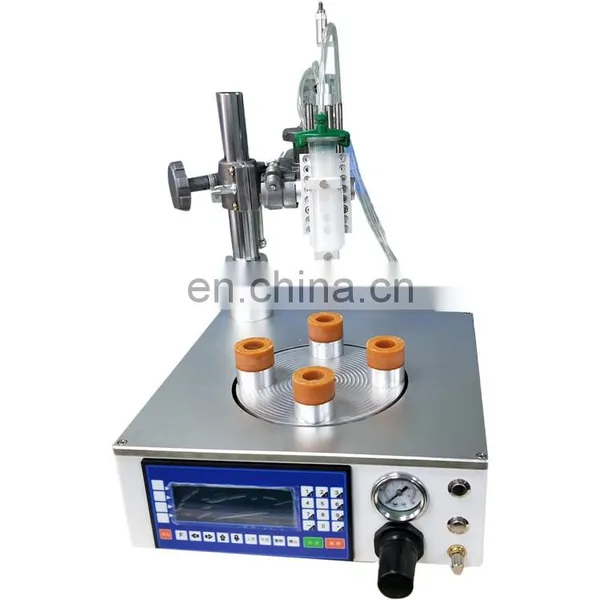

Help CenterFour-station Round Dispensing Machine Desktop Robots for Electronics Production
Related Products
-
Glue Dispenser A B Mixing Doming Liquid Glue Dispensing Machine Equipment for Epoxy ResinNegotiableMOQ: 1 -
Automatic 3 Axis Dispensing Machine For Solder PasteNegotiableMOQ: 1
-
Automated Epoxy Resin 3 Axis Bench Dispensing MachineNegotiableMOQ: 1
-
Liujiang Five Axis Glue Dispensing Machine With Two Y Axis Rotation For High Frequency Transformer DispensingNegotiableMOQ: 1
-
Three-Axis Desktop Automatic Glue Dispensing Machine Glue Dispenser for IndustryNegotiableMOQ: 1 Set
1.parameter
Dimensions: 550 * 650 * 750(mm)
Weight: 15KG
Power supply voltage :220 (V)
Power :150 (W)
Air source :0.7
Spit time adjustment :0.1 (S)
Spit out the frequency of 60 (times / min)
The minimum amount of discharge 0.1 (ml)
| product name | Round dispenser machine |
This product is two-axis, with a foot switch.
Differences: with a syringe with a pressure barrel(10L)
Automatic: automatic operation, air operation, single step operation
Manual: Positive and negative motor, back to the program zero, back to mechanical zero, output control.
2. System composition
Control system consists of the following components:
High-performance, high-speed 32-bit
LCD (resolution: 192 × 64)
Special motion control chip (signal output: 5V pulse + direction)
Input and output (14 photoelectric isolation 24V input, 8 photoelectric isolation 24V output, single channel rated 500mA)
The maximum program line 480 lines
Contact key array (28 keys).
3 technical indicators
Minimum data unit: 0.001mm
Maximum data size: ± 99999.999mm
Fast motion speed limit: 9000mmmin (when pulse equivalent is 0.001mm)
Maximum processing speed limit: 9000mmmin (when the pulse equivalent is 0.001mm)
The maximum pulse output frequency: 150KHz
System main functions: automatic, manual, program, parameters, self-test, settings and so on.
Work table rotary diameter 250
Drive precision stepper motor
Motor speed 0 ~ 200 rpm
Mechanical repeat ability ± 0.01mm
Up and down the action frequency is greater than 60 times
I / O signal input - No contact or contact
Output Dispensing ends standard level signal output
Provide air pressure 0.3MPa above
Power supply AC100V-110V, 60Hz
AC220V-240V, 50Hz, 50W
Dimensions 300mm × 300mm × 110mm
Weight 6kg
4.for glue
For colloids: red plastic, yellow plastic, silver paste, UV curable plastic, lubricants, epoxy resin, fast curing plastic, silicone resin and other materials
Product use: speakers, sound film, buzzer, bearings, micro-motors, watches, voice coil, bald, such as circular glue operation.
Packaging: wooden
Shipping:3 to 8 days after payment
Liujiang 10 years focused on research and development in the field of dispensing and Solder, Lock screw manufacture.
Dongguan Liujiang Automation Co., Ltd. It was founded in 2008, is a specialized in CNC glue dispenser. automatic dispensing machine, electronic product dispensing machines, multi-axis dispensing machine, PCB dispensing machines .Liujiang have granted the certification of CE. It’s a research,development,manufacturing and sales of international high and new technology enterprise. R& D Headoffice is located in Dongguan city, Guangdong province, China. The total area is 1500 square meters, We have advanced R&D center of the engineers and technicians 18 people, 2 modern production workshops , more than 130 staffs.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English
3. OEM&ODM
4. Good quality paper box & carton packing
5. Double check before shipping
6. Safely Shipping method,such as DHL /EMS /FEDEX/TNT /UPS
7. Ocean Freight or cargo forwarder service
8. Sample order in small quantity is acceptable
For more detailed information or catalog, please kindly contact us!
Contact: Andy
Trade manager:Andy wang
Dongguan Liujiang Automation Co.,Ltd
www.ljzdh.en.china.cn
|
if you are interested in our products,welcome to contact us and send inquiry. ↓↓↓ |
