Best Selling 5-axis Liquid Solder Dispensing Robot in China
- T/T Credit Card
You May Like
-
High Quality Hot Selling Automatic Xyz 3 Axis Dispensing Machine Robot
-
Liujiang New Epoxy Resin Sticker 3 Axis Dispensing Machine
-
New Semi-automatic LED Bulb A Bulb B Glue Dispensing Robot
-
Semi Automatic Accurate and Efficient Benchtop Adhesive Buzzer Dispensing Machine
-
Glue Dispensing Robots Automatically Dispense Solder Paste With CE
-
Liujiang Five Axis Epoxy Resin Glue Dispenser Equipment
Product Description
5 axis dispensing machine
1 new product
2.High efficiency
3.double head
4 Function warranty
5. CE approved
Parameter
| Item/Model | L400B | L500B |
| Number of axes | 5 | 5 |
| Maximum working area (X / Y / Z/A/B) | 400 / 400 / 100 mm/360°/360° | 500 / 500 / 100 mm/360°/360° |
| Workpiece payload | 10 kg (22.0 lb) | 10 kg (22.0 lb) |
| Tool payload | 5 kg (11.0 lb) | 5 kg (11.0 lb) |
| Maximum speed(XY / Z) | 500 / 320 mm/sec | 500 / 320 mm/sec |
| Unit weight | 80.5 kg (180 lb) | 90 kg (190 lb) |
| Dimensions | 850W x 700H x 850D mm | 900W x 780H x 860D mm |
| Drive system | 3-phase micro-stepping motor | 3-phase micro-stepping motor |
| Memory capacity | 1–99 programs | 1–99 programs |
| 1–9,999 points per program | 1–9,999 points per program | |
| Data storage | USB | USB |
| General purpose I/O | 8 inputs / 8 outputs | 8 inputs / 8 outputs |
| Drive method | PTP and CP | PTP and CP |
| Dispensing controller | External | External |
| Power supply | Auto-switching | Auto-switching |
| AC100–240V, 750 W | AC100–240V, 750 W | |
| Interpolation | 3 axes (3D space) | 3 axes (3D space) |
| Repeatability | ±0.02 mm | ±0.02 mm |
| Working temperature | 10–40° C (50–104° F) | 10–40° C (50–104° F) |
| Teach pendant | Included | Included |
| Tip detection | Optional | Optional |
| Heating function | Optional | Optional |
| Preheat function | Optional | Optional |
| Five-axis and three-axis two-in-one | Optional | Optional |
| Approvals | CE | CE |

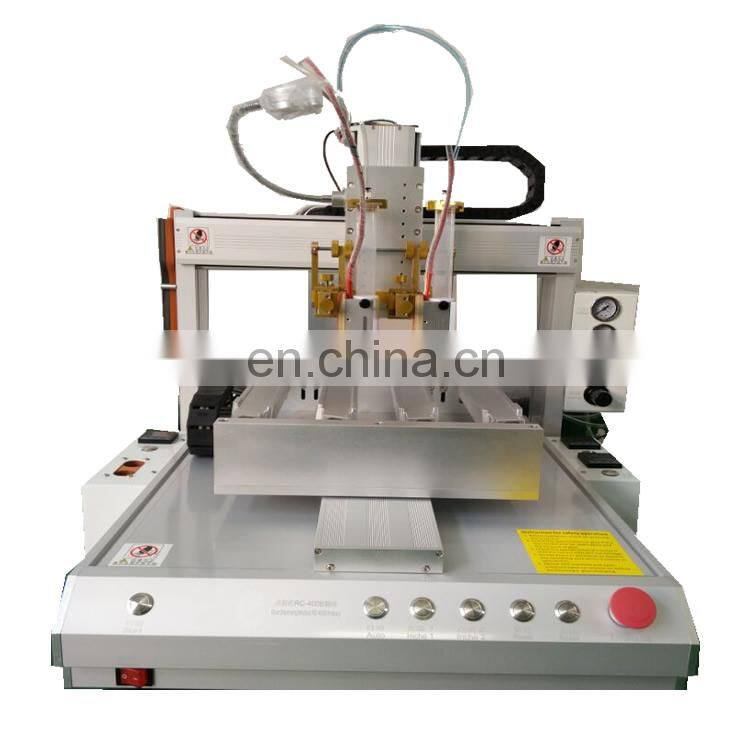

5 Axis Benchtop Dispensing Machine
LJ-400B is an automated X/Y/Z desktop dispensing Robot with two 360 degree rotary platform,
which can realize dispensing glue on 4 side of the product,such as transformer.etc
Detials:
1.X/Y/Z desktop dispensing Robot with two 360 degree rotary platform,
which can realize dispensing glue on 4 side of the product.
2.Distance of double head is adjustble
3.A/B rotation platform can be controlled independently.
4.X/Y axis and two rotation axis adopt hight quality close-loop step motor and it's driving system,
ensure stable and precise run of motion system.
5.Double head dispensing system,distance between double head is adjustable.
6.Machine can fit various quality dispensing valve which can meet different requirement.

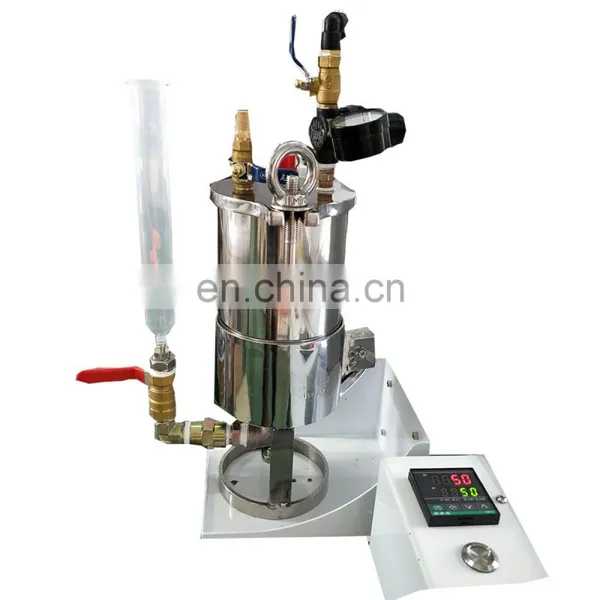

7.Customized glue feeding system like cartridge syrine,pressure tank is opitonal to meet different requirement.
8.handled teaching pendant with powerful software,all english interface,easy to operate.
9.Powerful software has the painting point,straight line,multi line segment,
three-dimensional arc(spatial arc),round,rectangular,runway,coating,automatic corner rounding,
irregular 3D spline curve and other graphical elements,rich handmade teaching function and graphical preview function.
10.Powerful software has route copy and array copy function,park location setting function,coordinate offset correction function,different dispensing height and lifting height setting function,pause and continue running function etc.
- Packaging Details:Wooden packing
- Delivery Time:within 10 days upon receipt of your payment
Liujiang 10 years focused on research and development in the field of dispensing and Solder,Lock screw manufacture.

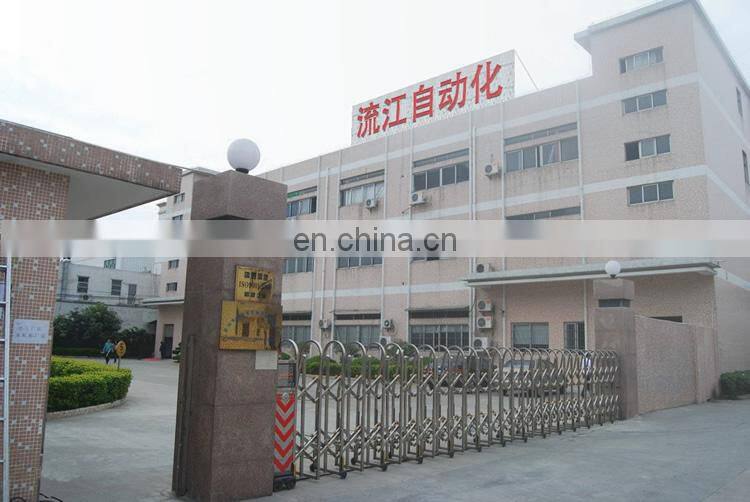

Dongguan Liujiang Automation Co., Ltd. It was founded in 2008, is a specialized in CNC glue dispenser. automatic dispensing machine, electronic product dispensing machines, multi-axis dispensing machine, PCB dispensing machines .Liujiang have granted the certification of CE. It’s a research,development,manufacturing and sales of international high and new technology enterprise. R& D Headoffice is located in Dongguan city, Guangdong province, China. The total area is 1500 square meters, We have advanced R&D center of the engineers and technicians 18 people, 2 modern production workshops , more than 130 staffs.
