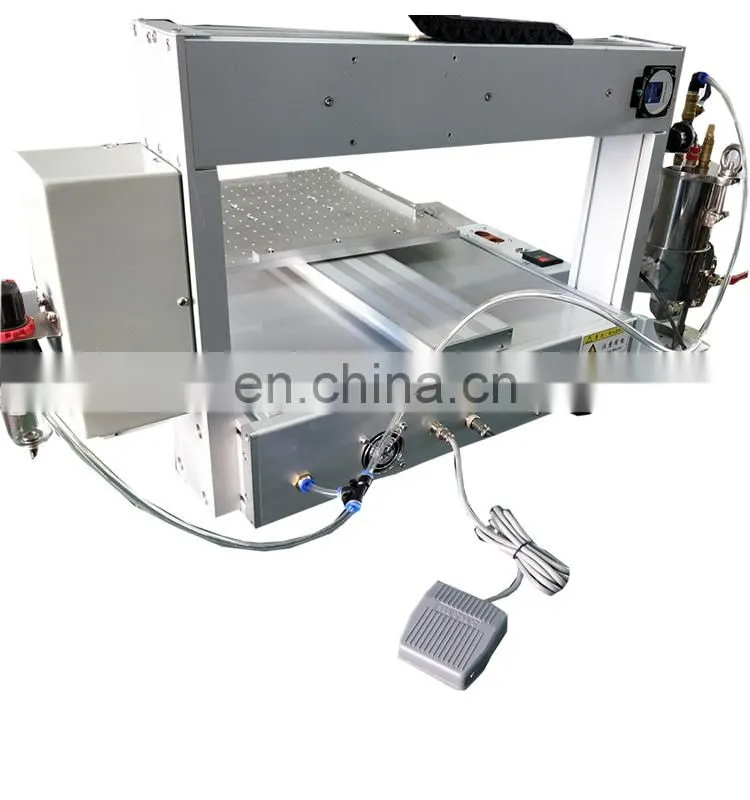

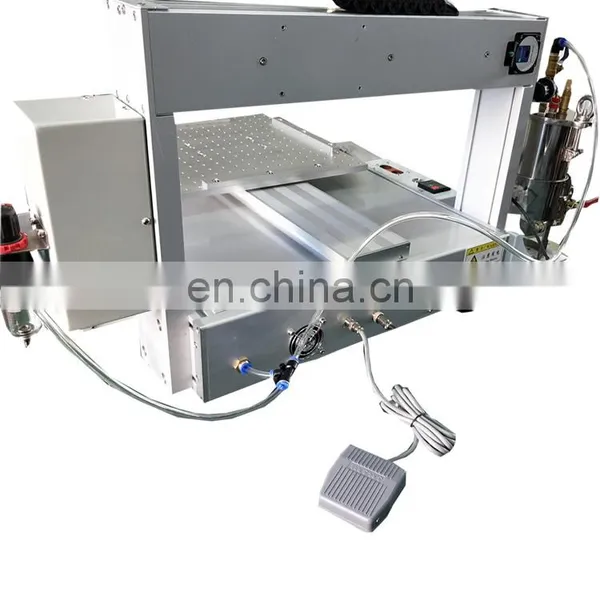

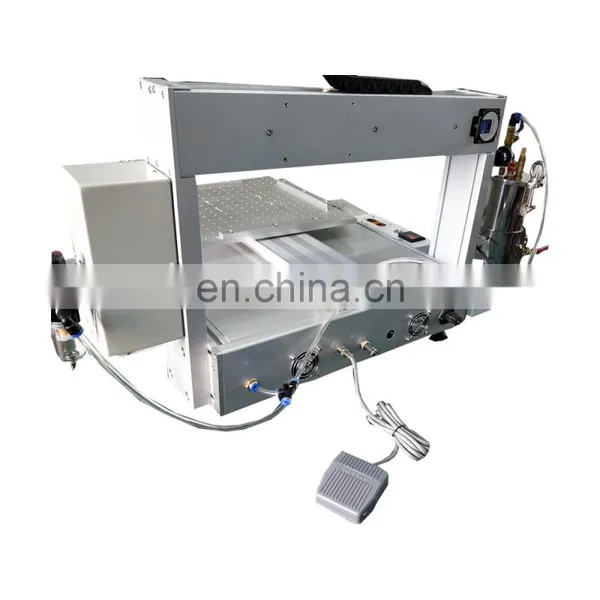

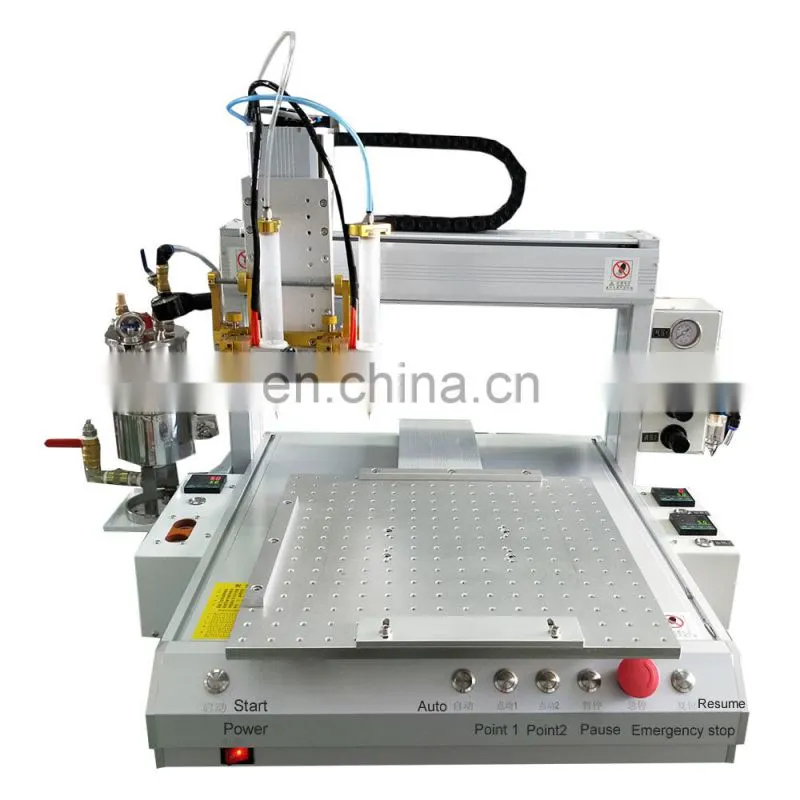

High Quality Hot Selling Automatic Xyz 3 Axis Dispensing Machine Robot
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Shenzhen
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shenzhen, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Liujiang New Epoxy Resin Sticker 3 Axis Dispensing MachineNegotiableMOQ: 1 -
New Semi-automatic LED Bulb A Bulb B Glue Dispensing RobotNegotiableMOQ: 1
-
Semi Automatic Accurate and Efficient Benchtop Adhesive Buzzer Dispensing MachineNegotiableMOQ: 1
-
Glue Dispensing Robots Automatically Dispense Solder Paste With CENegotiableMOQ: 1
-
Liujiang Five Axis Epoxy Resin Glue Dispenser EquipmentNegotiableMOQ: 1
Product Description
Parameter
| Item/Model | L400B | L500B |
| Number of axes | 5 | 5 |
| Maximum working area (X / Y / Z/A/B) | 400 / 400 / 100 mm/360°/360° | 500 / 500 / 100 mm/360°/360° |
| Workpiece payload | 10 kg (22.0 lb) | 10 kg (22.0 lb) |
| Tool payload | 5 kg (11.0 lb) | 5 kg (11.0 lb) |
| Maximum speed(XY / Z) | 500 / 320 mm/sec | 500 / 320 mm/sec |
| Unit weight | 80.5 kg (180 lb) | 90 kg (190 lb) |
| Dimensions | 850W x 700H x 850D mm | 900W x 780H x 860D mm |
| Drive system | 3-phase micro-stepping motor | 3-phase micro-stepping motor |
| Memory capacity | 1–99 programs | 1–99 programs |
| 1–9,999 points per program | 1–9,999 points per program | |
| Data storage | USB | USB |
| General purpose I/O | 8 inputs / 8 outputs | 8 inputs / 8 outputs |
| Drive method | PTP and CP | PTP and CP |
| Dispensing controller | External | External |
| Power supply | Auto-switching | Auto-switching |
| AC100–240V, 750 W | AC100–240V, 750 W | |
| Interpolation | 3 axes (3D space) | 3 axes (3D space) |
| Repeatability | ±0.02 mm | ±0.02 mm |
| Working temperature | 10–40° C (50–104° F) | 10–40° C (50–104° F) |
| Teach pendant | Included | Included |
| Tip detection | Optional | Optional |
| Heating function | Optional | Optional |
| Preheat function | Optional | Optional |
| Five-axis and three-axis two-in-one | Optional | Optional |
| Approvals | CE | CE |
400D
| Item/Model | LJ-D4411 | LJ-D4412 | LJ-D4413 | LJ-D4414 |
| Number of axes | 3 | 3 | 3 | 3 |
| Maximum working area (X / Y / Z) | 400 / 400 / 100 mm | 400 / 400 / 100 mm | 400 / 400 / 100 mm | 400 /400 / 100 mm |
| Head Number | 1 | 2 | 3 | 4 |
| Rotation Axis | - | - | - | - |
| Workpiece payload | 10 kg (22.0 lb) | 10 kg (22.0 lb) | 10 kg (22.0 lb) | 10 kg (22.0 lb) |
| Tool payload | 5 kg (11.0 lb) | 5 kg (11.0 lb) | 5 kg (11.0 lb) | 5 kg (11.0 lb) |
| Maximum speed(XY / Z) | 500 / 320 mm/sec | 500 / 320 mm/sec | 500 / 320 mm/sec | 500 / 320 mm/sec |
| Unit weight | 50 kg | 50 kg | 52kg | 53 kg |
| Dimensions | 560W x 690H x650D mm | 560W x 690H x650D mm | 560W x 690H x650D mm | 560W x 690H x650D mm |
| Drive system | 3-phase micro-stepping motor | 3-phase micro-stepping motor | 3-phase micro-stepping motor | 3-phase micro-stepping motor |
| Memory capacity | 1–99 programs | 1–99 programs | 1–99 programs | 1–99 programs |
| 1–9,999 points per program | 1–9,999 points per program | 1–9,999 points per program | 1–9,999 points per program | |
| Data storage | USB | USB | USB | USB |
| General purpose I/O | 8 inputs / 8 outputs | 8 inputs / 8 outputs | 8 inputs / 8 outputs | 8 inputs / 8 outputs |
| Drive method | PTP and CP | PTP and CP | PTP and CP | PTP and CP |
| Dispensing controller | External | External | External | External |
| Power supply | Auto-switching | Auto-switching | Auto-switching | Auto-switching |
| AC100–240V, 750 W | AC100–240V, 750 W | AC100–240V, 750 W | AC100–240V, 750 W | |
| Interpolation | 3 axes (3D space) | 3 axes (3D space) | 3 axes (3D space) | 3 axes (3D space) |
| Repeatability | ±0.02 mm | ±0.02 mm | ±0.02 mm | ±0.02 mm |
| Working temperature | 10–40° C (50–104° F) | 10–40° C (50–104° F) | 10–40° C (50–104° F) | 10–40° C (50–104° F) |
| Teach pendant(ENG) | Included | Included | Included | Included |
| Moving Method | Point to Point, Linear, Circle | Point to Point, Linear, Circle | Point to Point, Linear, Circle | Point to Point, Linear, Circle |
| Available Graph | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line | Line, Circle, Arc, Continuous Line, 3D Irregularity Line |
| Heating function | Optional | Optional | Optional | Optional |
| Preheat function | Optional | Optional | Optional | Optional |
| Pressure | 4-7kg f/cm2 | 4-7kg f/cm2 | 4-7kg f/cm2 | 4-7kg f/cm2 |
| Approvals | CE | CE | CE | CE |
Packaging & Shipping
Professional packaging: 1pc with poly bag.
wooden case and canton box are available.
make sure the machine safe.
Shipping :7 working days after order confirmed
Company Information
Liujiang 10 years focused on research and development in the field of dispensing and Solder,Lock screw manufacture.
Dongguan Liujiang Automation Co., Ltd. It was founded in 2008, is a specialized in CNC glue dispenser. automatic dispensing machine, electronic product dispensing machines, multi-axis dispensing machine, PCB dispensing machines .Liujiang have granted the certification of CE. It’s a research,development,manufacturing and sales of international high and new technology enterprise. R& D Headoffice is located in Dongguan city, Guangdong province, China. The total area is 1500 square meters, We have advanced R&D center of the engineers and technicians 18 people, 2 modern production workshops , more than 130 staffs.
