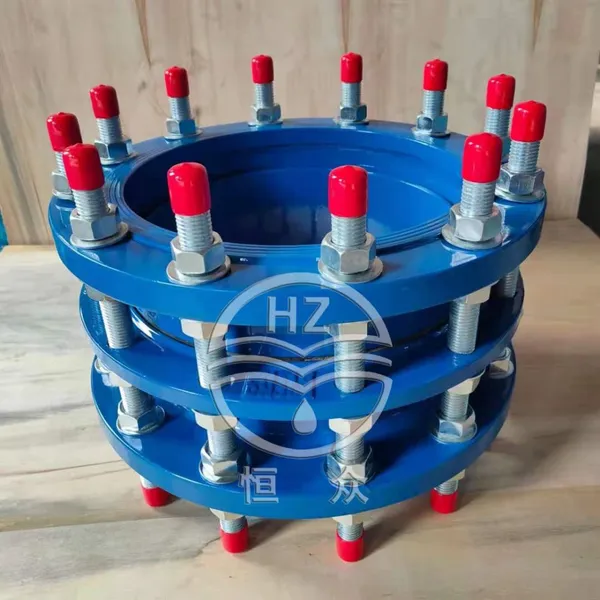

Help CenterHengzhong DN 40~2000mm PN10 PN16 PN25 Ductile Iron Pipe Fitting Dismantling Joint
Related Products
-
Stainless Steel 304/316 Double Flange Metal Expansion Joint/dismantling JointUS$ 85 - 3604MOQ: 100 Pieces -
Ductile Iron Pipe Flange Pipe Fitting Connector Dismantling JointUS$ 90 - 4512MOQ: 50 Pieces
-
Ductile Iron Pipe Fittings With Double Flange Metal Expansion JointUS$ 217 - 4758MOQ: 50 Pieces
-
Half Wire Double Flange Dismantling Joint, Plastic Spray AppearanceUS$ 26 - 1055MOQ: 50 Pieces
-
Detachable Double Flange Force Transmission JointUS$ 256 - 6547MOQ: 50 Pieces
Double flange force transfer joint is mainly used for loose sleeve connection of pump, valve and other accessories. The double flange loose sleeve force transfer joint is composed of loose sleeve expansion joint, short pipe flange, force transfer screw and other components. It can transfer the pressure thrust (blind plate force) of the connected parts and compensate the pipeline error, and cannot absorb the axial displacement. It is mainly used for loose connection of pump, valve, pipeline and other accessories.
Parameter
Nominal diameter: DN500mm-DN3200mm
Working pressure: 0.6-2.5mpa
Medium used: water and sewage.
Sealing material: NBR / EPDM
Manufacturing standard: GB 12465-2002.
Installation instructions
It is composed of body, sealing ring, gland, telescopic short pipe and other main parts. The product is suitable for the pipeline with flange connection on both sides. When installing, adjust the installation length of both ends of the product and the flange, and tighten the gland bolts diagonally and evenly to form a whole. It has a certain displacement, which is convenient to adjust according to the site size during installation and maintenance. During operation, the anti axial thrust can be transmitted to the whole pipeline.
Scope of application
This product is suitable for transporting seawater, fresh water, cold and hot water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, product oil, air, gas, steam with temperature not higher than 250 ℃ and granular powder, etc.
