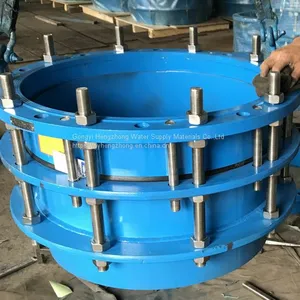

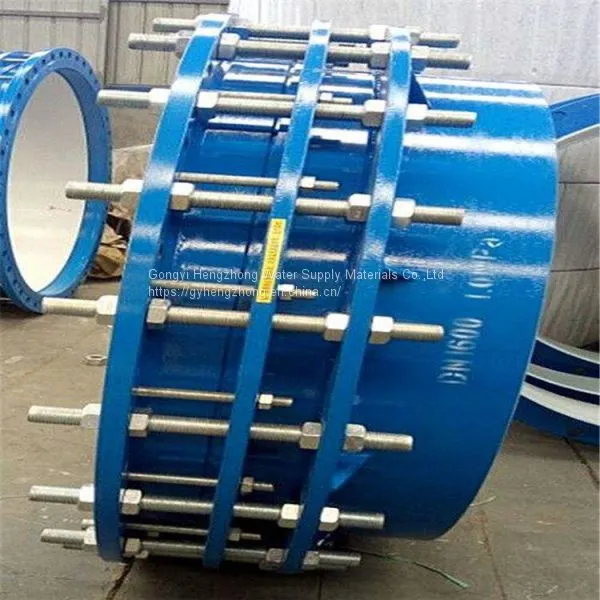

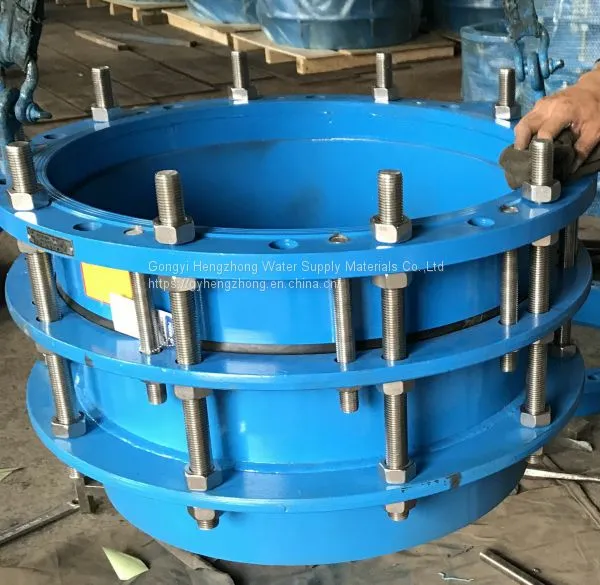

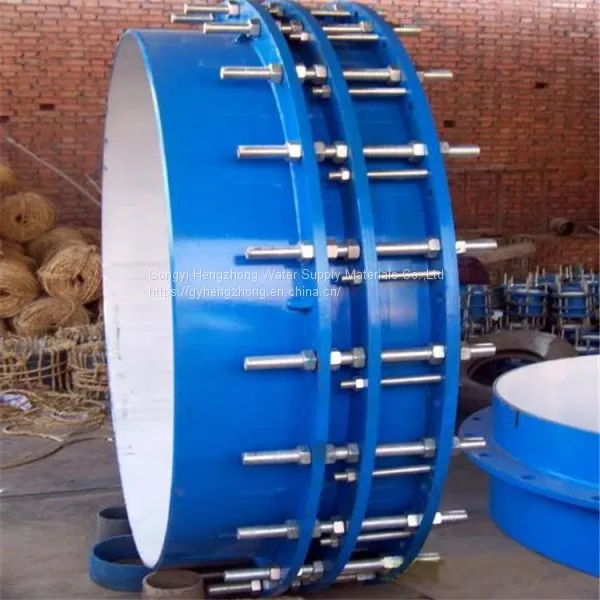

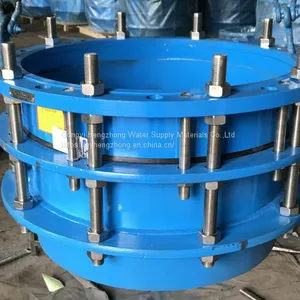

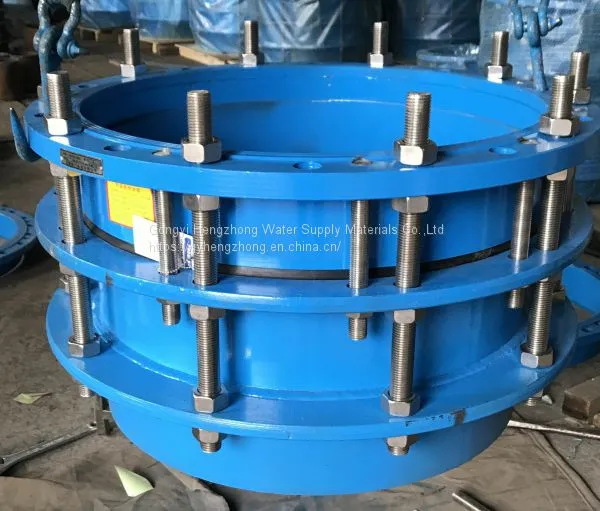

CF (VSSJAFG) single dowel joint flange is a loose set of expansion joint and short tube flange, dowel screw and other artifacts, it is the equipment such as pumps, valves and pipe connection of new products, connected by the bolt, to make it as a whole, and adjust the quantity to a certain extent, so that you can at the time of installation and maintenance, according to the on-site installation size adjustment, at work, can put the axial thrust and also to the whole pipeline. This not only improve work efficiency, and on the pump, valve and pipeline play a protective role.
[product name] : CF (VSSJAFG) single-flange power transmission joint (CF single-flange loosen sleeve power transmission compensation joint)
[product alias] : single flange transmission joint
Product specification: dn32mm-dn4000mm
[product pressure] : 0.6-2.5mpa
[product certification] : iso9001-2008
[scope of application] : [weak base, weak corrosion, oil, hot water, cold water, etc.]
[product material] : carbon steel, ductile iron, stainless steel.
[product color] : blue, can be customized.
[operating temperature] : -40 c to 80 c
Material list：
No. |
Name |
Quantity |
Material |
1 |
Body |
1 |
QT400-15，Q235A,ZG230-450，20 |
2 |
Gasket |
1 |
NBR |
3 |
Cover |
1 |
QT400-15，Q235A,ZG230-450，20 |
4 |
Limited short pipe |
1 |
Q234A，20，16Mn |
5 |
Nut |
4n |
Q235A，20，1Cr8Ni9Ti |
6 |
Long Stud |
n |
Q235A，35，1Cr8Ni9Ti |
7 |
bolt |
n |
Q235A，35，1Cr8Ni9Ti |
Product advantages:
1, easy installation, convenient valve installation, can withstand the axial thrust of the pipeline.
2. The product is made of metal casting or welding, the trapezoidal rubber sealing ring is selected for the loose sleeve part, and the elastic deformation principle of rubber compression is used under the action of gland and bolt. Force the sealing ring to be deformed between the outer wall of the telescopic pipe of the joint body for static sealing. The metal and sealing ring should be selected strictly according to the performance and user's requirement. External coating with high strength anticorrosive paint, all connection bolts are made of high strength carbon steel or stainless steel.
3, in the pipeline can effectively compensate and relieve the pipeline and blind plate thrust, and can facilitate the installation, maintenance and replacement of pumps, valves, it is the most ideal supporting products in the pipeline installation and transportation industry.
Product features:
The installation is simple and convenient, which is conducive to the disassembly and maintenance of pump valves.
Long service life and stable operation.
It can reverse the axial thrust of the pipeline to the whole pipeline to avoid local pressure.
