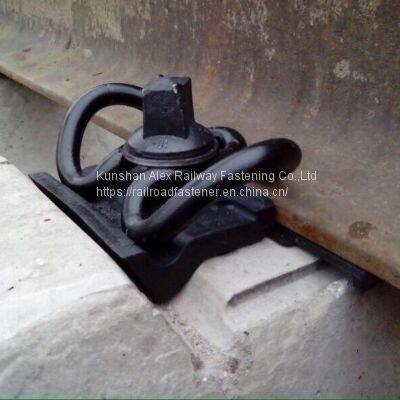

W14 rail fastening system
Technical Parameters for ONE unit of W14 Rail Clip fastening system
| No. | Arical name | Specification | Material | Weight | Surface finish | |
| 1 | SKL14 Rail clip | SKL14 | 60Si2CrA | 0.51Kg; | Plain oiled; | |
| 2 | Screw spike+Washer | Screw spike:SS35 24X161 Washer:25X25X3.5 | Screw spike:35# steel; Washer:Q235 ; | Screw spike:0.65Kg; Washer:0.045Kg; | Plain oiled; | |
| 3 | Screw dowel | 31x165 | Reinforced HDPE | 0.086Kg; | NA | |
| 4 | Rail insulator | As Per Dwg; | PA66+30%GF | 0.17Kg; | NA | |
| 5 | Rail pad | 199x158x6 | EVA | 0.18Kg; | NA | |
SKL14 TENSION CLIP: Dia.13mm
Ss35screw spike: M24*150MM,M24*160MM,M24*180MM, or length as ordered

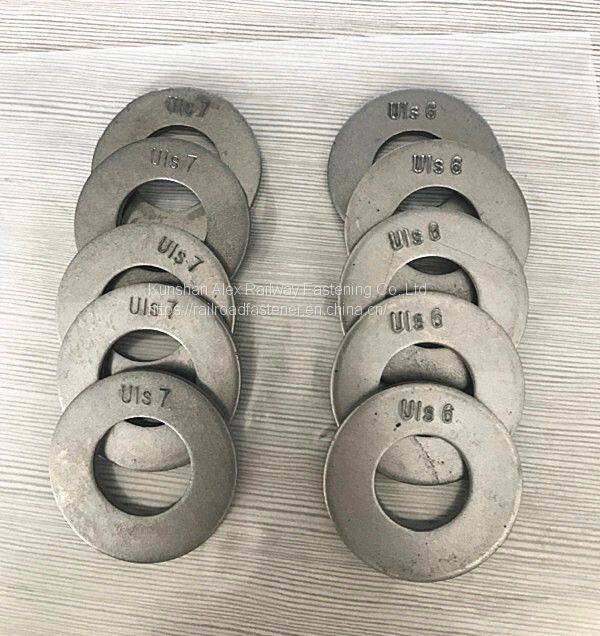

Plain washer: uls7
Plastic dowel: For different sizes of screw spike
Guide plate: UIC54,UIC60,50KG/60KG Rail, Other sizes as ordered

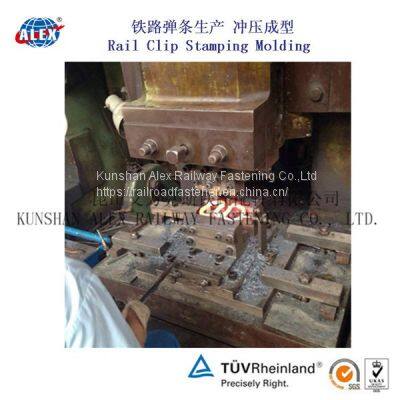

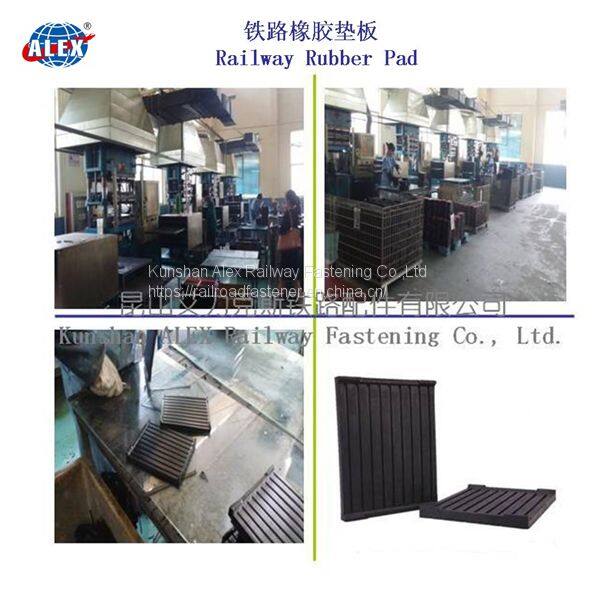

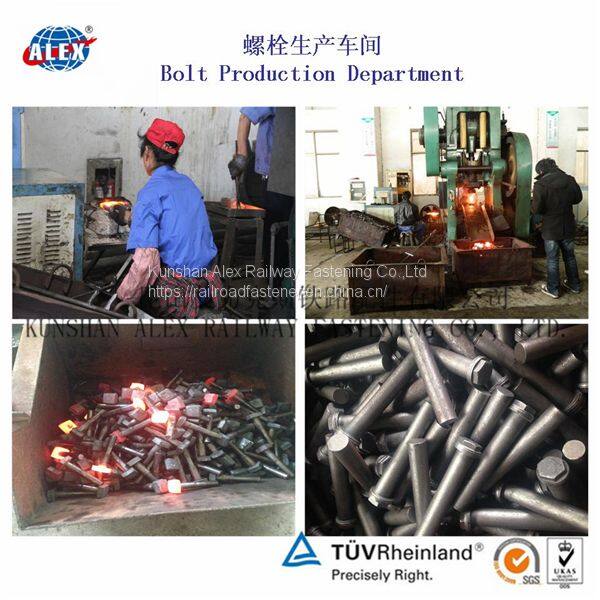

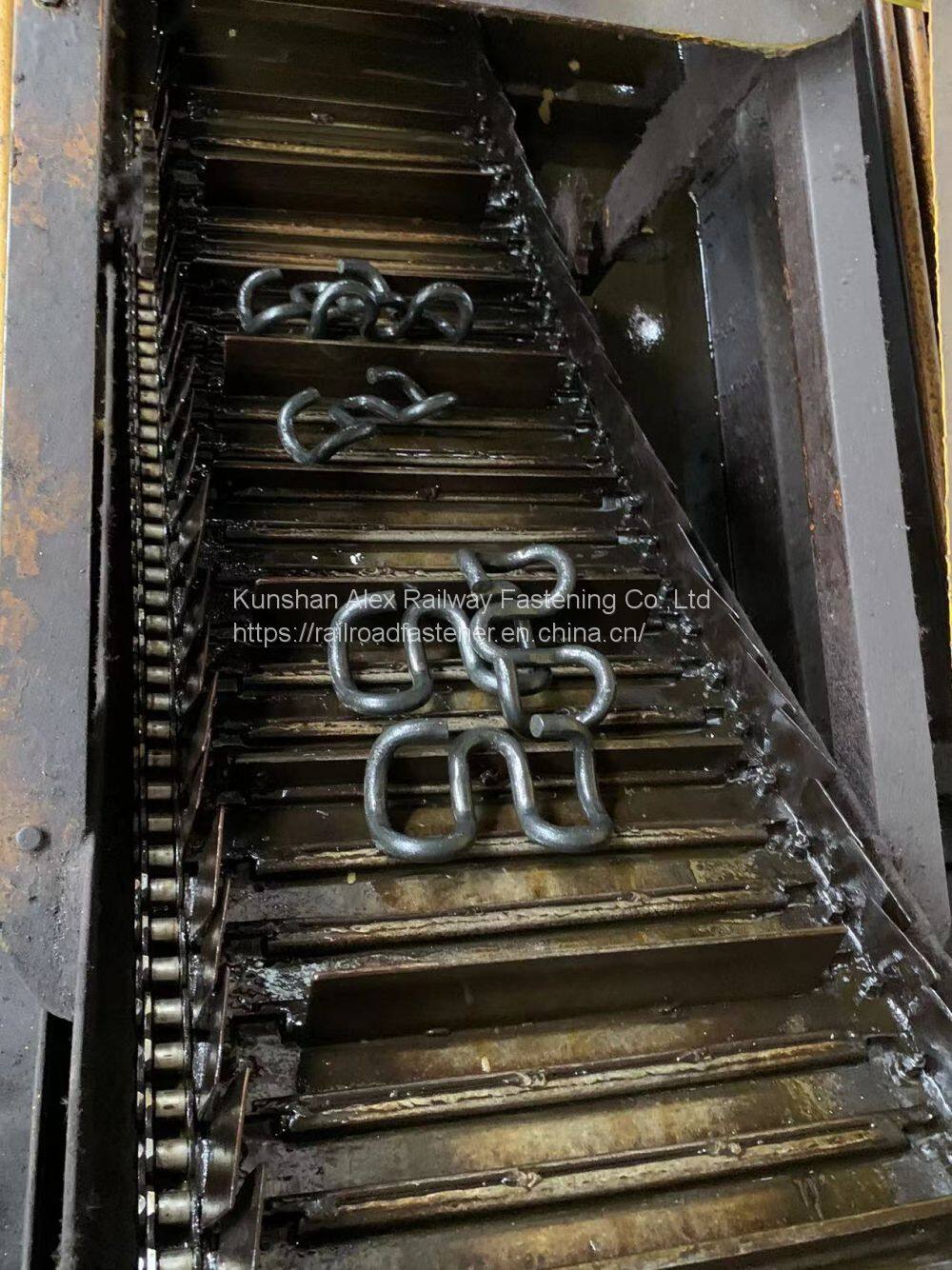

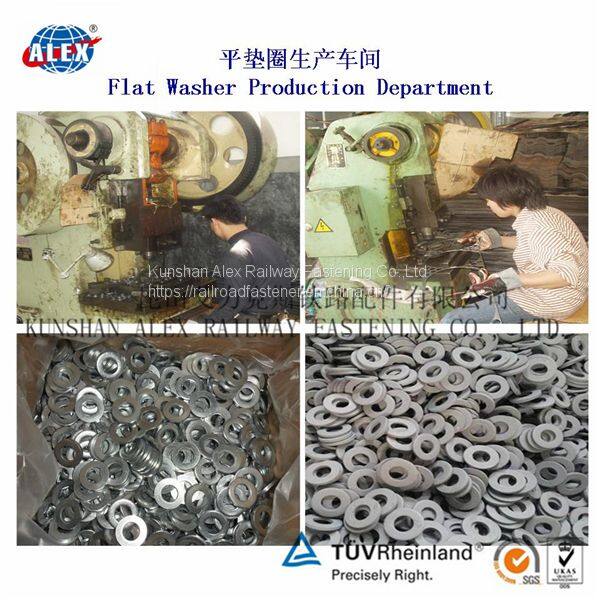

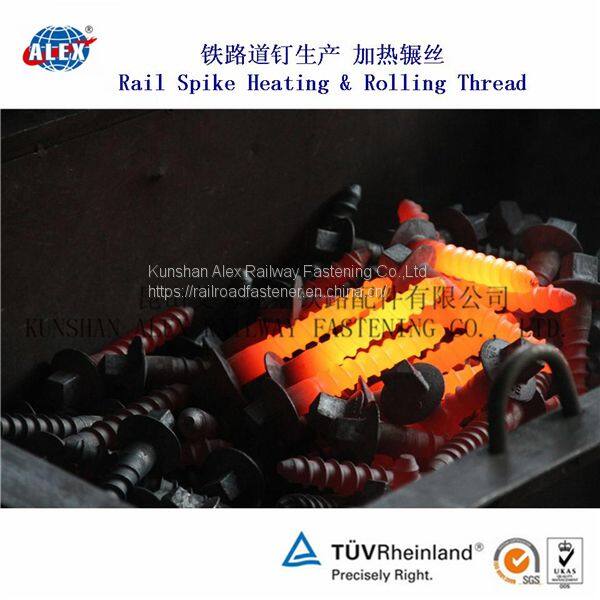

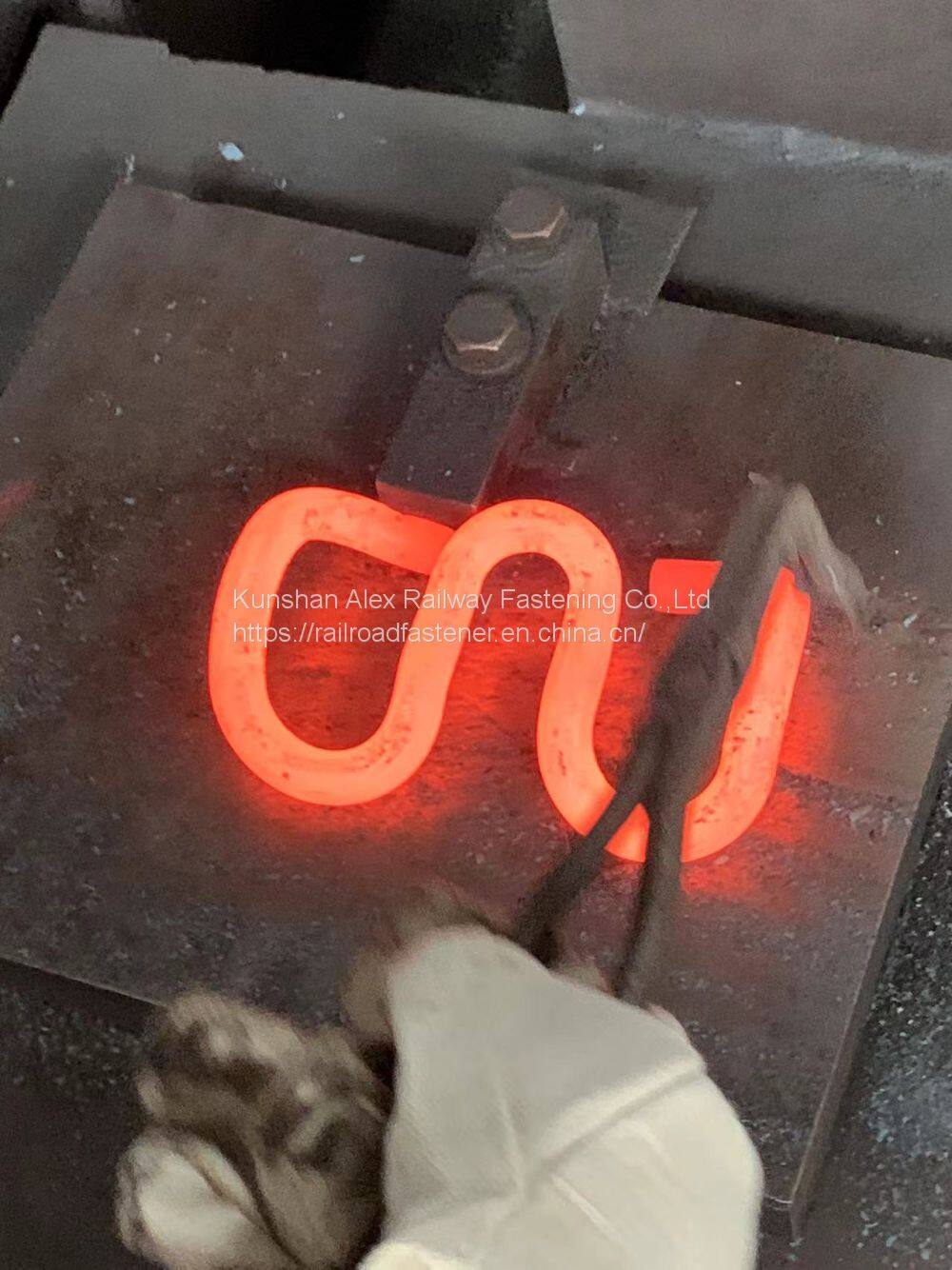

Production

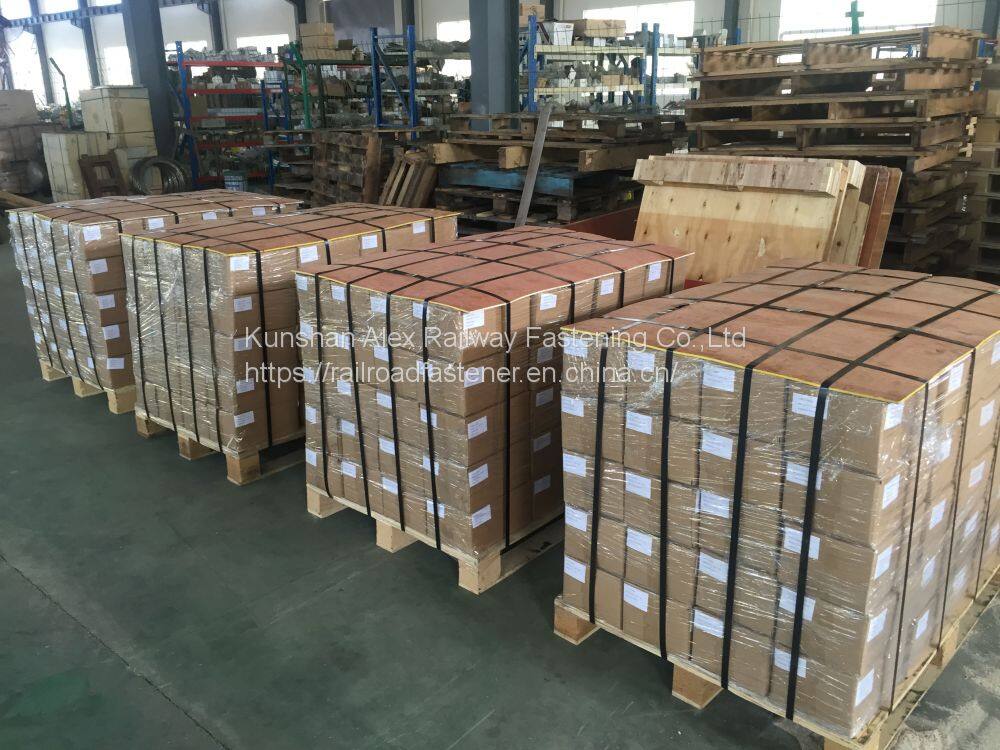

Packaging & Delivery
Packaging Details: Free packaging: waterproof double woven bag Plus the tray is regular packing
Charge for packing: wooden case iron or plastic drum was conducted according to customer's requirements

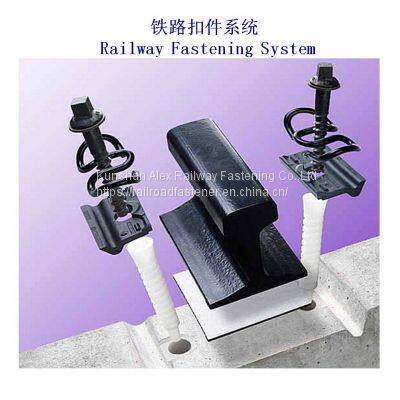

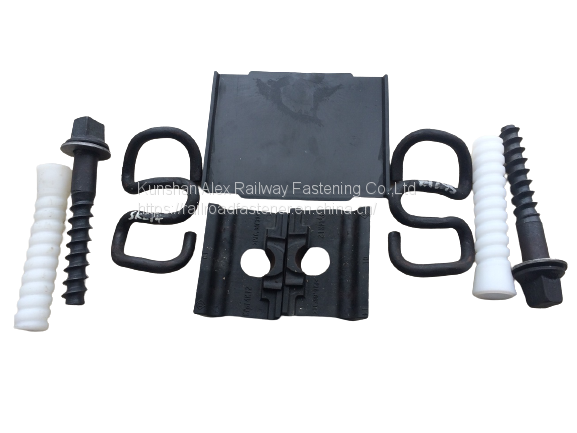

One set of W14 fastening system (used on 1 concrete sleeper) contains:
A) Tension clamp Skl14 -4 units;
B) Screw spike Ss 35/Uls 7 -4 units;
C) Angled Guide Plate Wfp-14K12 -4 units;
D) Plastic dowel -4 units;
E) Rail Pad Zw686a- 2 units;
F) Application: High-speed Lines
G) Customization: Available
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!
