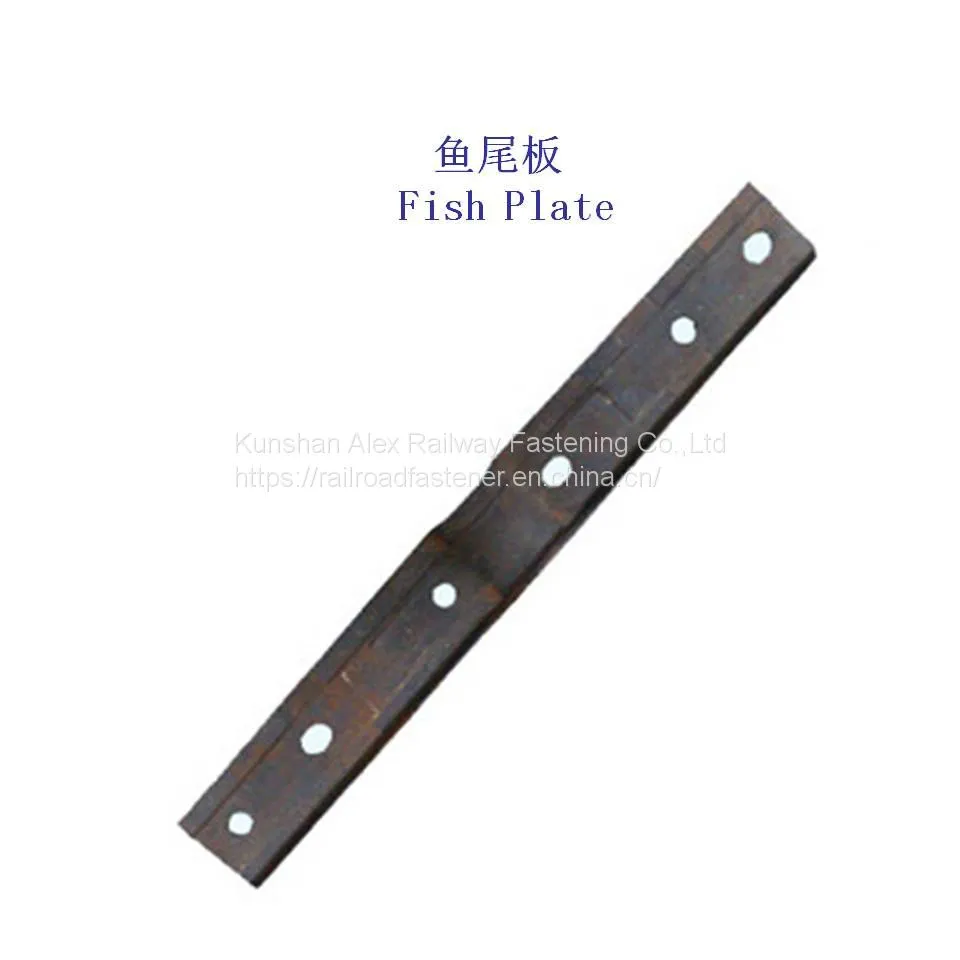

Rail Joints, other names are railway fish plate and splice bar, joint bar and angle bar. it is a metal joint bar functions by connecting the ends of two rails sectoins together with rail bolt.
Rail fish plate can increase the continuity and steadiness for track sections when the train is passing through by largely reduce the impact of wheels to the jointing sections of the rail tracks. This rail connectiong component is a key part for railroad transportation safety insurance.
Main Types for Fish Plates
Normal type:
We offer 4 holed or 6 holed fish plate to suit 60 kg, UIC, 54 kg UIC, 52 kg UIC, 52 kg, 90A, 90R, 80A, 80'O', 88'O', 75R, 60R, 115 RE, 132 RE, 50R rails, etc.

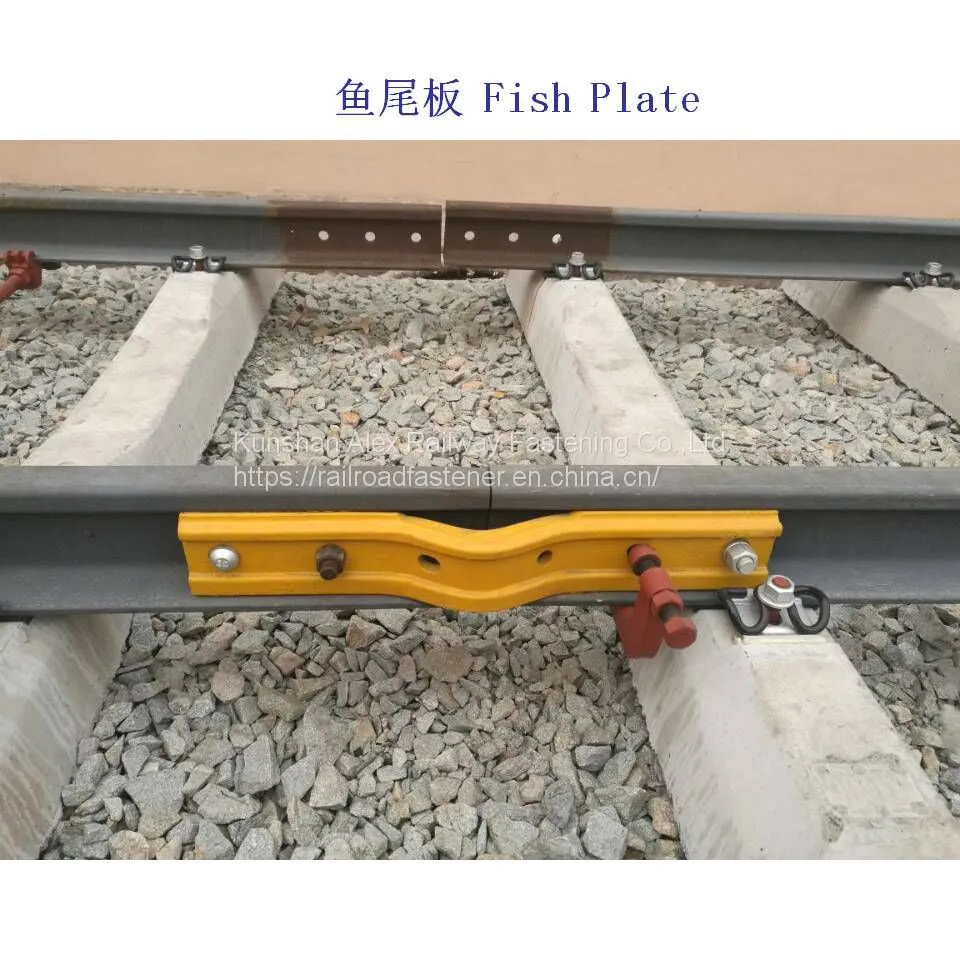

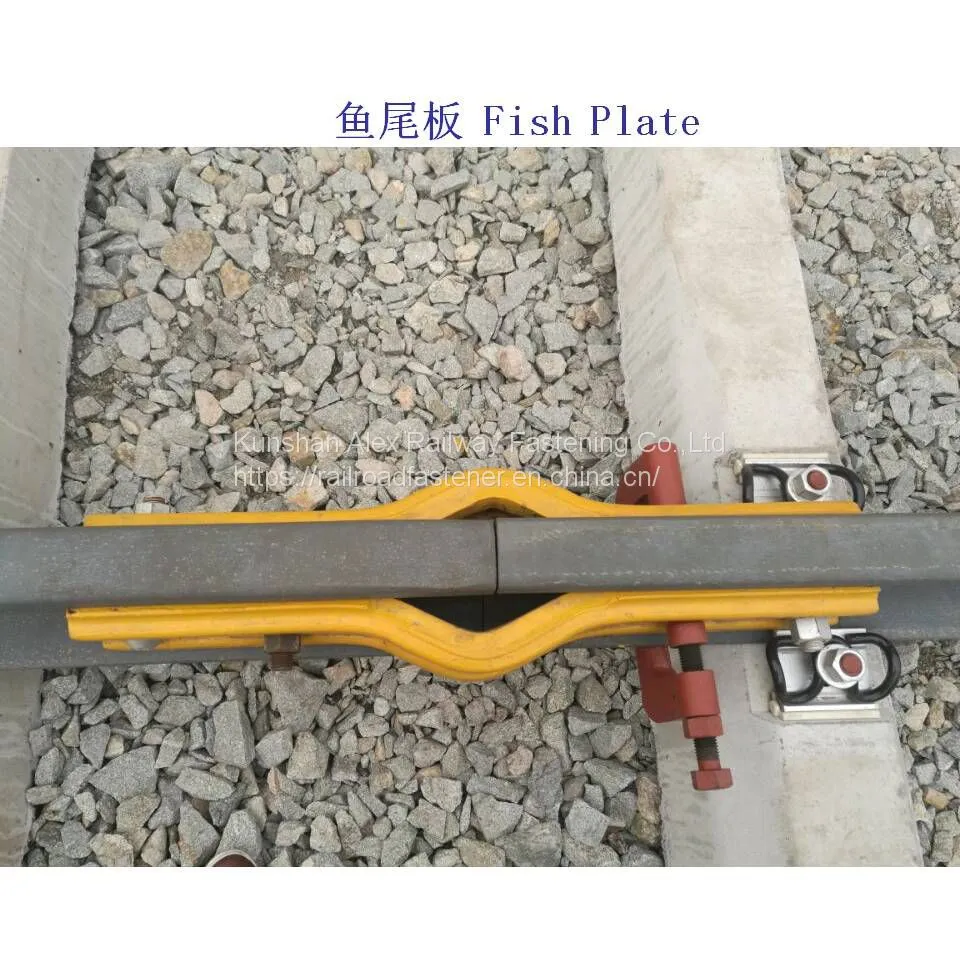

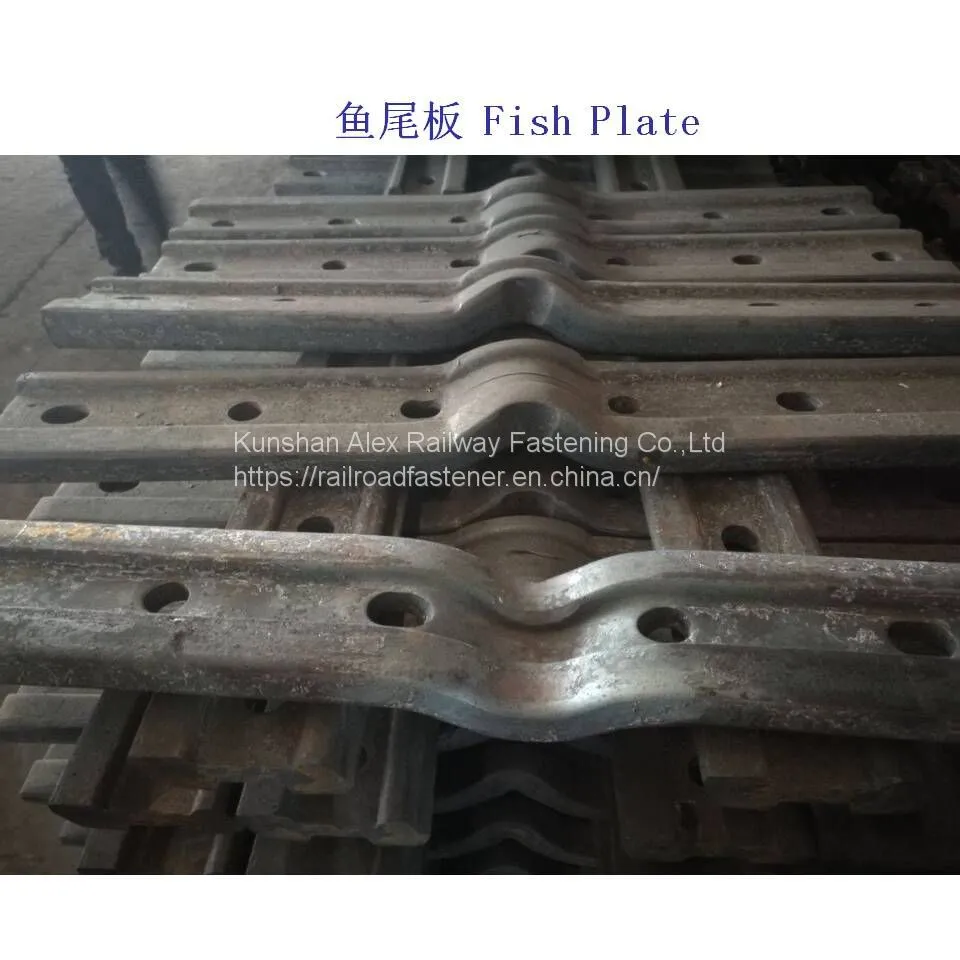

Joggled Fish Plate
This type is a specially forged fish plate. It is suitable for the temporary repair of cracked welded rail joints with clamp assembly to suit various rail sections. Used as an emergency clamp, joggled fish plate enables quick and temporary repair, allowing continued movements through the section at a reduced line speed.
Kunshan Alex production capablity can meet your urgent order with in short times.
Kunshan Alex Railway Fastening Co.,Ltd has more than 20 years of technology in manufacturing rail fish plate in almost all standards, and we have exported all types of fish plate for various applications, quality has been tested and approved by South American, European and Southeast Asian markets and in China mainland. We have the capability to manufacture all types of rail fish plate to suit all types of rail sections, such as UIC 60, UIC 54, U33, BS 80A, BS 90A, IRS 52 KG, IRS 90 Lbs, 115 RE, 136 RE, TJ 45, TJ 37, RN 45, etc.
Supplying fish plate according to international standards such as BS, ASTM and DIN, and others. We have equipment for rolling, forging, machining, and drilling and punching to customize rail fish plate size for drawings supplied by customer.
