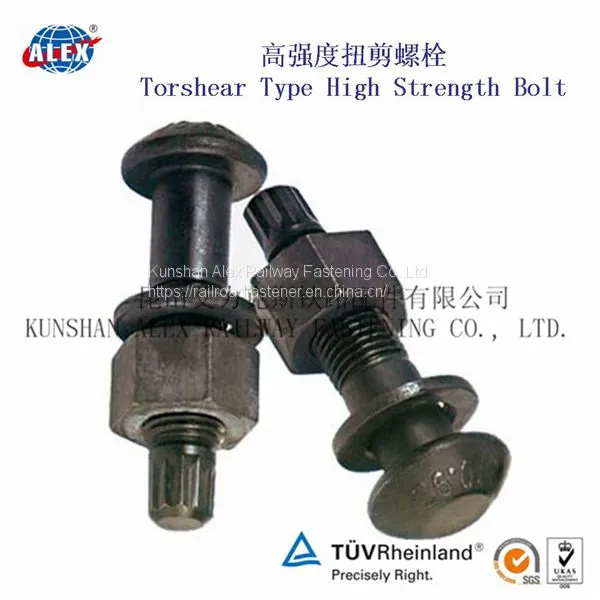

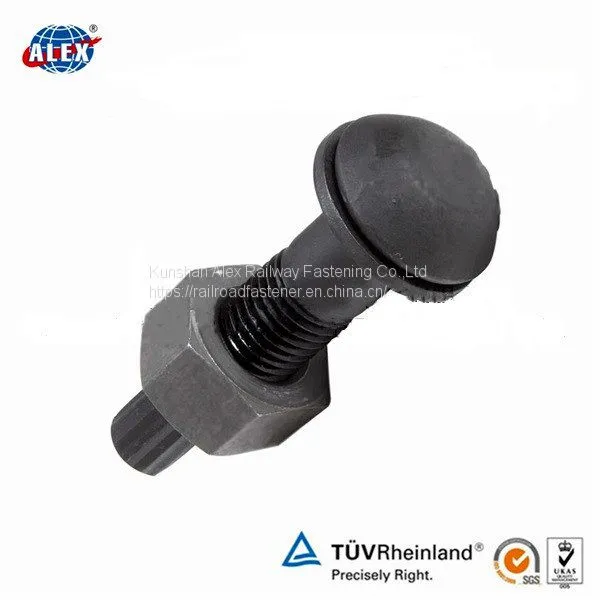

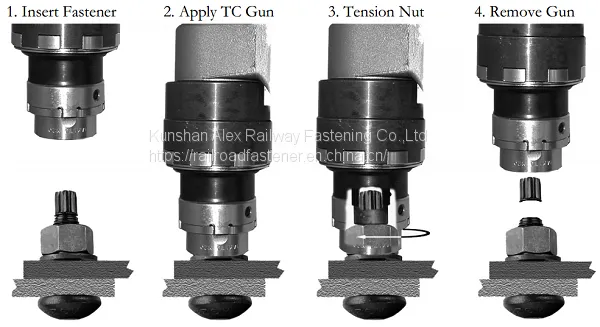

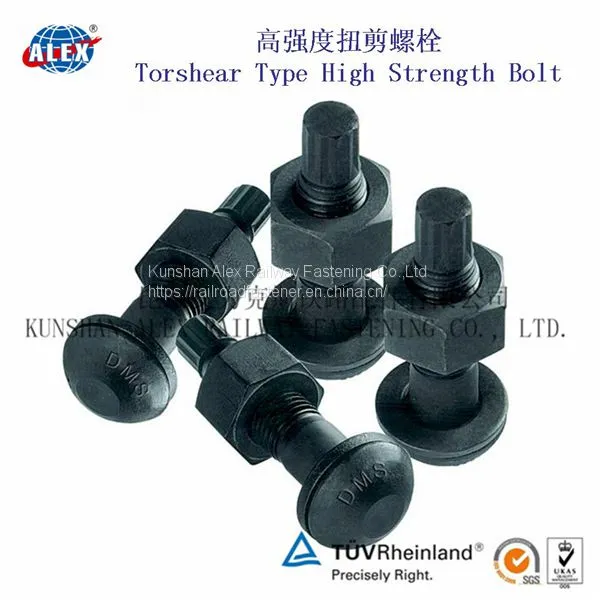

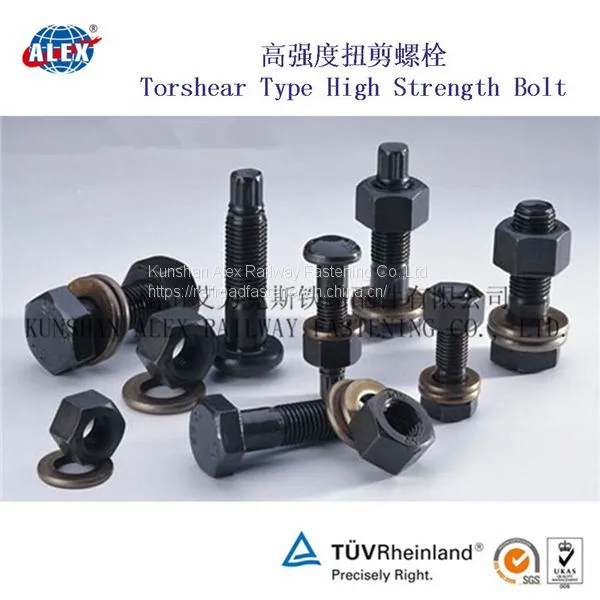

Torshear high strength bolt,also called Tension Control Bolts ,TC bolt, twist-off bolt, is a type of high-grade bolt that can be preloaded by a tighting process that is carried out entirely at the threaded end.(i.e. at the nut or spline end) of the bolt. Consequently, TCB's are usually distinguished by their round heads(rather than hexagonal heads) and splines. It is applicated in different areas.
Product Specifications: M16-M30
Bolt length allowance to be added to grip length.
Material: 20MnTiB
Implementation of standards: GB,DIN, AISI, ASTM, SAE, etc.
Surface treatment: Black / Phosphating/Plain Oiled/ Zinc Plated/Hot Dip Galvanized/Dacro coating
Performance level: 10.9
Rockwell Hardness: 33-38
We manufacture different lengths according to customer requirements.
Sample: Free
Packing: Less than 25KG per double layer woven bags on fumigation free pallet
MOQ: 5000 Piece/Pieces
Supply ability: 2000 Ton/Tons per Month
Delivery: within 20-30 working days
Why choose us
01 We are a professional ,manufacturer of rail dogscrew, with more than 10years experiences of making kinds of railroad spikes, we can meet your customized requirements in details.
02 We have workshop, do every step from purchasing material to shipment all by our team, so our prices are the most competitive under same quality.
03 Our lead time can be adjust to match your different schedule of different products. Normally 20-30 days is available in producing, inspection, and packing.
04 We care about the safety of using our products, with all our workers and technicians working together, it is guaranteed that our railway products reach the international standards, such as AREMA,GB, BS, UIC, DIN, etc.
Quality Control
Kunshan Alex Railway Fastening Co., Ltd. is an ISO 9001/2008 certified company. All processes are in accordance with the requirements of the ISO quality management system. From raw material to the finished products, we operate in accordance with standard procedures. We have strict quality control systems for suppliers:
1. Strictly inspection and testing of raw materials
2. Regularly organize quality control coordination meetings with semi-product suppliers to provide technical support.
3.Both sampling and batch testing will be taken while producing to make sure products 100% qualified before shipment.
4.Necessary destructive testing for some products，for example :torshear bolt screws, brake shoe, etc.
Certificate:
Other Certificates available on request.

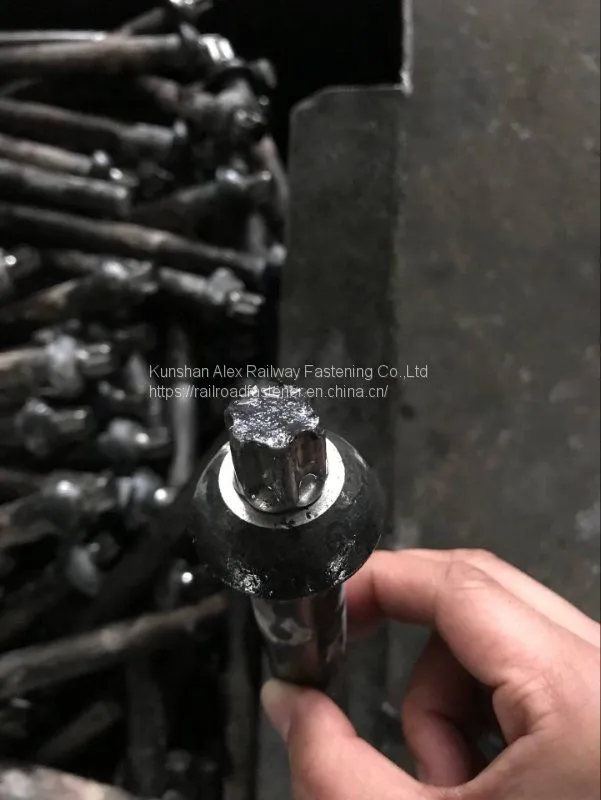

Workshop shown:

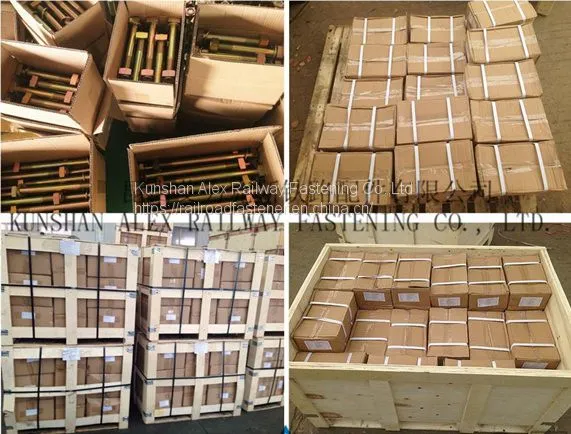

Packing for Track Tension Control Bolts
FAQ
Q: Are you manufacturer or trader?
A:We are manufacturer and trader, company located in Kunshan ,Jiangsu Province, China, about 2 hours take taxi from Shanghai airport.
Q: Do you provide samples?
A:Yes, we offer sample for approval before each order.
Q: What's your payment term?
A: 30% deposit by T/T , balance against B/L copy, Payment term is negotiable based on different order products and quantity.
Q: How long is your delivery time?
A: Generally 20-30 working days after receiving deposit or the original L/C. Could be re-schedule under really urgent case.
Q:Can we visit your factory?
A:Of course, you're warmly welcomed. Once we have your schedule, we can arrange everything in advance.
