Description

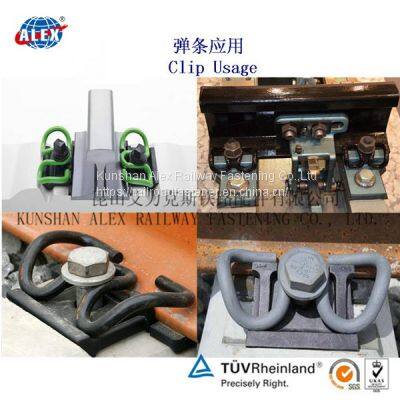

Rail elastic clip is one of the popular fastening parts to keep rail track fixed on rail sleepers(wooden sleeper and concrete sleeper). Rail clamps are also used in some rail fastening systems.
Kunshan Alex railway supplies elastic rail clips with high precision, high tensile strength and corrosion resistance, which are used widely in railway projects all over the world.
Vossloh SKL Clip Specification:| Model | SKL 1 Rail Clamp | SKL 3 Rail Clamp | SKL 12 Rail Clamp | SKL 14 Rail Clamp |
|---|---|---|---|---|
| Spec. | ø13 | ø13 | ø13 | ø14 |
| Hardness | 42-47HRC | 42-47HRC | 42-47HRC | 42-47HRC |
SKL3 Clip Specification:
| Materials | 60Si2Cr, 55SiMn, 38Si7 |
| Hardness | HRC 42-47 |

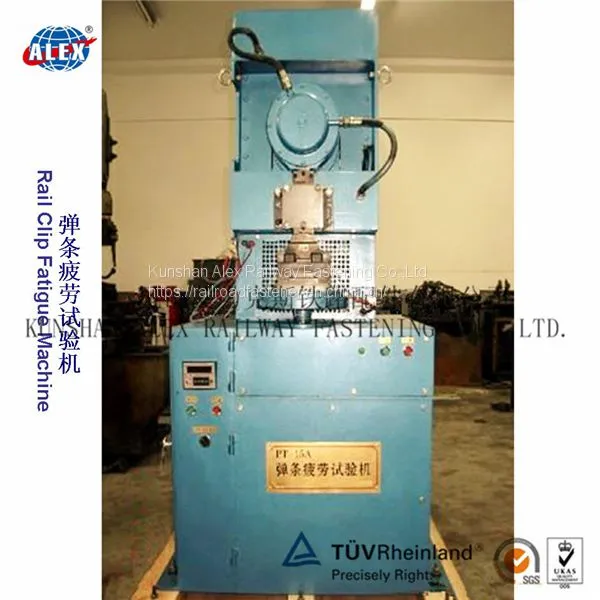

| Fatigue life | 3-5 million cycles |
| Surface | Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro |
Spec | ø13 |
MOQ: 5000 Piece/Pieces
Supply ability: 1000 Ton/Tons per Month
Delivery: within 20 working days

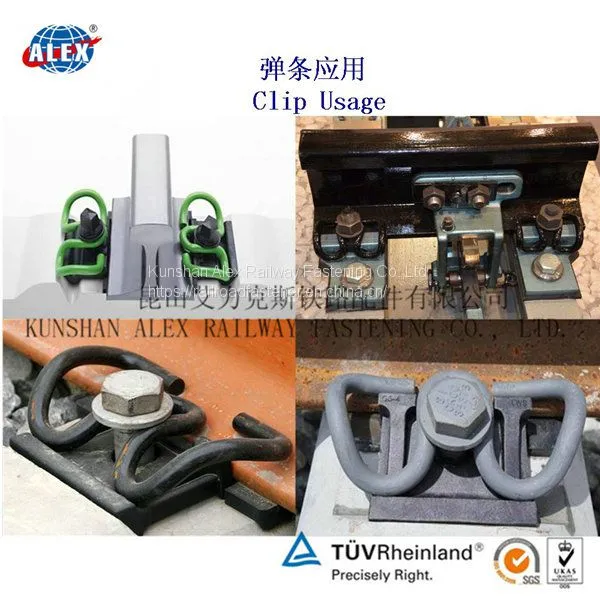

Usage:
E-type Clip: E1609, E1809, E1813, E2001, E2039, E1817, E2006, E2007, E2009, E2055, E2056, E2063, E2091.
SKL Tension clips: SKL1, SKL3, SKL12, SKL14, SKL75
PR Series Clips: PR85, PR309A, PR401, PR415, PR401A
Other Rail Clips: Nabla clips, D type rail clip, Fast clip, gauge lock clip, Deenik clip
Non standard rail clips: You provide Rail Clips drawings and we will produce for your customized requirements.
Elastic rail clips are made of high quality spring steel bar. Spring steel is used in the manufacture of springs and other elastic parts prominently in automotive and industrial suspension applications. These steels are generally low-alloy Manganese, medium-carbon steel or high-carbon steel with a very high yield strength. Spring steel has excellent comprehensive performance like mechanical properties, performance by the bullet-proof, fatigue, hardenability, physical and chemical properties. The raw materials of elastic rail clip mostly include 55 Si7, 60 Si7, 65 Si7, 55 Si Cr7, 60Si2MnA, 60Si2CrA, 55Si2Mn, and 38Si7 grade of spring steel.
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!
