Product Description

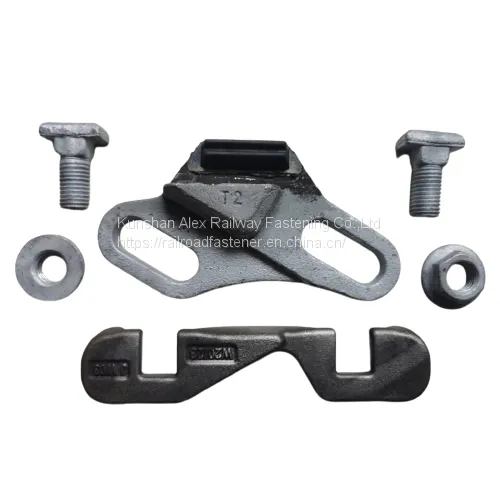

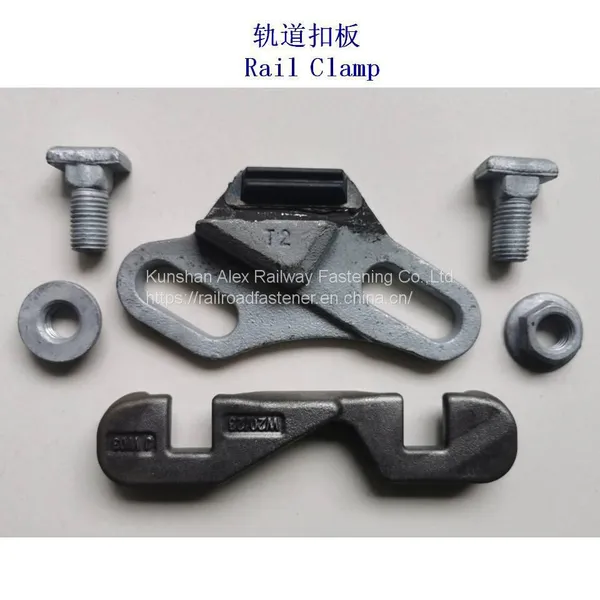

Type :W20/CJ ; W20/AI ;
Material : Upper component: ductile cast iron ; vulcanize-bonded rubber nose.
Finish: The bolts and nuts are hot dip galvanized.

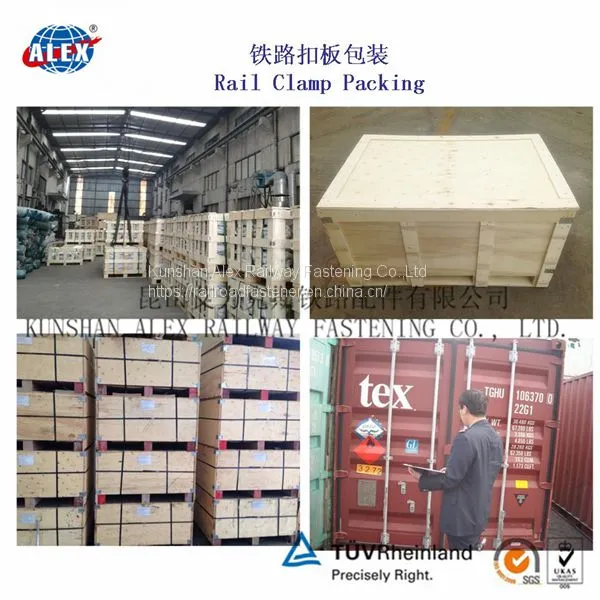

packing:Wooden boxes or sacks and wooden pallets. On average, 25kgs per package.
Application: Railway, crane or Industrial fastening

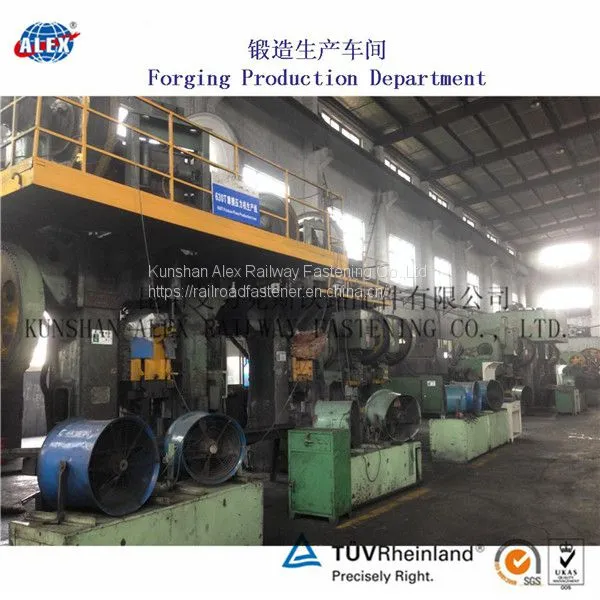

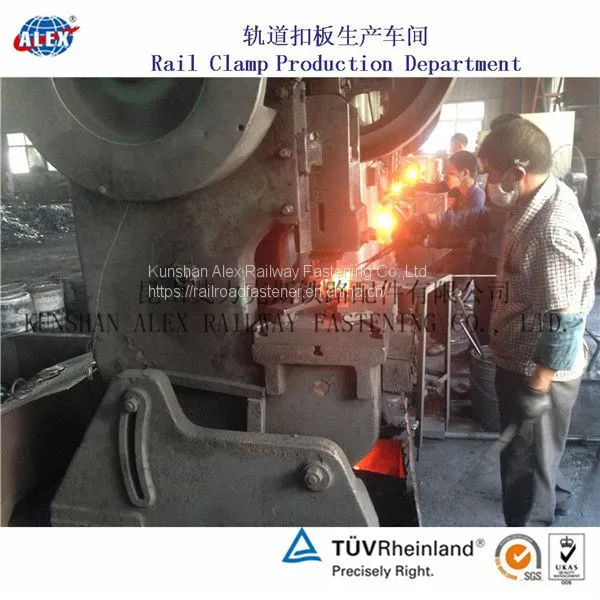

Manufacturing style: Casting or forging

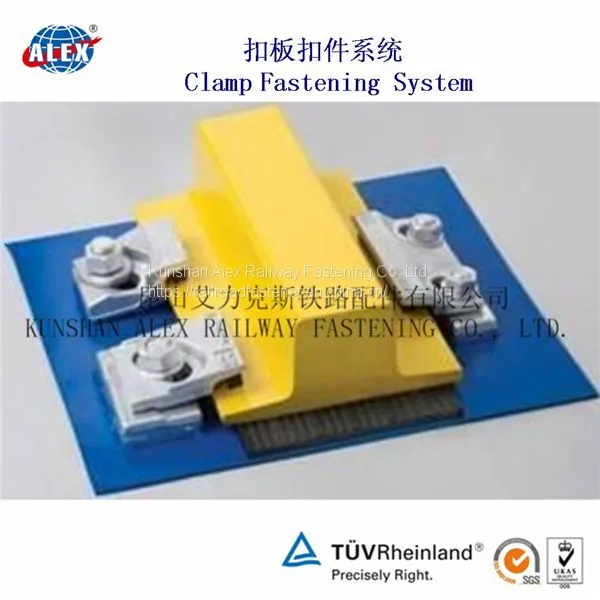

The lower component is welded on the support parallel to the axis of the rail and the upper component is fastened to it by means of the two bolts and nuts. The recommended torque is 200 Nm. Electrical and pneumatic torque wrenches are allowed as long as the minimum torque of 150 Nm is met and the torque does not exceed 250 Nm. It is recommended the torque is regularly controlled with a calibrated torque wrench. For most applications, the recommended weld throat size is 5 mm; the weld leg size is then 7 mm.
If the pad is not used, the weld along the foot of the rail must be removed. Use any low hydrogen rod suitable for use with structural steel: ISO2560 type E 42 5 B 32 H5, E7018 or equivalent. For full instructions on weld size and electrodes, refer to the data sheet “Installation and suggested weld instructions”.
Do not apply protective coating on the contact surface between upper and lower components. Do not use solvents as they may seriously damage the rubber nose.

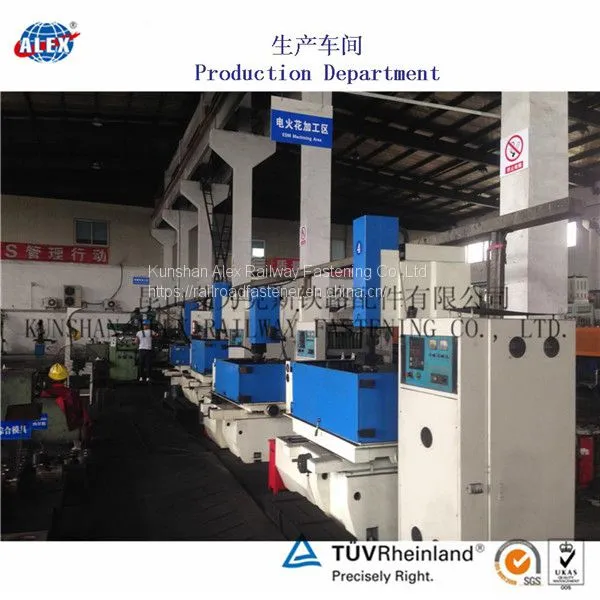

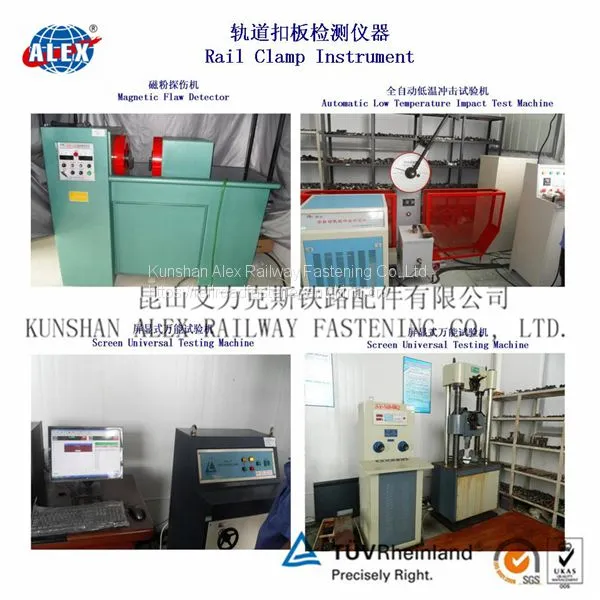

Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
We are trying to supply the best products at the best price!
