Description
Rail elastic clip is one of the popular fastening parts to keep rail track fixed on rail sleepers(wooden sleeper and concrete sleeper). The Vossloh clip fastening system or called SKL fastening system is very widely used in heavy haul, high speed or standard track. As a professional rail fastener manufacturer, Kunshan Alex Railway fastening Co.,Ltd is dedicated in manufacturing and supplying various types of SKL fastening systems, rail fasteners and standard railroad components. According to SKL rail fastening standard, we can provide SKL1, SKL3, SKL12 and SKL14 type clip fastening system, among them, SKL14 or w14 rail fastening system is the most widely used type.
Kunshan Alex railway supplies elastic rail clips with high precision, high tensile strength and corrosion resistance, which are used widely in railway projects all over the world.
Vossloh SKL Clip Specification:
| Model | SKL 1 Rail Clamp | SKL 3 Rail Clamp | SKL 12 Rail Clamp | SKL 14 Rail Clamp |
|---|---|---|---|---|
| Spec. | ø13 | ø13 | ø13 | ø13 |
| Hardness | 42-47HRC | 44-48HRC | 44-48HRC | 44-48HRC |
SKL14 Clip Specification:
| Materials | 60Si2MnA |
| Hardness | HRC 44-48 |
| Fatigue life | 3-5 million cycles |
| Surface | Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro |
Spec |
ø13 |
Usage:

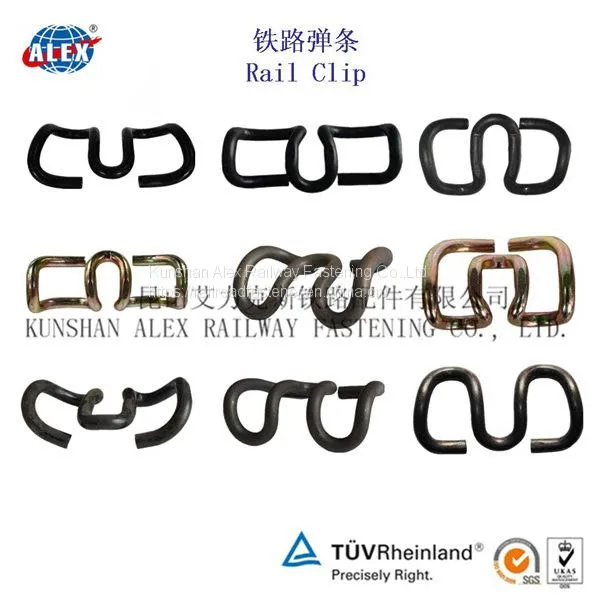

We can aslo produce other rail clip types:
E-type Clip: E1609, E1809, E1813, E2001, E2039, E1817, E2006, E2007, E2009, E2055, E2056, E2063, E2091.
SKL Tension clips: SKL1, SKL3, SKL12, SKL14, SKL75
PR Series Clips: PR85, PR309A, PR401, PR415, PR401A
Other Rail Clips: Nabla clips, D type rail clip, Fast clip, gauge lock clip, Deenik clip
Non standard rail clips: You provide Rail Clips drawings and we will produce for your customized requirements.
Raw Material for Elastic Rail Clip
Elastic rail clips are made of high quality spring steel bar. Spring steel is used in the manufacture of springs and other elastic parts prominently in automotive and industrial suspension applications. These steels are generally low-alloy Manganese, medium-carbon steel or high-carbon steel with a very high yield strength. Spring steel has excellent comprehensive performance like mechanical properties, performance by the bullet-proof, fatigue, hardenability, physical and chemical properties. The raw materials of elastic rail clip mostly include 55 Si7, 60 Si7, 65 Si7, 55 Si Cr7, 60Si2MnA, 60Si2CrA, 55Si2Mn, and 38Si7 grade of spring steel.
Certificate:
Other Certificates available on request.
Workshop shown:
Quality Control
Kunshan Alex Railway Fastening Co., Ltd. is an ISO 9001/2008 certified company. All processes are in accordance with the requirements of the ISO quality management system. From raw material to the finished products, we operate in accordance with standard procedures. We have strict quality control systems for suppliers:
1. Strictly inspection and testing of raw materials.
2. Regularly organize quality control coordination meetings with semi-product suppliers to provide technical support.
3.Both sampling and batch testing will be taken while producing to make sure products 100% qualified before shipment.

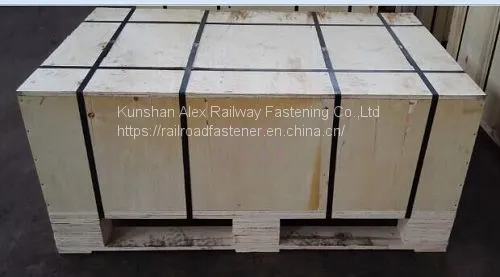

Packing for SKL14 Rail Clips
1. Woven bags +plywood pallet
2. Woven bags in wooden crate
3. Fumigation-free wooden case
4. Other ways as per client's requirement
FAQ
Q: Are you manufacturer or trader?
A:We are manufacturer and trader, company located in Kunshan ,Jiangsu Province, China, about 2 hours take taxi from Shanghai airport.
Q: Do you provide samples?
A:Yes, we offer sample for approval before each order.
Q: What's your payment term?
A: 30% deposit by T/T , balance against B/L copy, Payment term is negotiable based on different order products and quantity.
Q: How long is your delivery time?
A: Generally 20-30 working days after receiving deposit or the original L/C. Could be re-schedule under really urgent case.
Q:Can we visit your factory?
A:Of course, you're warmly welcomed. Once we have your schedule, we can arrange everything in advance.
Contact details:
If you have any other questions, pls feel free to contact us as below:
Company name: Kunshan Alex Railway Fastening Co., Ltd.
Address: No.1255 Chengbei Road, Yushan town, Kunshan City, Jiangsu Province, China.
Tel: 0086 512-83639017
Fax: 0086 512- 83639019
