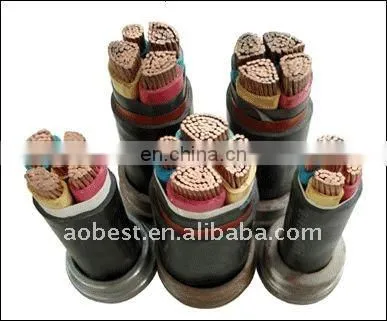

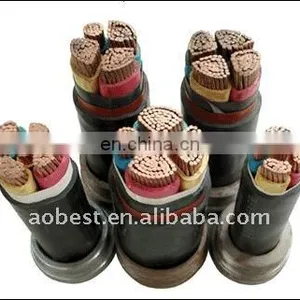

0.6/1KV LSF LV Power & Control Cables
Power Cable Application properties:
1. Long term permissible working temperature of cable conductive core is not more than 70.
2. During short circuit (maximum permanent time is not more than 5 seconds) temperature of cable conductor is not more than 165.
3. The difference level of lay-up cable is not restricted. When laying the cable, ambient temperature of laying is not low than 0.
4. This PVC power cable have a good chemical stability, acid resistance, alkali resistance, salt resistance, oil resistance, solvent resistance and flame retardant properties.
5. Light weight, good bending properties and easy to install and maintenance.
6. 0.6/1--3.6/6kV Cu/PVC/PVC BS 6346 600/1000--1900/3300V
Detailed Product Description:
We can produce PVC power cable with special requirement and higher properties according to the equirements of clients.
Type, name and usage Cable Rated Voltage: 0.6/1kV low voltage
Type |
Name |
Usage |
VV |
PVC insulated PVC sheathed power cable |
Can be laid at indoor, tunnel and tube .Cable cannot under take mechanism outside force |
VLV | ||
VY |
PVC insulated and PE sheathed power cable |
Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force |
VLY | ||
VV22 |
PVC insulated steel belt armored and PVC sheathed power cable |
Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force |
VLV22 | ||
VV23 |
PVC insulated steel belt armored and PE sheathed power cable |
Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force |
VLV23 | ||
VV32 |
PVC insulated fine steel wire armored PVC sheathed power cable |
Can be laid at indoor, underground and mining well .Cable can undertake mechanism outside force |
VLV32 | ||
VV33 |
PVC insulated fine steel wire armored PE sheathed power cable |
Can be laid at indoor, underground .Cable can under take mechanism outside force |
VLV33 | ||
VV42 |
PVC insulated thick steel wire armored PE sheathed power cable |
Can be laid at indoor, underground,mining well .Cable can under take mechanism outside force |
VLV42 | ||
|
VV43 VLV43 |
PVC insulated fine steel wire armored PVC sheathed power cable |
Can be laid at indoor, underground ,mining well and the places of be terrible polluted. Cable can under take mechanism outside force |
