Electrical Materials EI/AIW-200 AWG/SWG Gauge Aluminium Enameled Round Wire Magnet Wire With UL Certification Thailand

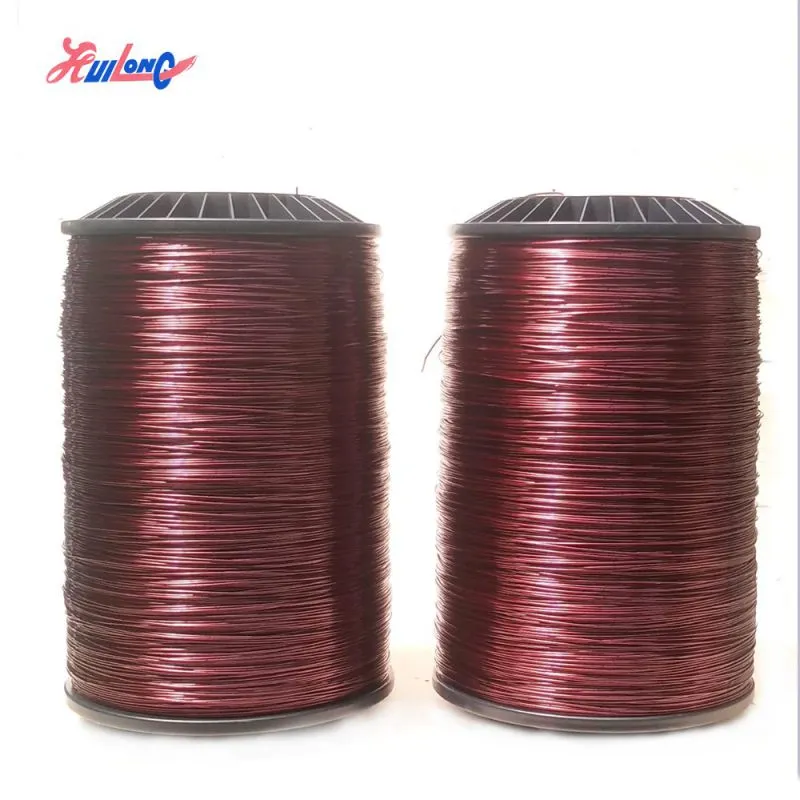

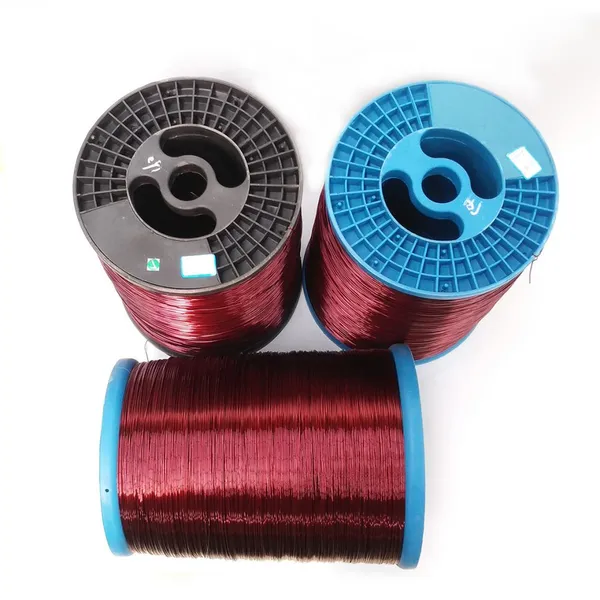

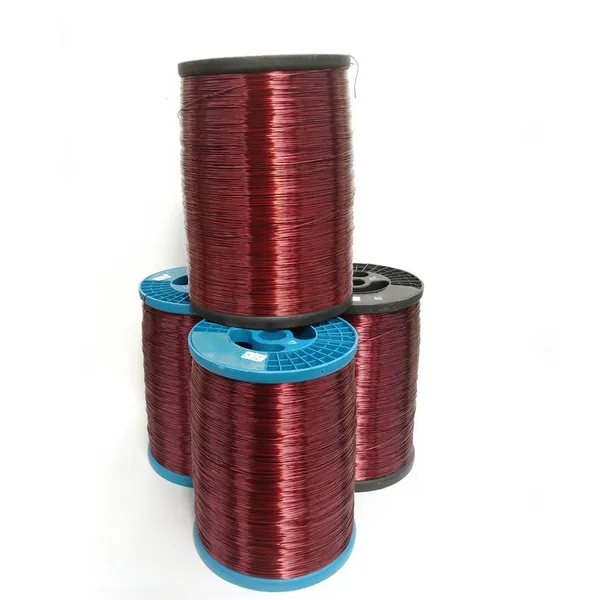

Electrical Materials EI/AIW-200 AWG/SWG Gauge Aluminium Enameled Round Wire Magnet Wire With UL Certification Thailand photo-1
Electrical Materials EI/AIW-200 AWG/SWG Gauge Aluminium Enameled Round Wire Magnet Wire With UL Certification Thailand photo-2
Electrical Materials EI/AIW-200 AWG/SWG Gauge Aluminium Enameled Round Wire Magnet Wire With UL Certification Thailand photo-3
Electrical Materials EI/AIW-200 AWG/SWG Gauge Aluminium Enameled Round Wire Magnet Wire With UL Certification Thailand photo-4
Electrical Materials EI/AIW-200 AWG/SWG Gauge Aluminium Enameled Round Wire Magnet Wire With UL Certification Thailand photo-5

Product Spotlights

High temperature High voltage good electric conductivity good insulation
US$ 4.20 500 - 4999 Kilograms
US$ 4.16 ≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Certification:
ISO9001, ROHS
Application:
Heating
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
20 days
Type Insulated
Certification ISO9001, ROHS
Application Heating
Insulation Material Enameled
Conductor Material Aluminum
Conductor Type Solid
Sheath Material Other, ENAMEL
Material Shape Round Wire
Range of Application Other, motor
Model Number Q(ZY/XY)-200
Brand Name YONGDONG
Place of Origin Shandong, China(Mainland)
Diameter: AWG/SWG
Style: Enameled Aluminum Wire
Shape: Round
Heat-resisting class: C class
Insulation Material: polyester-imide, Polyamide imide
Production Range: 0.20mm-5.00mm
Certification: ISO ROHS REACH UL
Bobbin: PT25 PT30 PT60 PT200 PT270
Standard IEC NEMA GB JIS
Conductor Aluminum
Transport Package Cartons and pallets
Specification 0.20-6.0mm
Origin Dezhou China

Product Description


Round Wire Diameter:  0.2mm-5.00mm   (4awg-32awg/6swg-35swg) Magnetic wire swg

Product Name:  200 class   enameled aluminum wire for transformer cleaning machine

SWG AWG Gauge Class 130-220 Enameled Aluminum Round Wire Price for Rewinding of Motors



Product Paramenters

Product Name

QZ(G)-155

QZ-180

Q(ZY/XY)-200

Q(ZY/XY)-220

Thermal Class

155, class F

180, class H

200, class C

220, class N

Coating Material

PEW(G)

EIW

EI/AIW

EI/AIW

Cross Section Range (mm)

0.20-5.00

0.20-5.00

0.20-5.00

0.20-5.00

Insulation Thickness (IEC)

Grade 1

Grade 2

Grade 3

Grade 1

Grade 2

Grade 3

Grade 1
Grade 2
Grade 3

Grade 1
Grade 2
Grade 3

Standard

GB/T6109.2

GB/T23312.4

IEC60317-3


GB/T6109.5

GB/T23312.5

IEC60317-8

NW30

GB/T6109.20

GB/T23312.7

IEC60317-13

NW35



GB/T6109.22

IEC60317-46

NW16

PT200 spool

410*410*660  mm        65-75KG

410*410*660  mm            65-75KG

410*410*660  mm            65-75KG

410*410*660   mm                65-75KG
